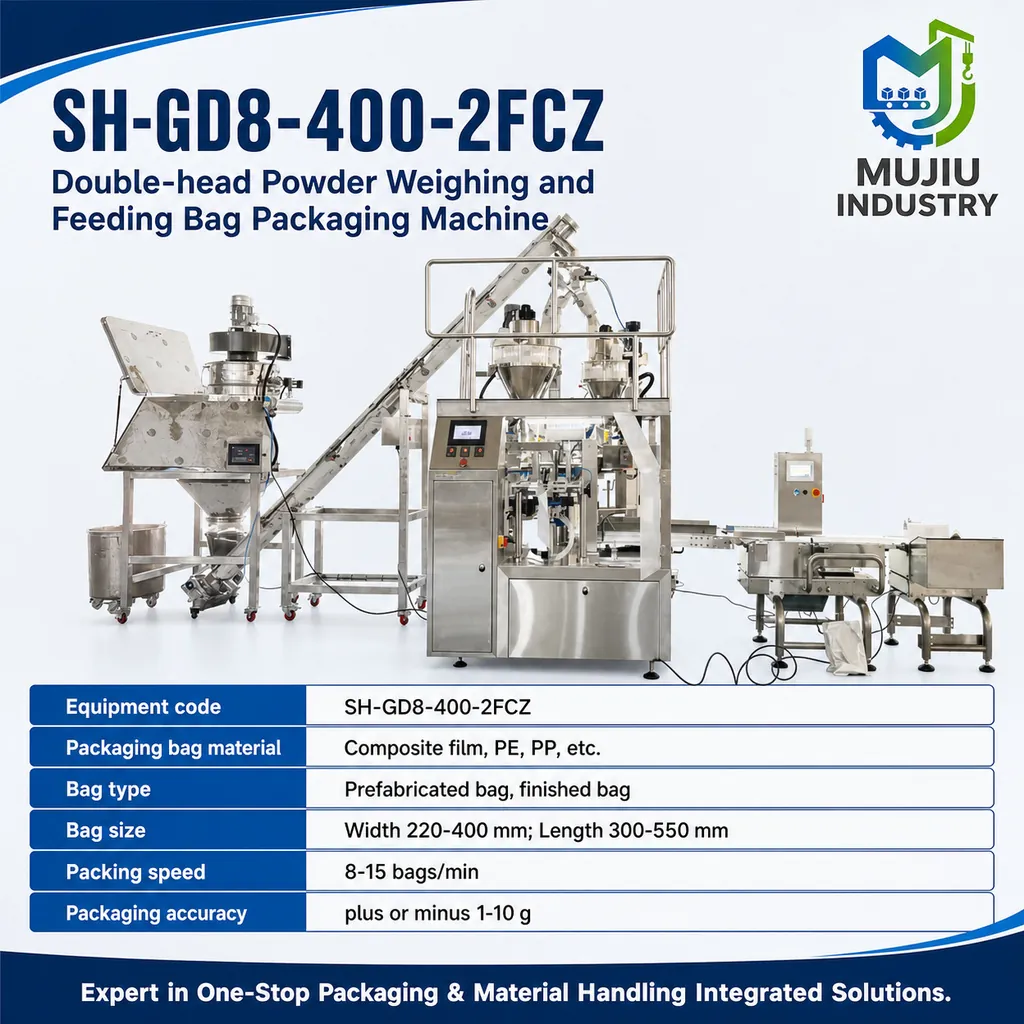

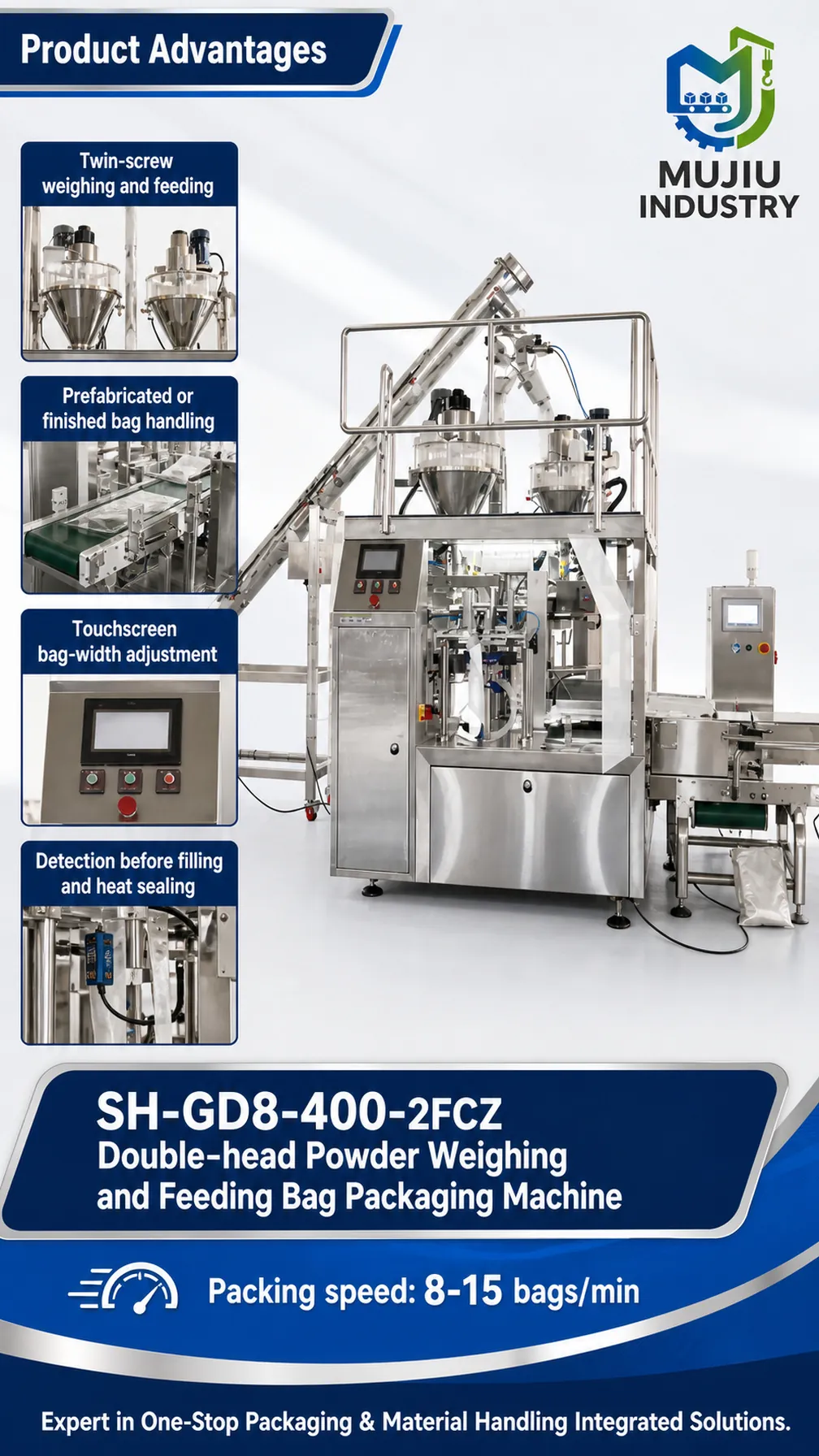

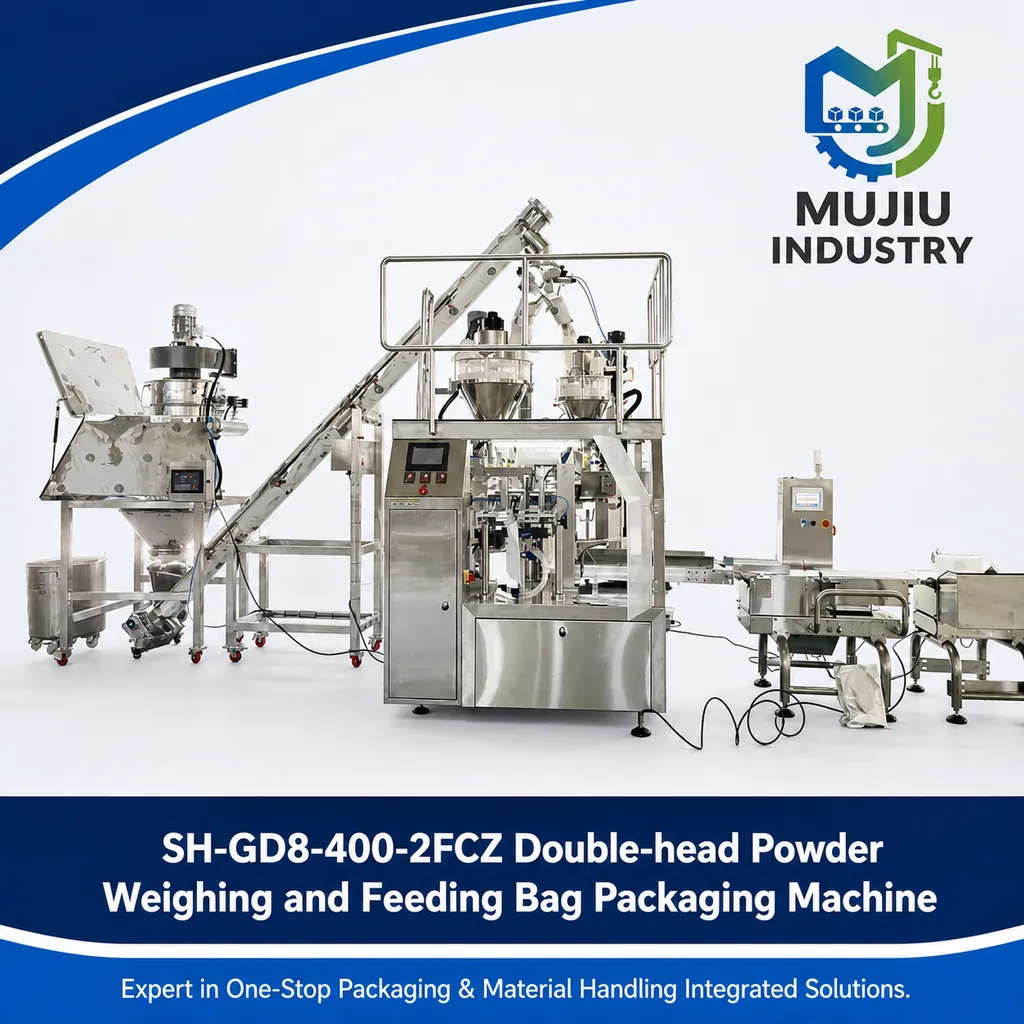

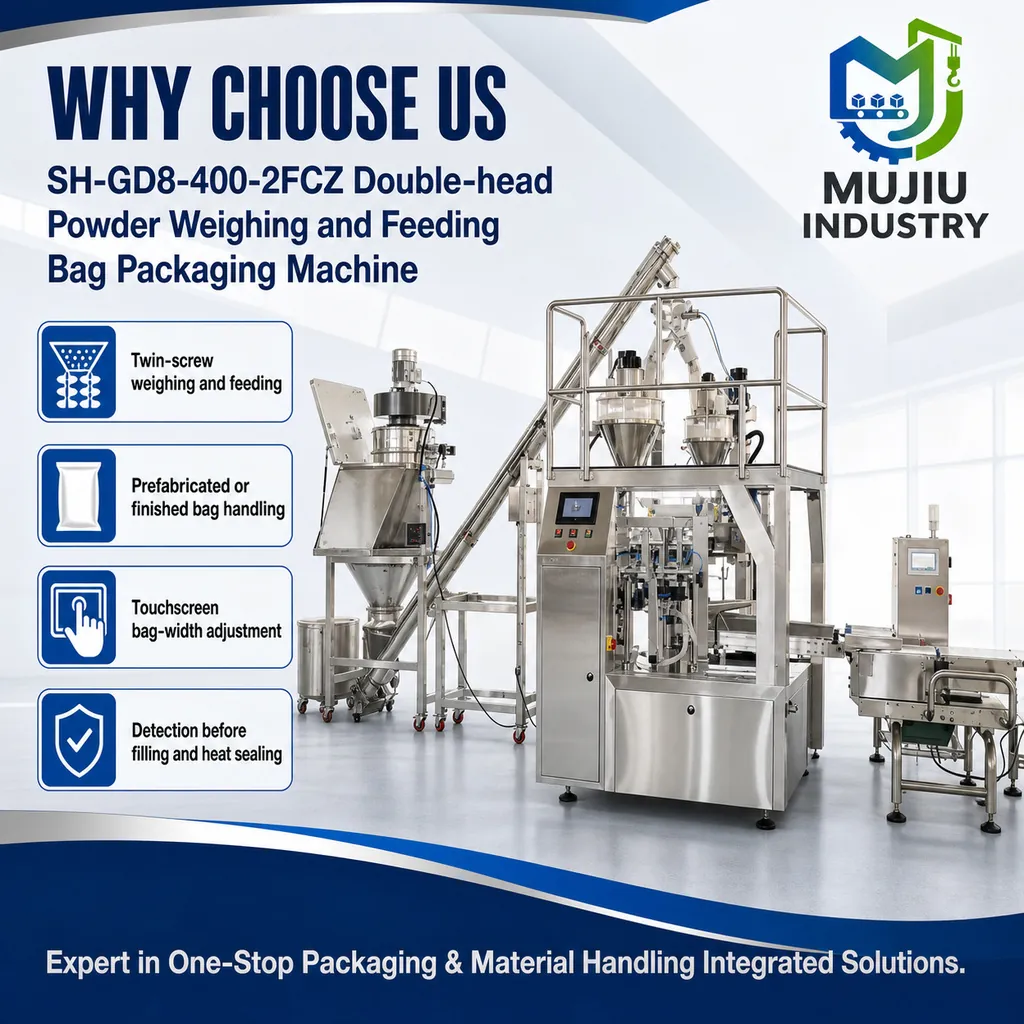

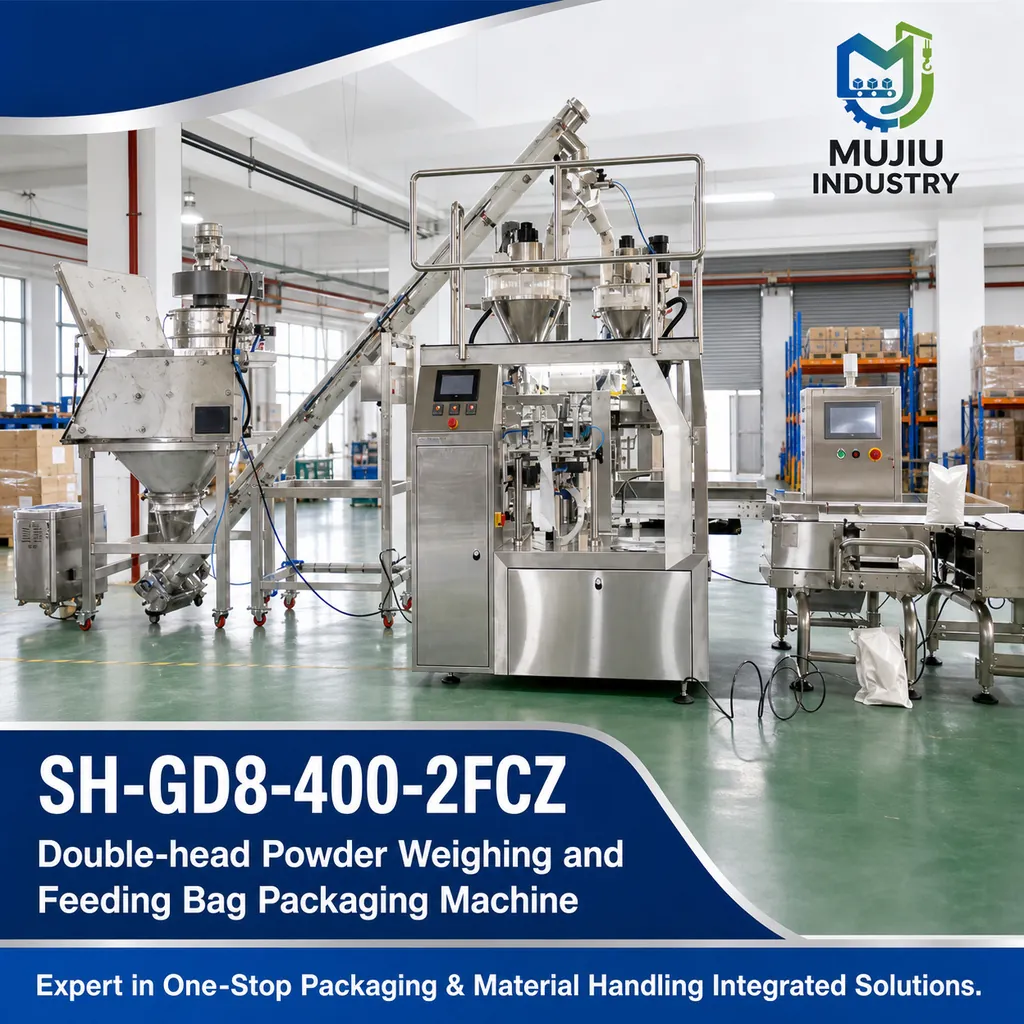

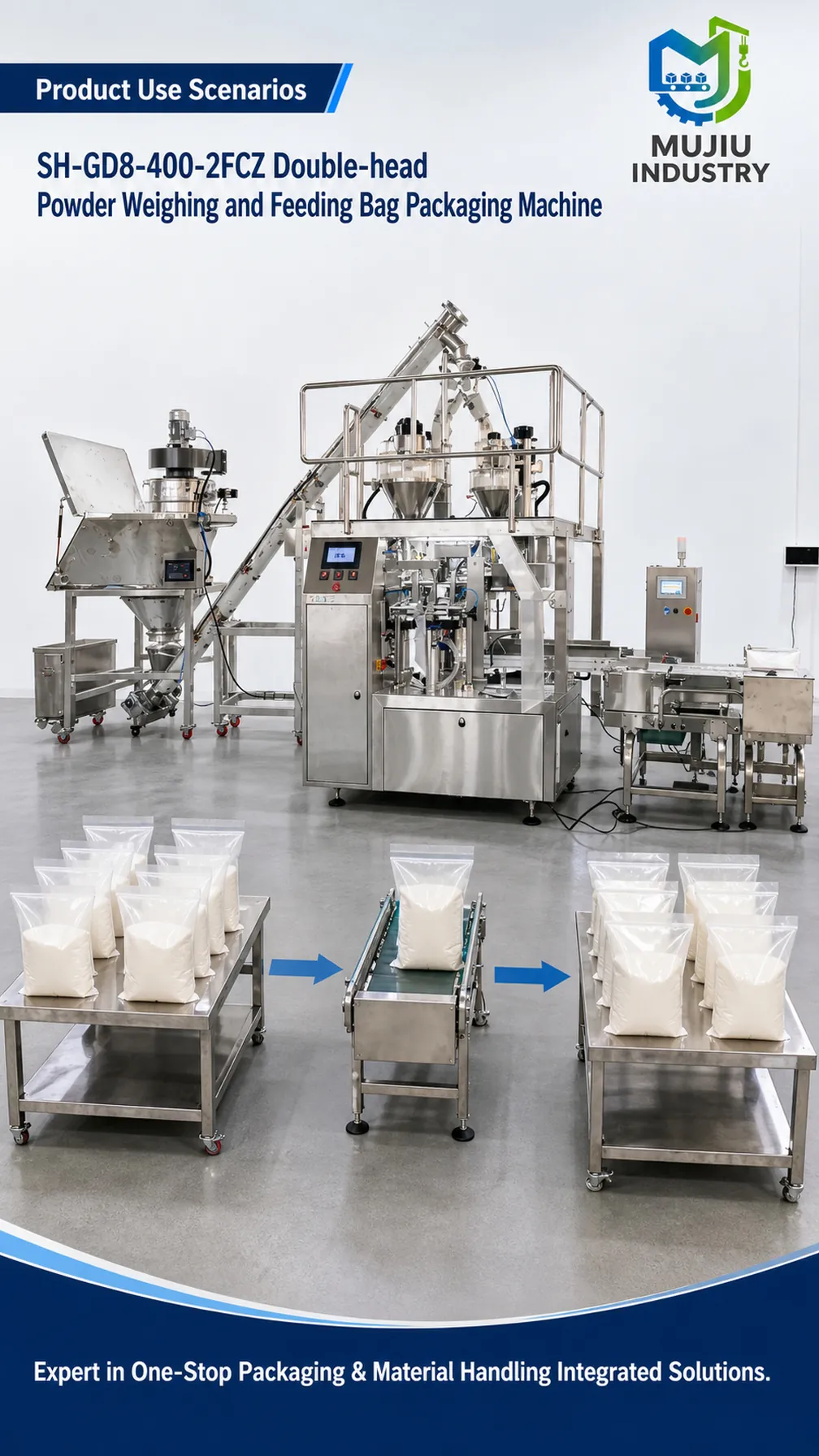

SH-GD8-400-2FCZ Automatic Packing Machine

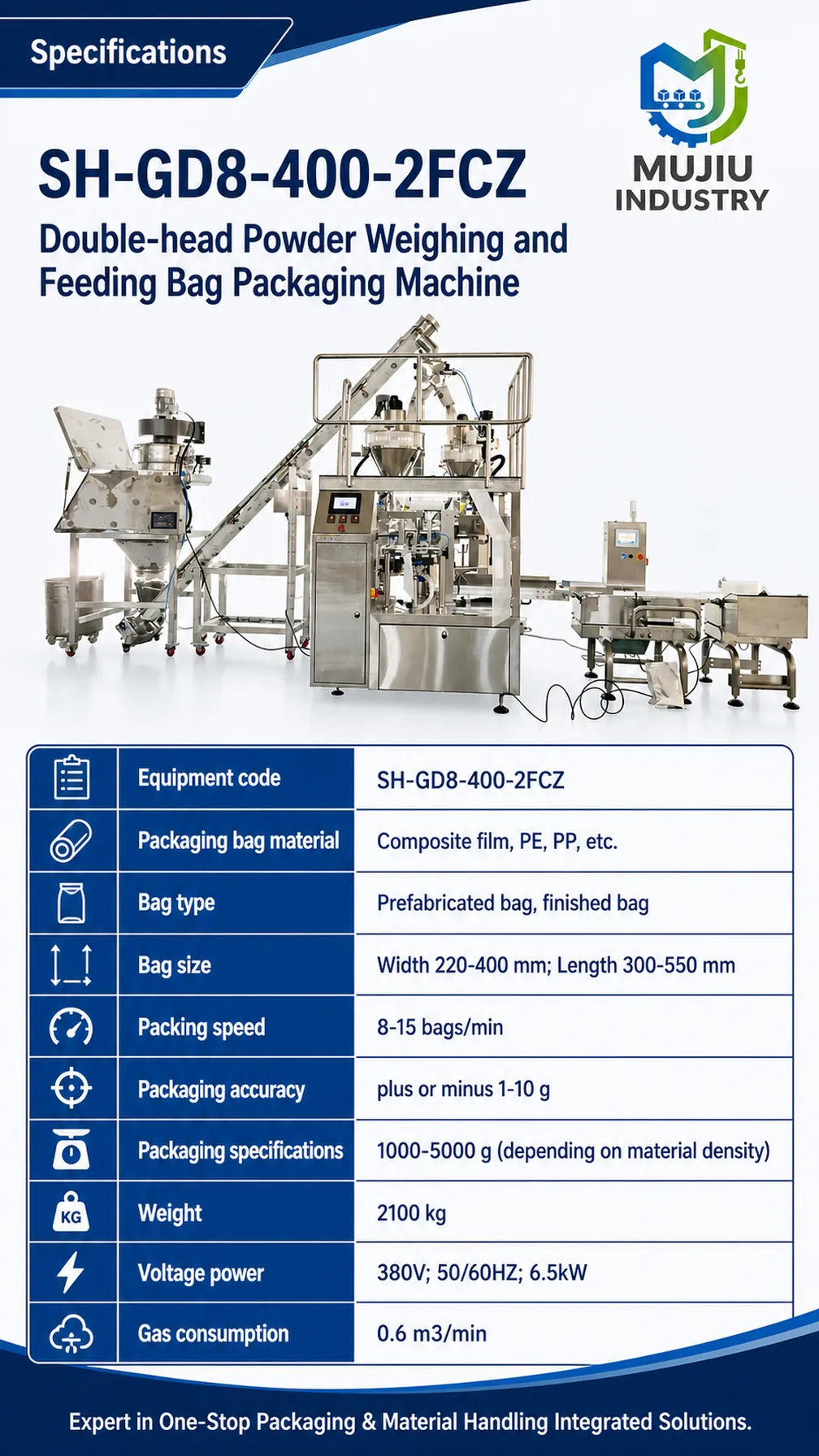

Technical Specifications

Model	SH-GD8-400-2FCZ
Pack format / Container	Pouch; Pre-made Bag
Drive system	Electric
Warranty	1 Year
Container / packaging material	Composite Film; PE; PP
Voltage	380 V
Suitable material	Powder; Milk Powder; Spice Powder; Nutritional Powder
Weight (kg)	2100
Main components	Motor; PLC; Auger; Automatic Upper Bag Type
Machine material	Stainless Steel
Rated power	6.5kW
Production capacity	8-15 bags/min
Filling range	1000-5000 g (depending on material density)
Bag dimensions	220-400 mm width; 300-550 mm length
Packaging accuracy	plus or minus 1-10 g
Air consumption	0.6 m3/min
MOQ	1 unit
Lead time	10 days for 1 unit

Product Overview

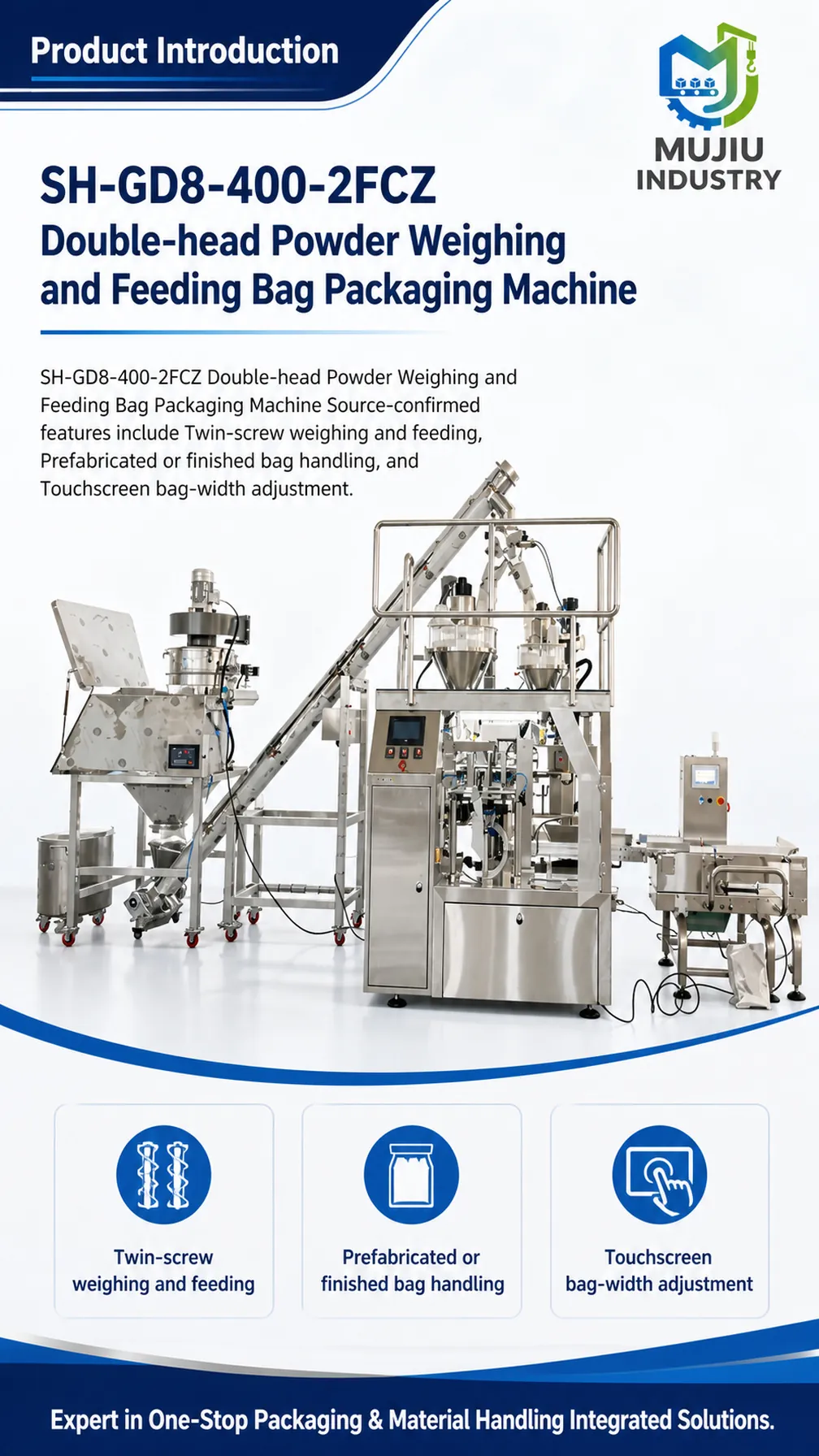

SH-GD8-400-2FCZ is an automatic powder filling and packaging machine. Suitable materials: Powder; Milk Powder; Spice Powder; Nutritional Powder. Packaging: Pouch; Pre-made Bag.

Product Highlights

Filling / dosing range: 1000-5000 g (depending on material density)
Output: 8-15 bags/min
Power supply: 6.5kW / 380 V
MOQ: 1 unit

Configuration Notes

Confirm the material, package format, target output, utilities and line interfaces before configuration. Final configuration depends on the confirmed material, package format, utilities and target output.

Configuration and Delivery

Standard configuration: Pouch; Pre-made Bag; Motor; PLC; Auger; Automatic Upper Bag Type; Electric.

Options: Configuration options are confirmed against the selected application and machine format. Cleaning and changeover requirements are confirmed against the material and package format. Maintenance points are confirmed with the selected machine configuration.

Export packing: Export packing requirements are confirmed before shipment. Warranty: 1 Year.

Tell us your material, container dimensions and target output. We will help you choose the machine configuration. Contact us for the lead time of customized configurations.

Working process

From product feeding to the next production step.

Feed dry powder into the hopper of SH-GD8-400-2FCZ.
The auger or weighing unit meters the target dose.
The machine fills the can, jar or pouch and controls dust at the fill point.
The pack is released for sealing, capping or the next station.
Hopper size, dose range, contact parts and infeed can be customized to your powder.

Continue your equipment selection

Browse this product category: Powder Filling Machines

Compare related models

SH-FZP-01 Automatic Powder Filling Machine
Filling range
1-2000g powder dosing range for flexible pack size planning
Filling speed
0-60 times per minute for controlled powder filling workflows
SH-GD8-260-2FCZ Automatic Packing Machine
Filling range
100-1000 g (depending on material density)
Bag dimensions
130-260 mm width; 150-340 mm length
SH-F2 Automatic Powder Filling Machine
Filling range
5-5000 g
Dosing range
5-5000g auger dosing

Compare models by product, pack format and target output to find the right equipment for your process.

Discuss this application

Share your material, container and target output.

Requesting a quote for: SH-GD8-400-2FCZ

Your name * Work email Country / region * WhatsApp (email or WhatsApp is required) Product / material Container / package Target output

Provide at least one contact method: work email or WhatsApp.

For an equipment recommendation, provide at least one: product/material, container/package, or target output.

Add voltage, timing, image or notes (optional)

Company

Voltage / frequency Purchase timing

Bottle, package or material image (optional, max 8 MB) Anything else we should know?

MOQ 1 unit. Request a quote for your configuration.

Product details

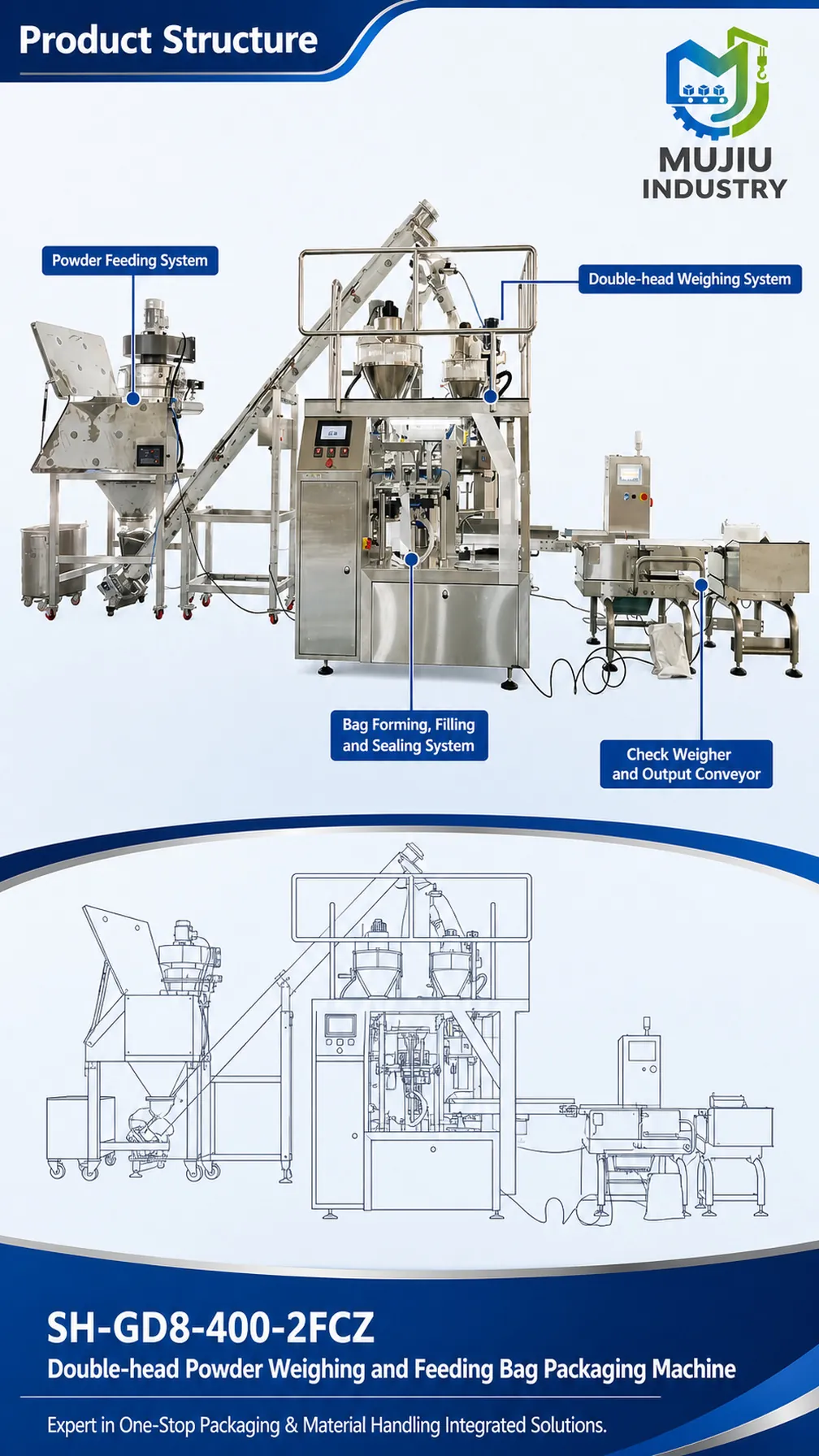

Configuration, structure and application reference

View detail photos and dimensions (6)

FAQ

Questions before you choose a configuration

Share the details below and we will use them to prepare a focused recommendation.

How does SH-GD8-400-2FCZ dose powder?

Powder is held in the hopper and metered by auger or weigh filling into the can, jar or pouch. Send bulk density, particle size, target weight and pack opening so we can confirm the screw, hopper and dust control.

What can be customized?

Dose range, hopper size, contact-part material, screw pitch, dust cover, infeed elevator and voltage can be customized to your powder and pack.

Do I need to send powder samples?

Yes when the powder is fine, oily or dusty. A sample plus the actual can or pouch helps us confirm filling accuracy and dust control before shipment.

Can you customize voltage and plug?

Yes. Common options include 110 V 60 Hz, 220 V 50 Hz and 230 V 50 Hz. Tell us the destination country, voltage, frequency and plug type with your inquiry.

Can you test this machine before shipment?

Yes. We can run the machine built for your order, share photos or a test video, and use your sample when it is suitable. Tell us the material and pack you want tested.

Do you supply spare parts for this model?

Yes. Wearing parts for this model, such as seals, tubes, heaters, sensors or belts, can be supplied with the machine or later. List the parts you want quoted.
