Packaging Equipment

ModelHC-50

HC-50 Automatic Vertical Labeling Machine

Speed
20-200 pcs/min
Labeling speed
20 to 200 pcs per minute vertical bottle labeling output
Get a Configuration Recommendation →

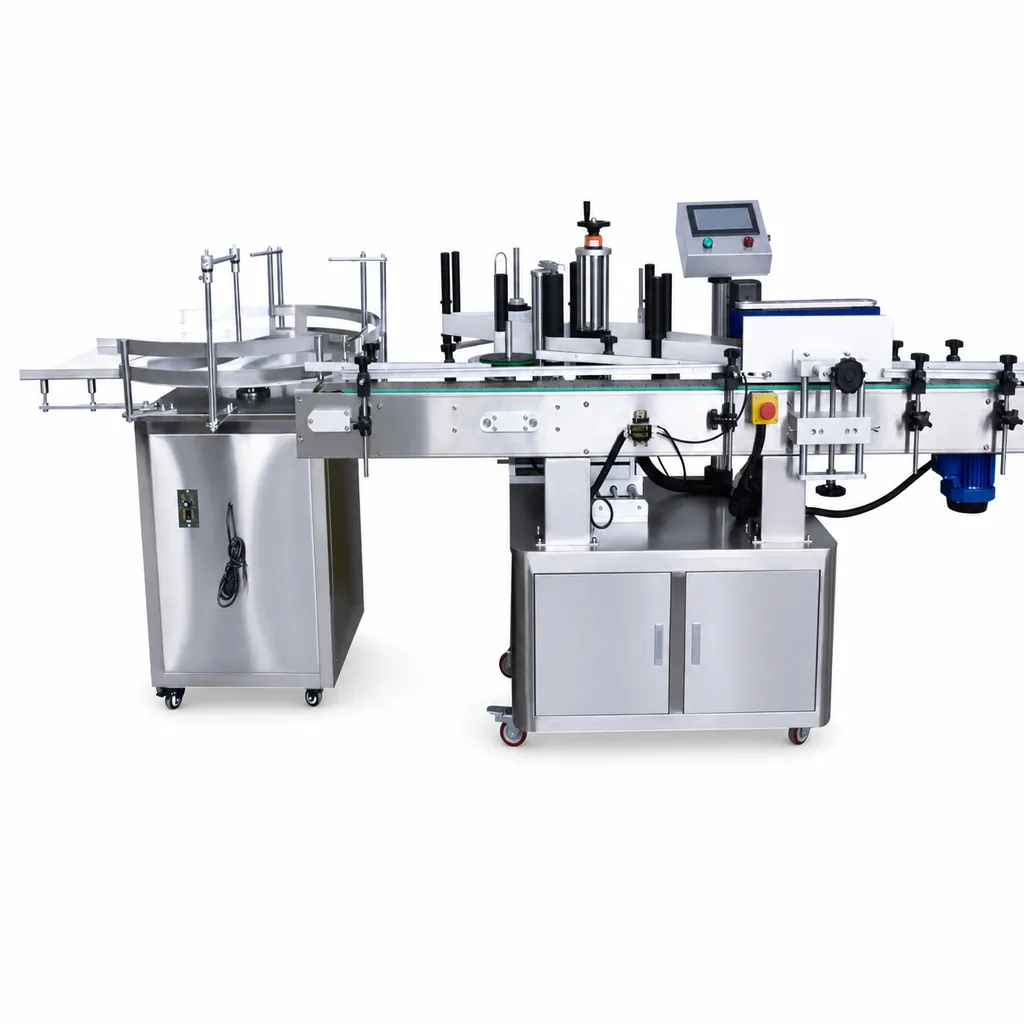

HC-50 product view 1

HC-50 is an automatic vertical round bottle labeling machine. Packaging: Bottles; Jars. Specifications include 1.5kW / 110 V; 220 V; Customizable, 20-200 pcs/min, and 1 unit. Contact MUJIU to confirm the configuration for your application.

Material
Confirm material behavior and samples for final configuration.
Container
Bottles; Jars
Capacity
20-200 pcs/min. Output can be customized to your material, pack format and target speed.
Power supply
1.5kW / 110 V; 220 V; Customizable
MOQ
1 unit
Lead time
10 days for 1 unit
Warranty
1 Year
Get a Configuration Recommendation View Specifications →

Share material, package format and target output to confirm configuration.

Technical Specifications

ModelHC-50
Pack format / ContainerBottles; Jars
Drive systemElectric
Warranty1 Year
Dimensions (L × W × H)2000*1400*1300mm
AutomationAutomatic
Container / packaging materialGlass; Plastic
Voltage110 V; 220 V; Customizable
Weight (kg)20

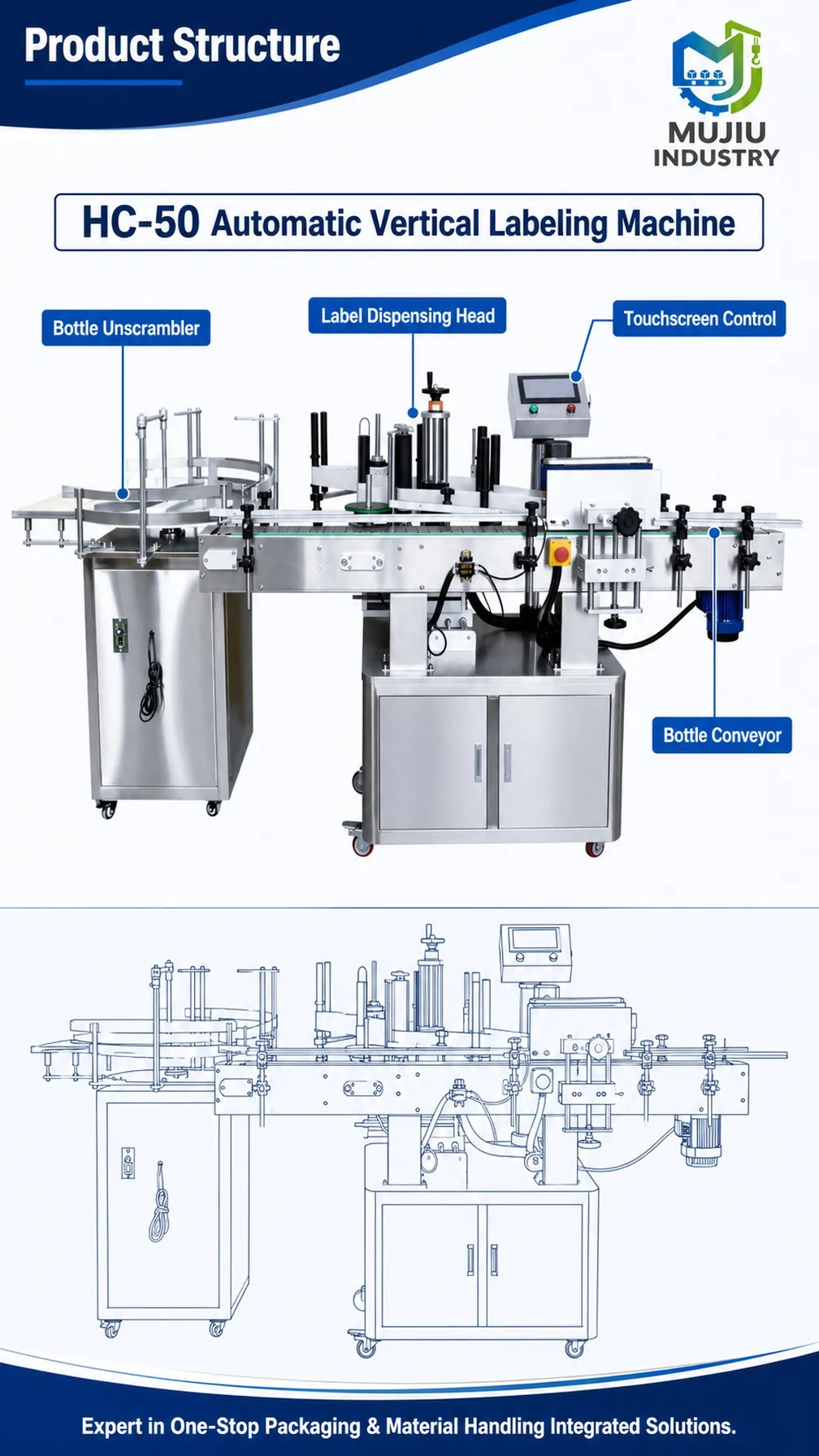

Main componentsBottle Unscrambler; Label Dispensing Head; Touchscreen Control; Bottle Conveyor
Rated power1.5kW
Speed20-200 pcs/min
Bottle diameter30 to 120 mm bottle diameter range for round container labeling
Label dimensionsLabels 15 to 200 mm high and 25 to 300 mm long
Label roll dimensions76 mm core and up to 350 mm outer roll diameter
Labeling speed20 to 200 pcs per minute vertical bottle labeling output
MOQ1 unit
Lead time10 days for 1 unit

Product Overview

HC-50 is an automatic vertical round bottle labeling machine. Packaging: Bottles; Jars.

Product Highlights

  • Filling / dosing range: Confirm the required fill or pack range for final configuration.
  • Output: 20-200 pcs/min
  • Power supply: 1.5kW / 110 V; 220 V; Customizable
  • MOQ: 1 unit

Configuration Notes

Confirm the material, package format, target output, utilities and line interfaces before configuration. Final configuration depends on the confirmed material, package format, utilities and target output.

Configuration and Delivery

Standard configuration: Bottles; Jars; Bottle Unscrambler; Label Dispensing Head; Touchscreen Control; Bottle Conveyor; Electric.

Options: Configuration options are confirmed against the selected application and machine format. Cleaning and changeover requirements are confirmed against the material and package format. Maintenance points are confirmed with the selected machine configuration.

Export packing: Export packing requirements are confirmed before shipment. Warranty: 1 Year.

Tell us your material, container dimensions and target output. We will help you choose the machine configuration. Contact us for the lead time of customized configurations.

Working process

From product feeding to the next production step.

  1. Containers or packs enter the labeling station of HC-50.
  2. The sensor finds the label position on the roll.
  3. The label is applied to the set face or wrap position.
  4. Labeled packs discharge for inspection or packing.
  5. Label size, roll direction and applicator height can be customized to your pack.

Product details

View detail photos and dimensions (6)

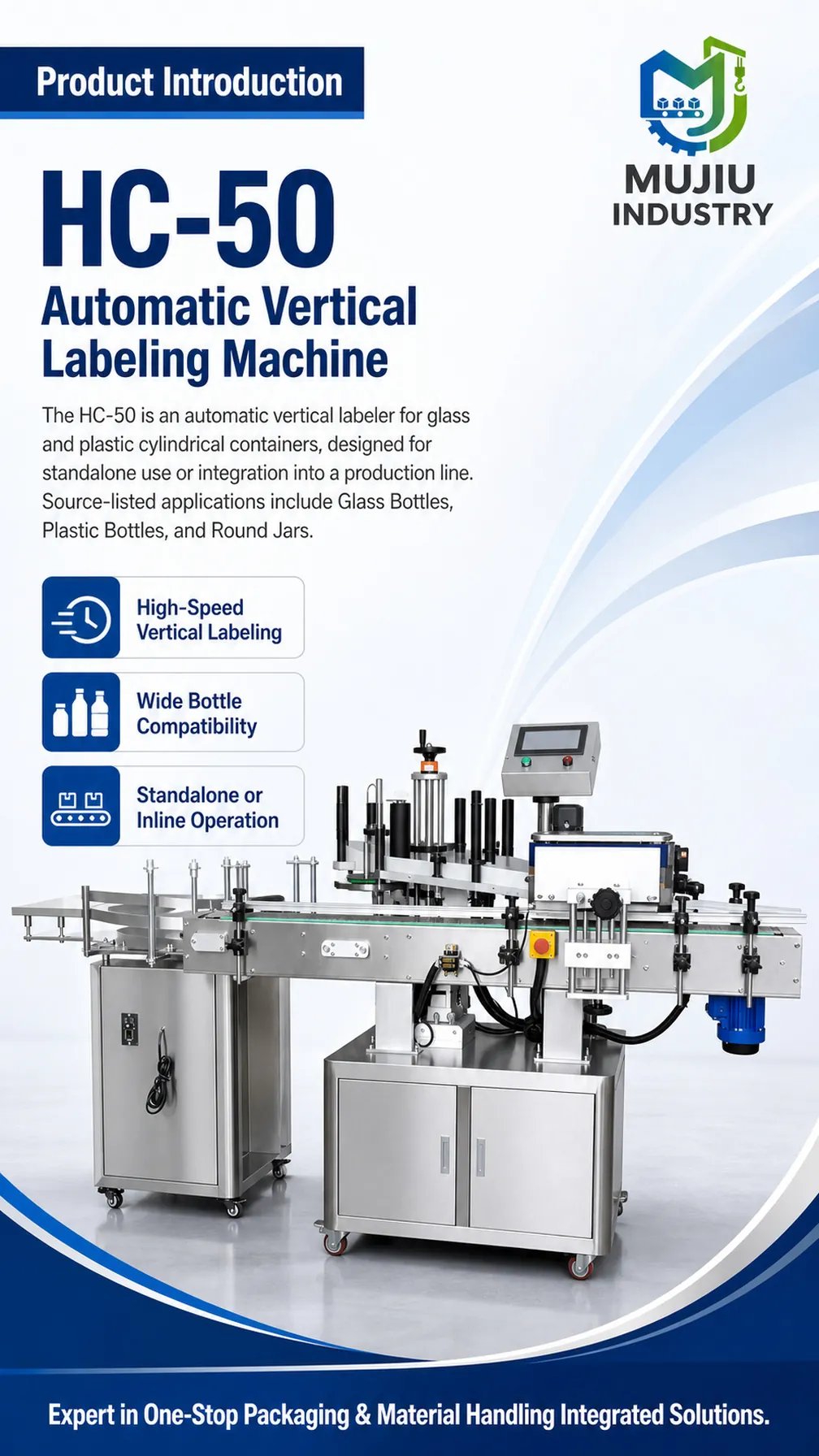

HC-50 product details 1

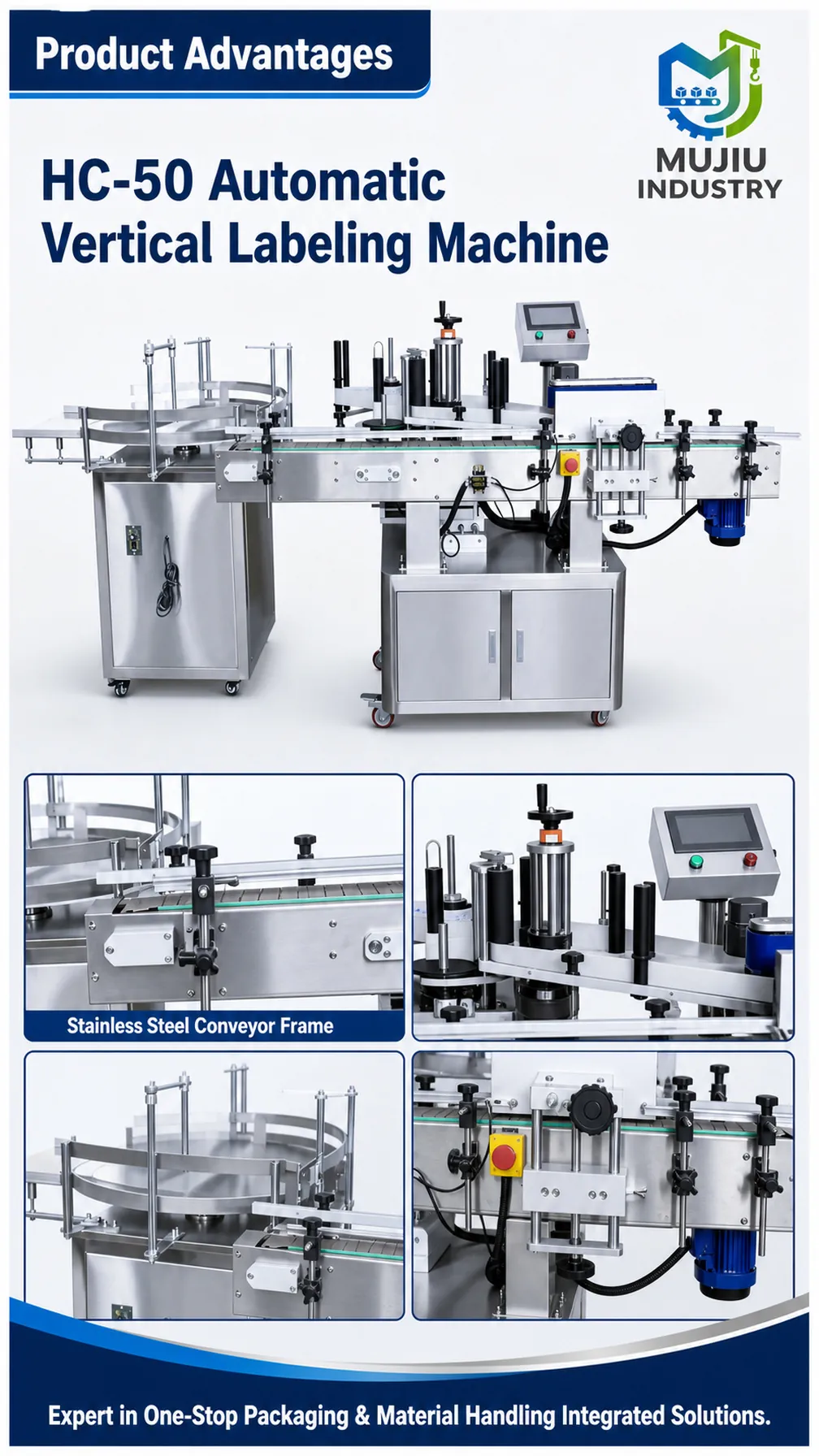

HC-50 product details 2
HC-50 product details 3
HC-50 product details 4

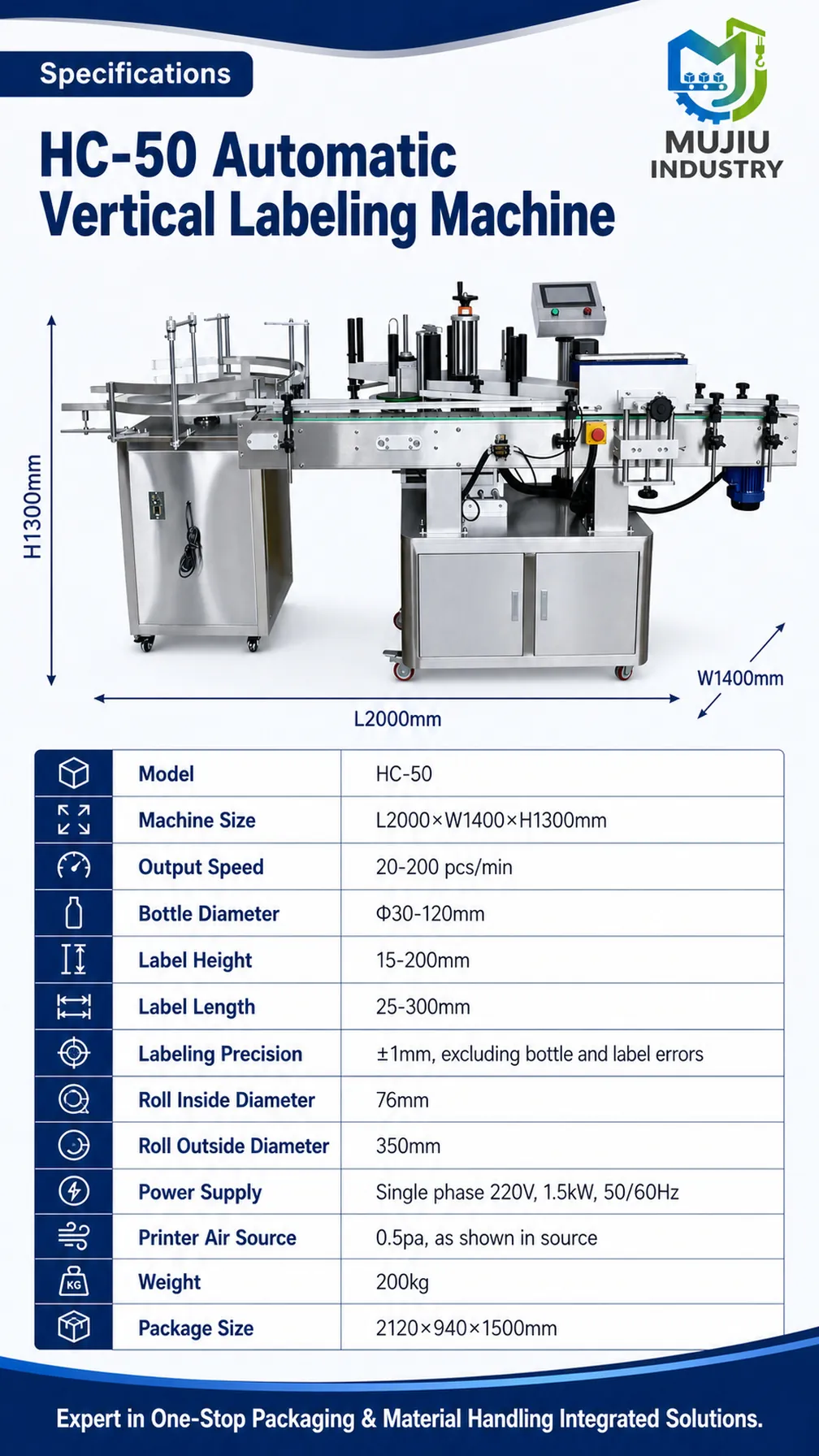

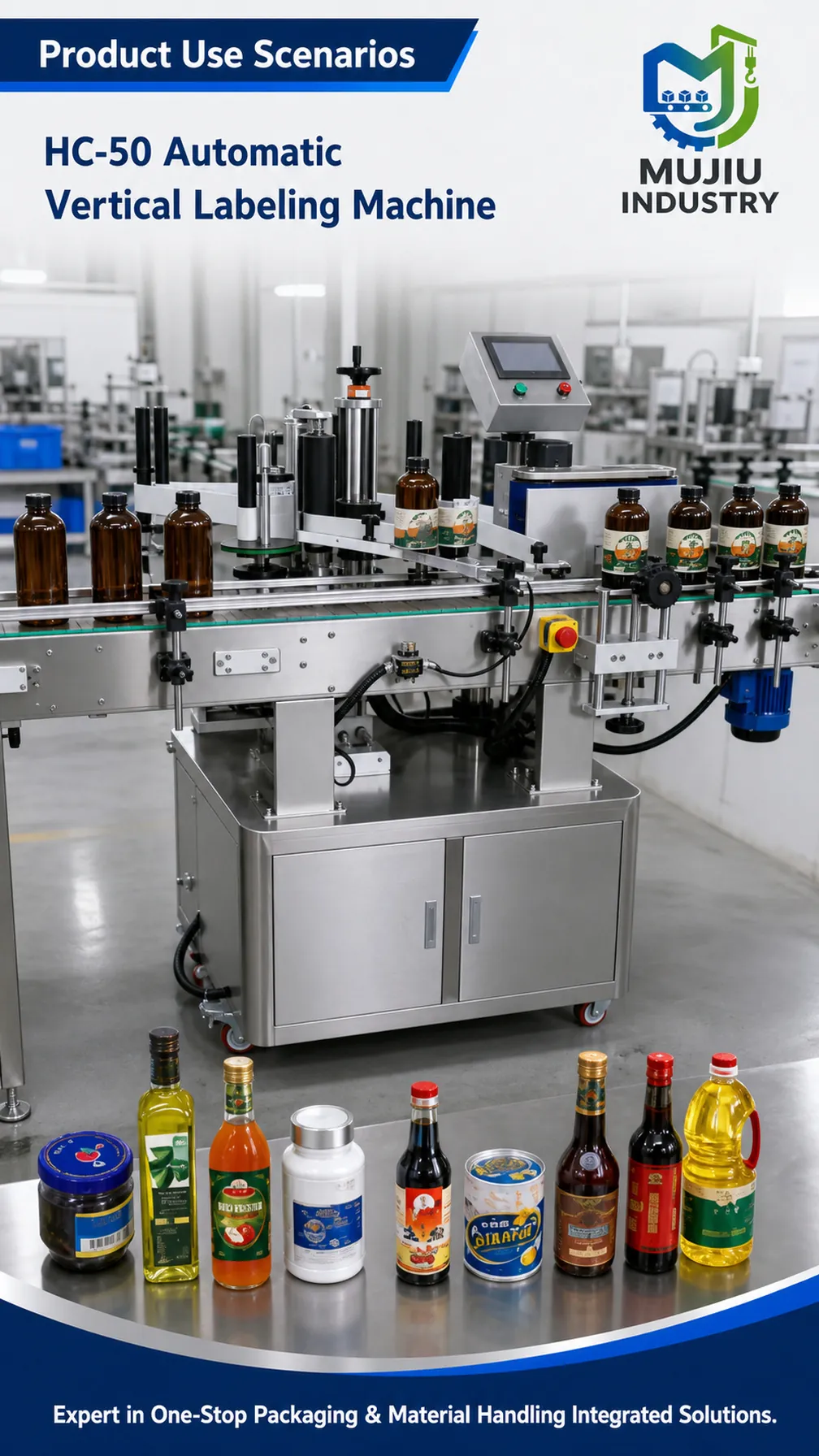

HC-50 product details 5
HC-50 product details 6

FAQ

Questions before you choose a configuration

Share the details below and we will use them to prepare a focused recommendation.

How does HC-50 apply labels?

The sensor finds the label on the roll and applies it to the set position as the pack passes. Send label size, roll direction, pack drawings and target speed.

What can be customized?

Applicator height, label width, wrap or front/back application, and voltage can be customized to your pack.

Can one machine cover several pack sizes?

Yes after each size is reviewed. Send the size range and we will confirm change parts and changeover time with the quotation.

Can you customize voltage and plug?

Yes. Common options include 110 V 60 Hz, 220 V 50 Hz and 230 V 50 Hz. Tell us the destination country, voltage, frequency and plug type with your inquiry.

Can you test this machine before shipment?

Yes. We can run the machine built for your order, share photos or a test video, and use your sample when it is suitable. Tell us the material and pack you want tested.

Do you supply spare parts for this model?

Yes. Wearing parts for this model, such as seals, tubes, heaters, sensors or belts, can be supplied with the machine or later. List the parts you want quoted.
