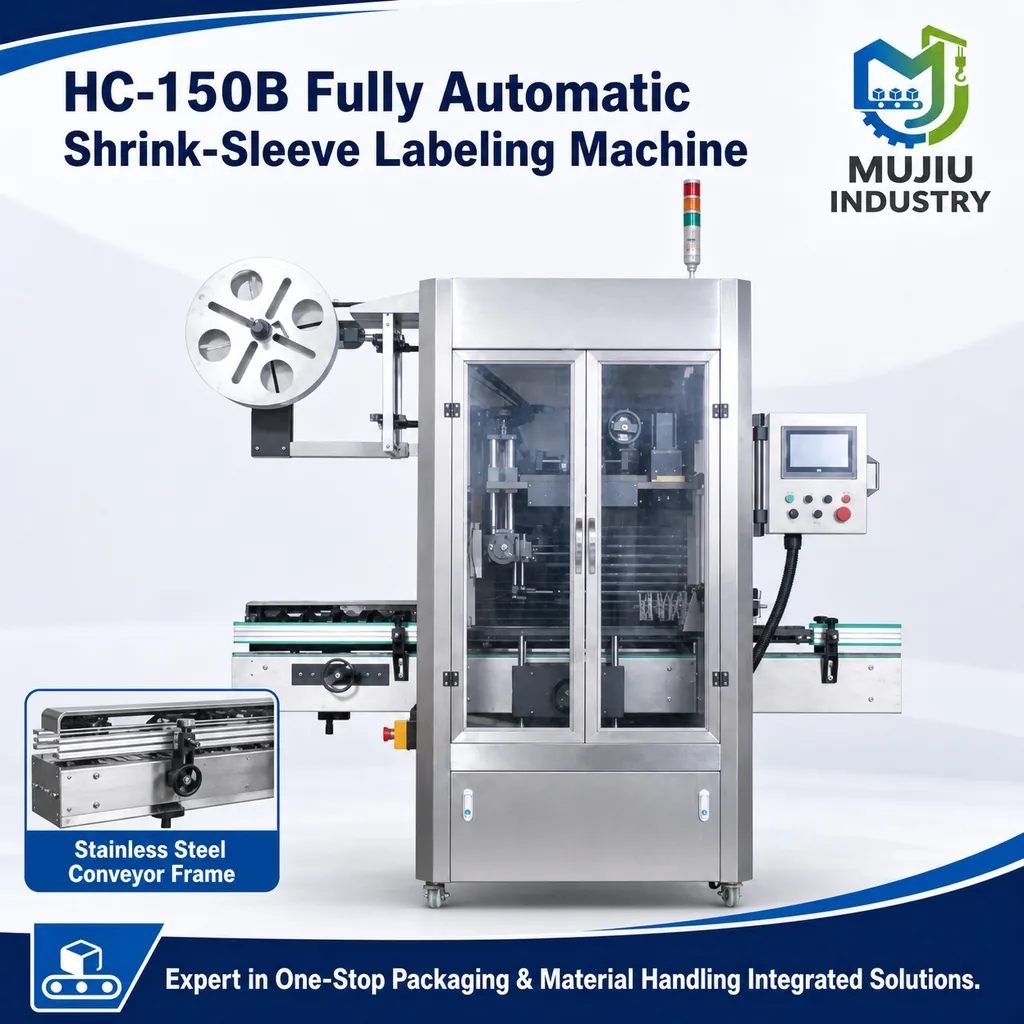

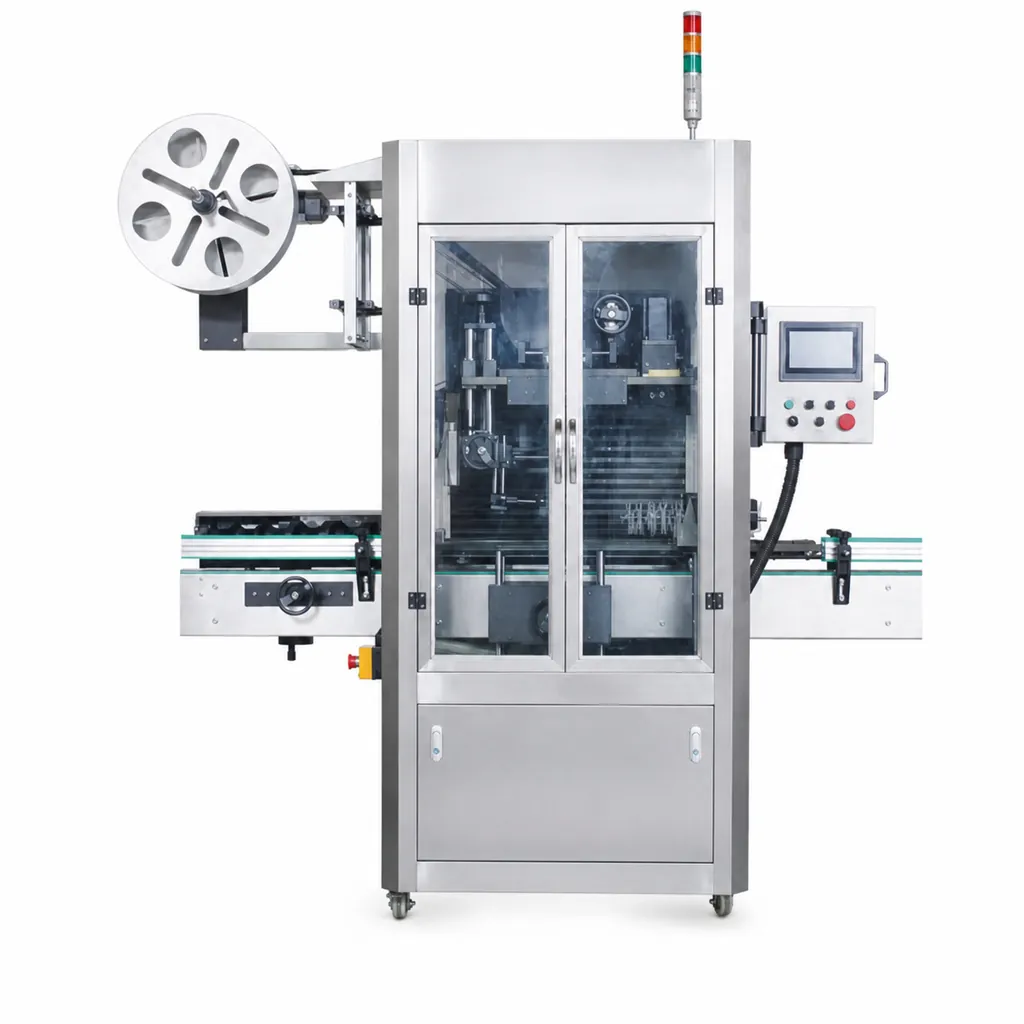

HC-150B Automatic Shrink Sleeve Labeling Machine

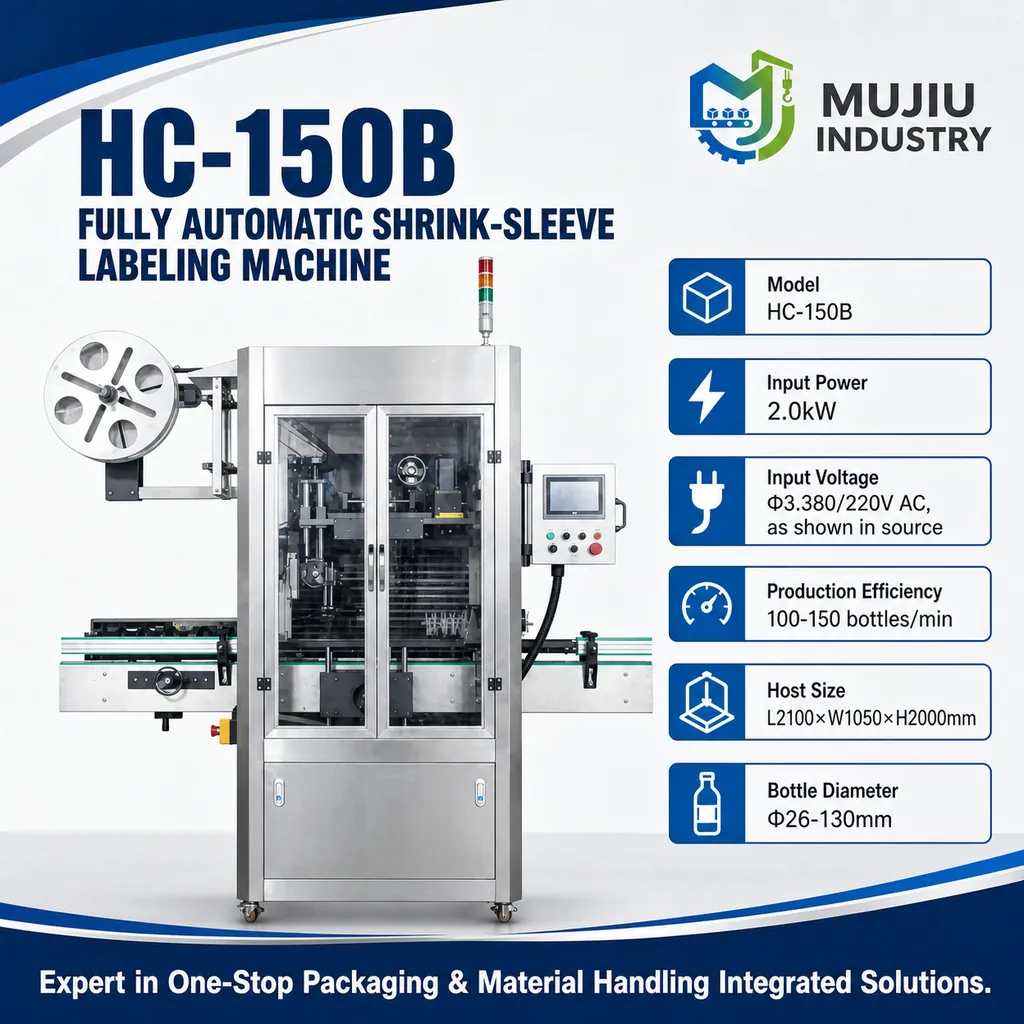

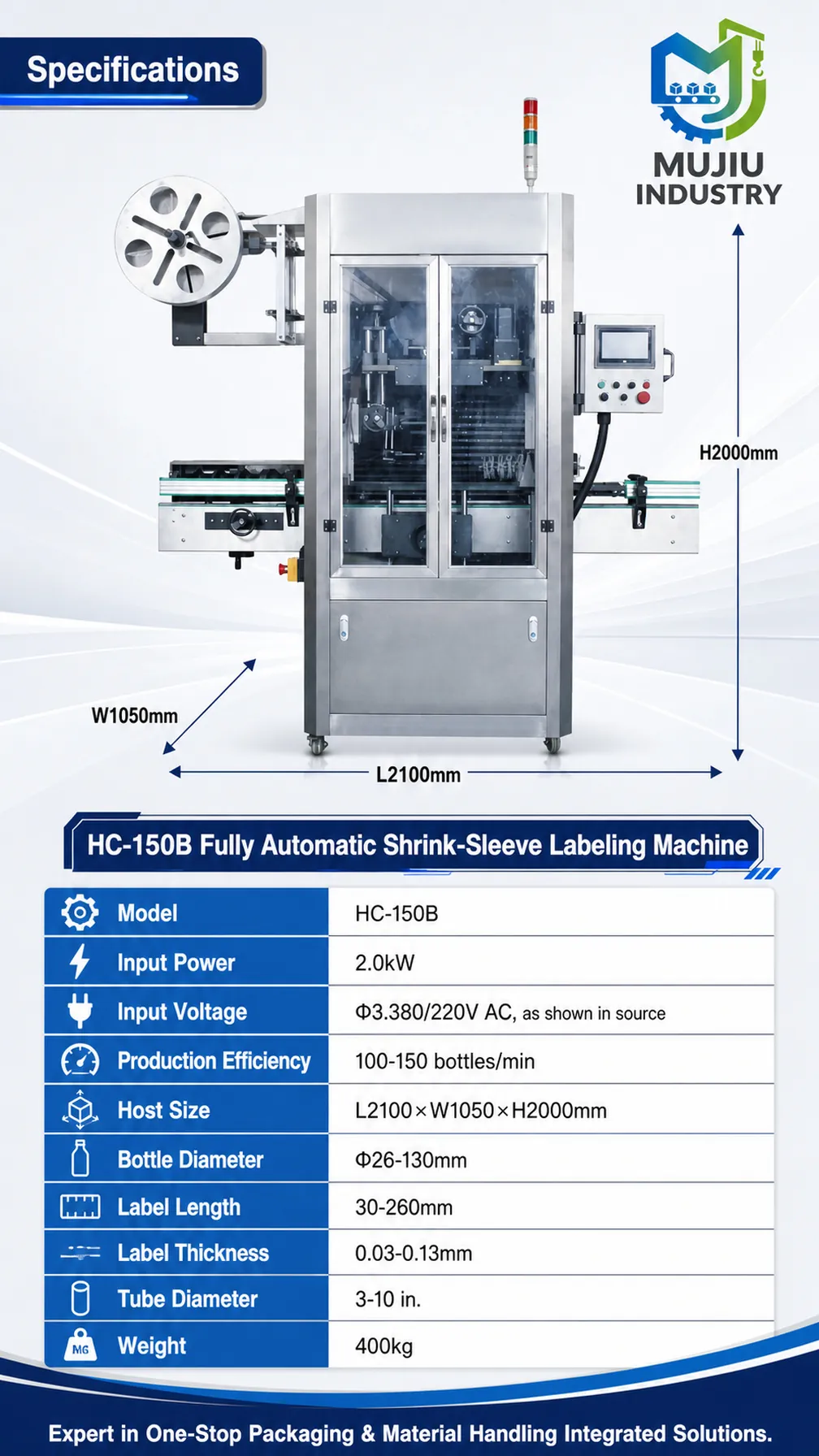

Technical Specifications

Model	HC-150B
Pack format / Container	Bottles
Drive system	Electric
Warranty	1 Year
Dimensions (L × W × H)	210010502000 mm
Automation	Automatic
Container / packaging material	PVC; PET; OPS; Shrink Sleeve Film
Voltage	380 V; 220 V; Customizable
Weight (kg)	400

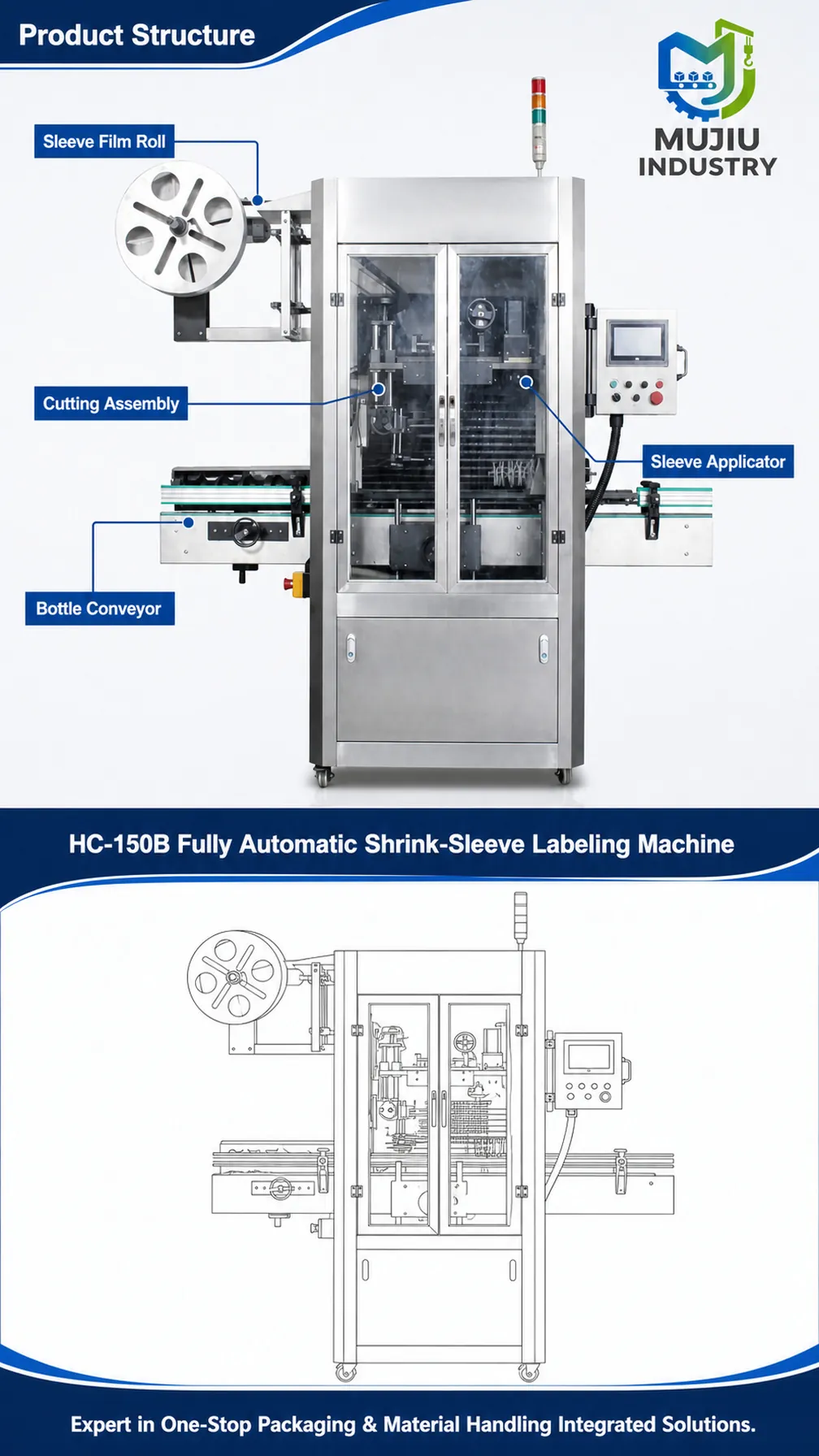

Main components	Sleeve Film Roll; Cutting Assembly; Sleeve Applicator; Bottle Conveyor
Rated power	2.0kW
Speed	150 bottles/min
Sleeve application speed	100 to 150 bottles per minute sleeve label application output
Bottle diameter	26 to 130 mm bottle diameter compatibility for sleeve labels
Sleeve film dimensions	30 to 260 mm sleeve label length and 0.03 to 0.13 mm film thickness
Sleeve tube diameter	3 to 10 inch
Dimensions	Single unit dimensions 2100 by 1050 by 2000 mm
MOQ	1 unit
Lead time	10 days for 1 unit

Product Overview

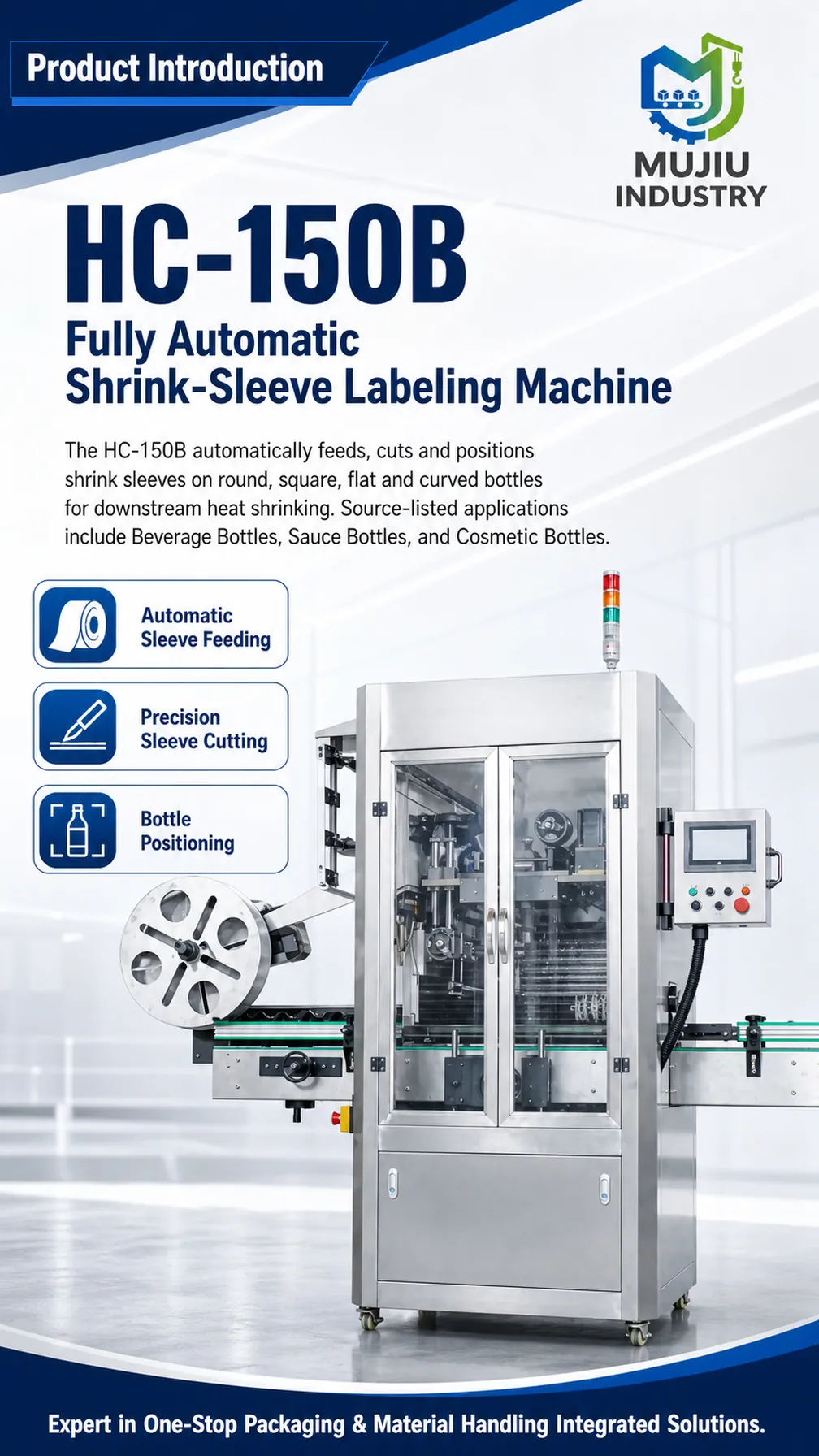

HC-150B is an automatic shrink sleeve labeling machine. Packaging: Bottles.

Product Highlights

Filling / dosing range: Confirm the required fill or pack range for final configuration.
Output: 150 bottles/min
Power supply: 2.0kW / 380 V; 220 V; Customizable
MOQ: 1 unit

Configuration Notes

Confirm the material, package format, target output, utilities and line interfaces before configuration. Final configuration depends on the confirmed material, package format, utilities and target output.

Configuration and Delivery

Standard configuration: Bottles; Sleeve Film Roll; Cutting Assembly; Sleeve Applicator; Bottle Conveyor; Electric.

Options: Configuration options are confirmed against the selected application and machine format. Cleaning and changeover requirements are confirmed against the material and package format. Maintenance points are confirmed with the selected machine configuration.

Export packing: Export packing requirements are confirmed before shipment. Warranty: 1 Year.

Tell us your material, container dimensions and target output. We will help you choose the machine configuration. Contact us for the lead time of customized configurations.

Working process

From product feeding to the next production step.

Containers or packs enter the labeling station of HC-150B.
The sensor finds the label position on the roll.
The label is applied to the set face or wrap position.
Labeled packs discharge for inspection or packing.
Label size, roll direction and applicator height can be customized to your pack.
