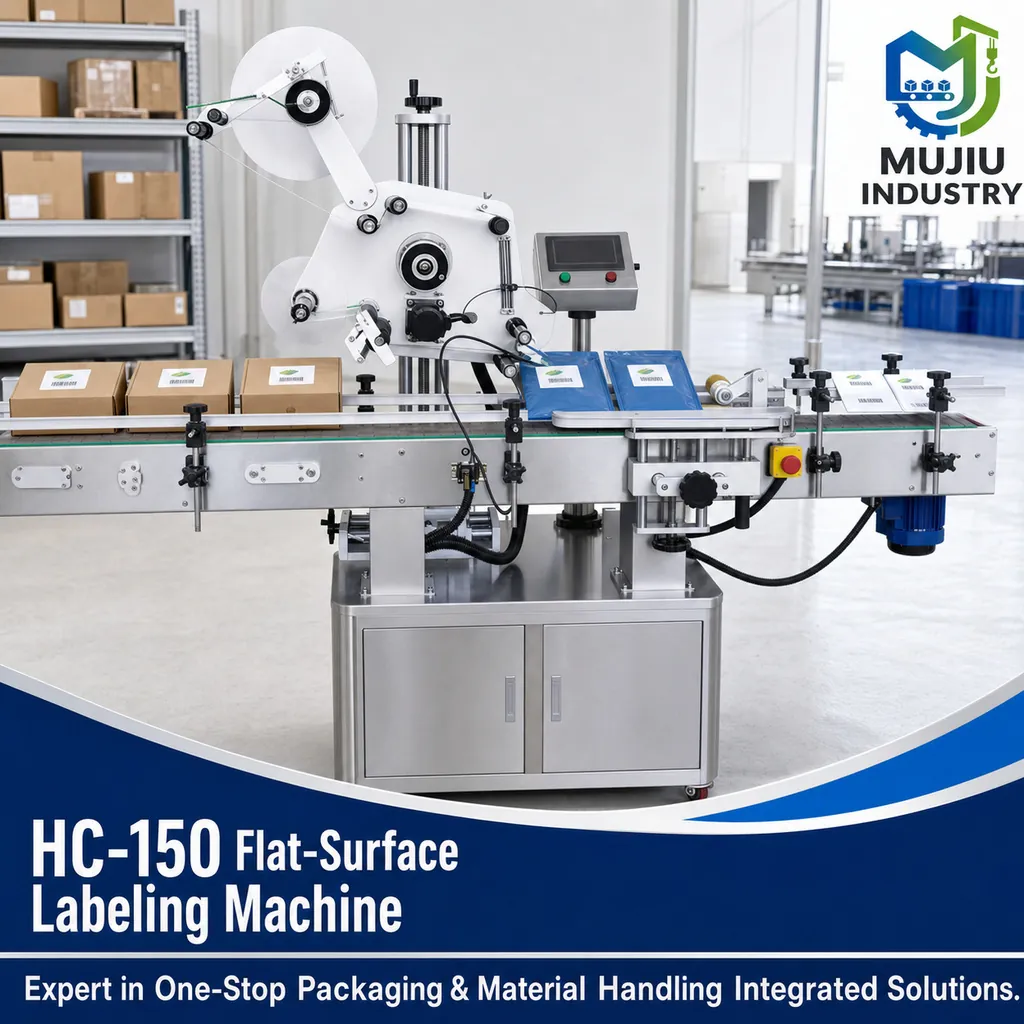

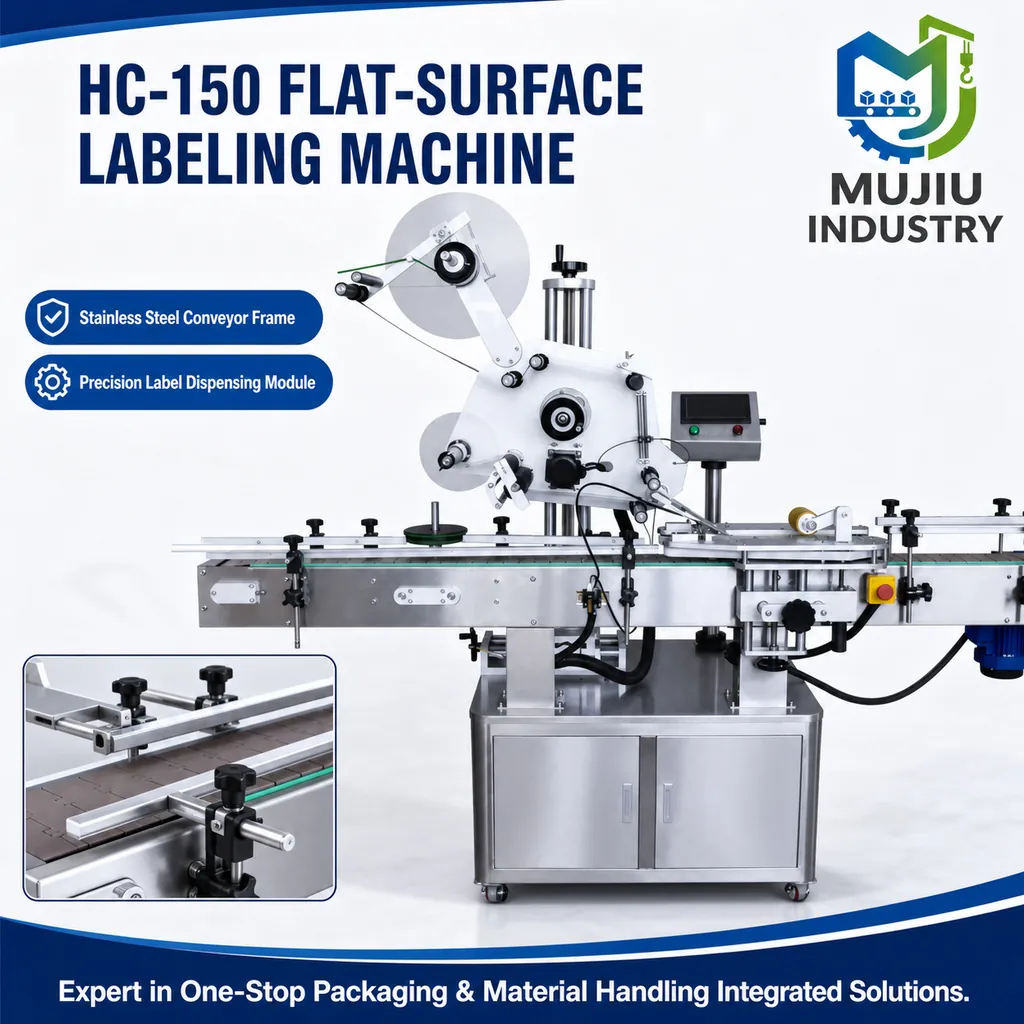

HC-150 Flat Surface Labeling Machine

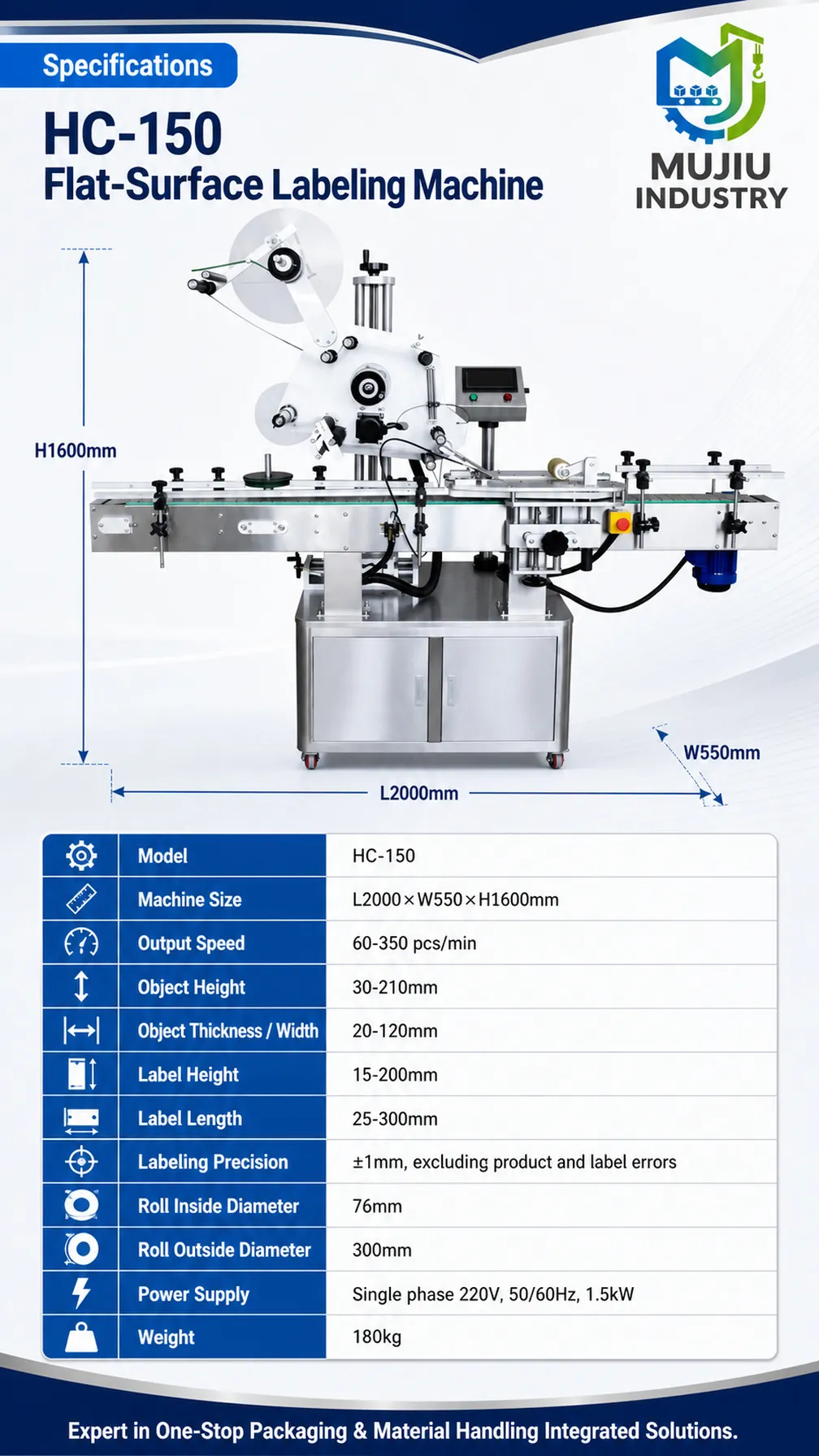

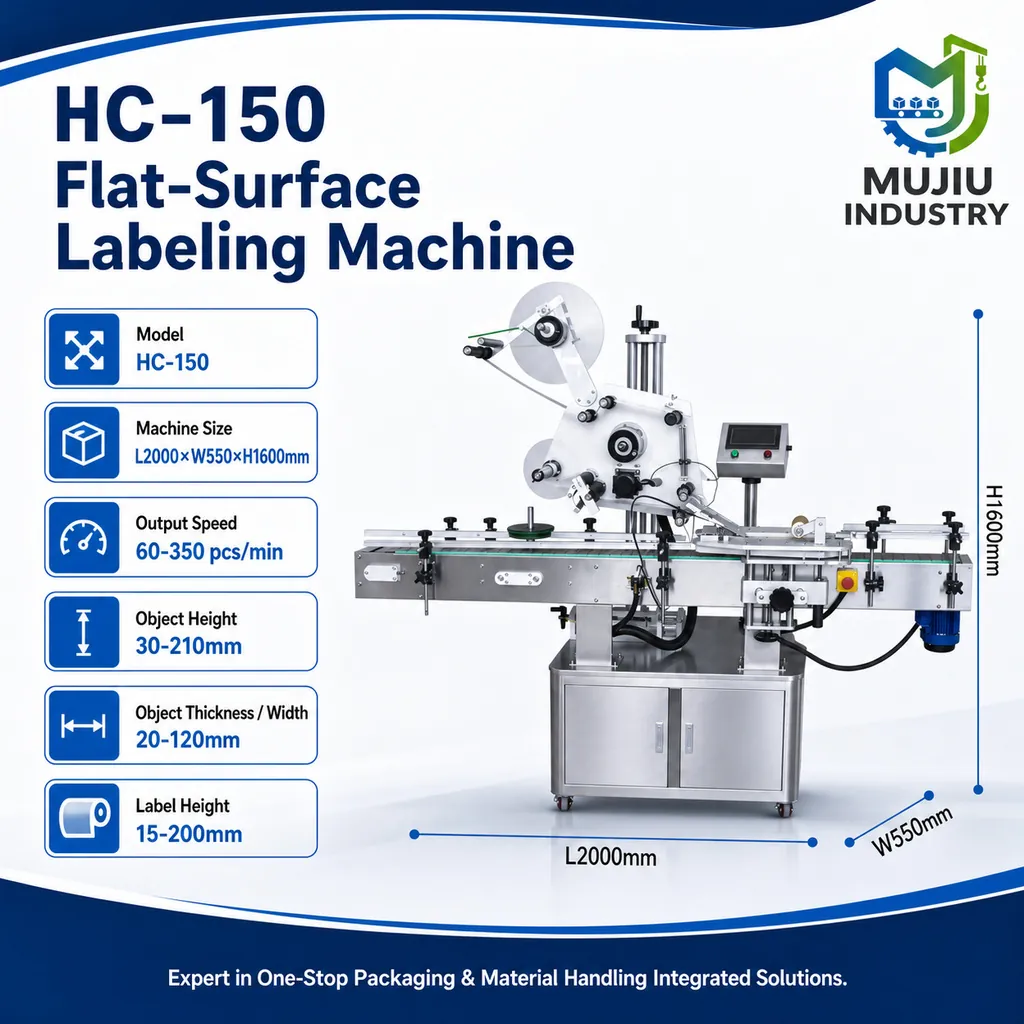

Technical Specifications

Model	HC-150
Pack format / Container	Cartons; Flat Pouches; Cards
Drive system	Electric
Warranty	1 Year
Dimensions (L × W × H)	20005501600mm
Automation	Automatic
Container / packaging material	Paper; Plastic; Composite Film
Voltage	110 V; 220 V; Customizable
Weight (kg)	180

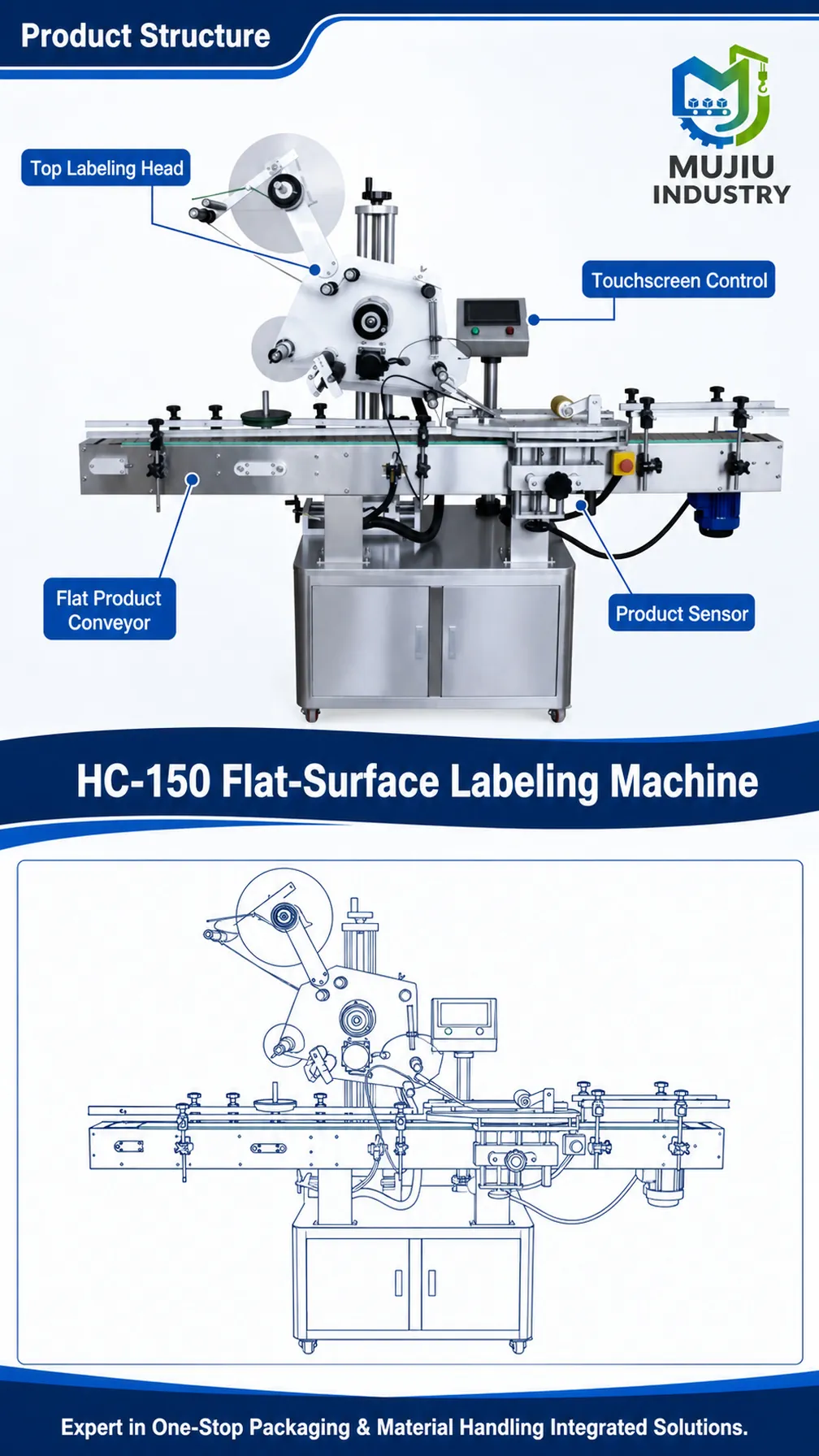

Main components	Top Labeling Head; Flat Product Conveyor; Product Sensor; Touchscreen Control
Rated power	1.5kW
Speed	60 -350 pcs/min
Labeling speed	60 to 350 pcs per minute flat product labeling output
Product dimensions	30 to 210 mm object height and 20 to 120 mm thickness width
Label dimensions	Labels 15 to 200 mm high and 25 to 300 mm long
Labeling accuracy	Plus or minus 1 mm labeling precision excluding product label errors
Label roll dimensions	76 mm core and 300 mm outer diameter label roll format
Dimensions	Single unit dimensions 2000 by 550 by 1600 mm
MOQ	1 unit
Lead time	10 days for 1 unit

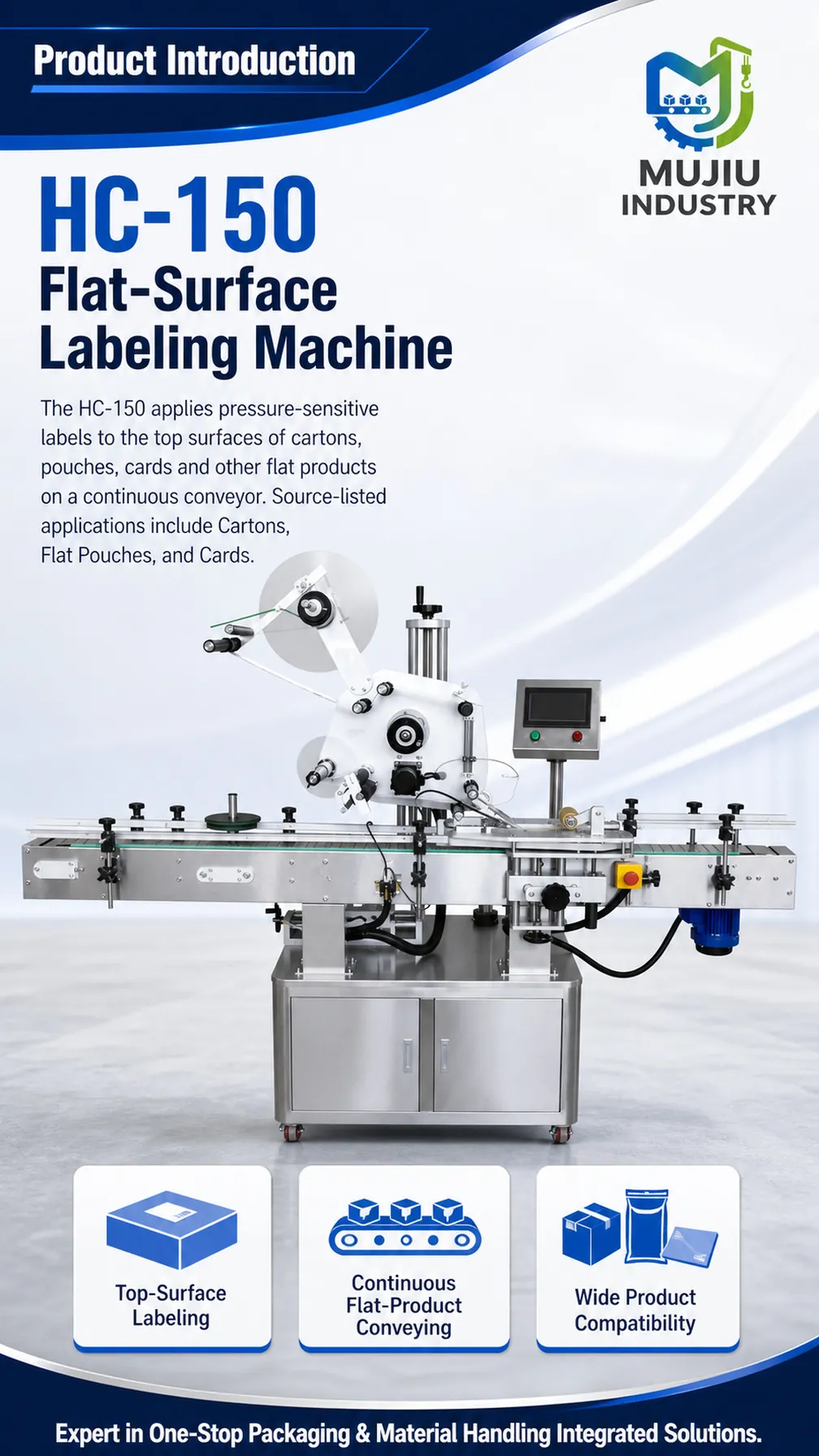

Product Overview

HC-150 is a flat-surface labeling machine. Packaging: Cartons; Flat Pouches; Cards.

Product Highlights

Filling / dosing range: Confirm the required fill or pack range for final configuration.
Output: 60 -350 pcs/min
Power supply: 1.5kW / 110 V; 220 V; Customizable
MOQ: 1 unit

Configuration Notes

Confirm the material, package format, target output, utilities and line interfaces before configuration. Final configuration depends on the confirmed material, package format, utilities and target output.

Configuration and Delivery

Standard configuration: Cartons; Flat Pouches; Cards; Top Labeling Head; Flat Product Conveyor; Product Sensor; Touchscreen Control; Electric.

Options: Configuration options are confirmed against the selected application and machine format. Cleaning and changeover requirements are confirmed against the material and package format. Maintenance points are confirmed with the selected machine configuration.

Export packing: Export packing requirements are confirmed before shipment. Warranty: 1 Year.

Tell us your material, container dimensions and target output. We will help you choose the machine configuration. Contact us for the lead time of customized configurations.

Working process

From product feeding to the next production step.

Containers or packs enter the labeling station of HC-150.
The sensor finds the label position on the roll.
The label is applied to the set face or wrap position.
Labeled packs discharge for inspection or packing.
Label size, roll direction and applicator height can be customized to your pack.

Continue your equipment selection

Browse this product category: Capping, Labeling & Sealing

Compare related models

HC-50 Automatic Vertical Labeling Machine
Speed
20-200 pcs/min
Labeling speed
20 to 200 pcs per minute vertical bottle labeling output
HC-70 Automatic Round Bottle Positioning Labeling Machine
Speed
25-50 pcs/min
Labeling speed
25 to 50 pcs per minute output for positioned bottle labeling
HC-80 Automatic Horizontal Round Bottle Labeling Machine
Speed
50-300pcs/min
Labeling speed
50 to 300 pcs per minute horizontal rolling label output

Compare models by product, pack format and target output to find the right equipment for your process.

Discuss this application

Share your material, container and target output.

Requesting a quote for: HC-150

Your name * Work email Country / region * WhatsApp (email or WhatsApp is required) Product / material Container / package Target output

Provide at least one contact method: work email or WhatsApp.

For an equipment recommendation, provide at least one: product/material, container/package, or target output.

Add voltage, timing, image or notes (optional)

Company

Voltage / frequency Purchase timing

Bottle, package or material image (optional, max 8 MB) Anything else we should know?

MOQ 1 unit. Request a quote for your configuration.

Product details

Configuration, structure and application reference

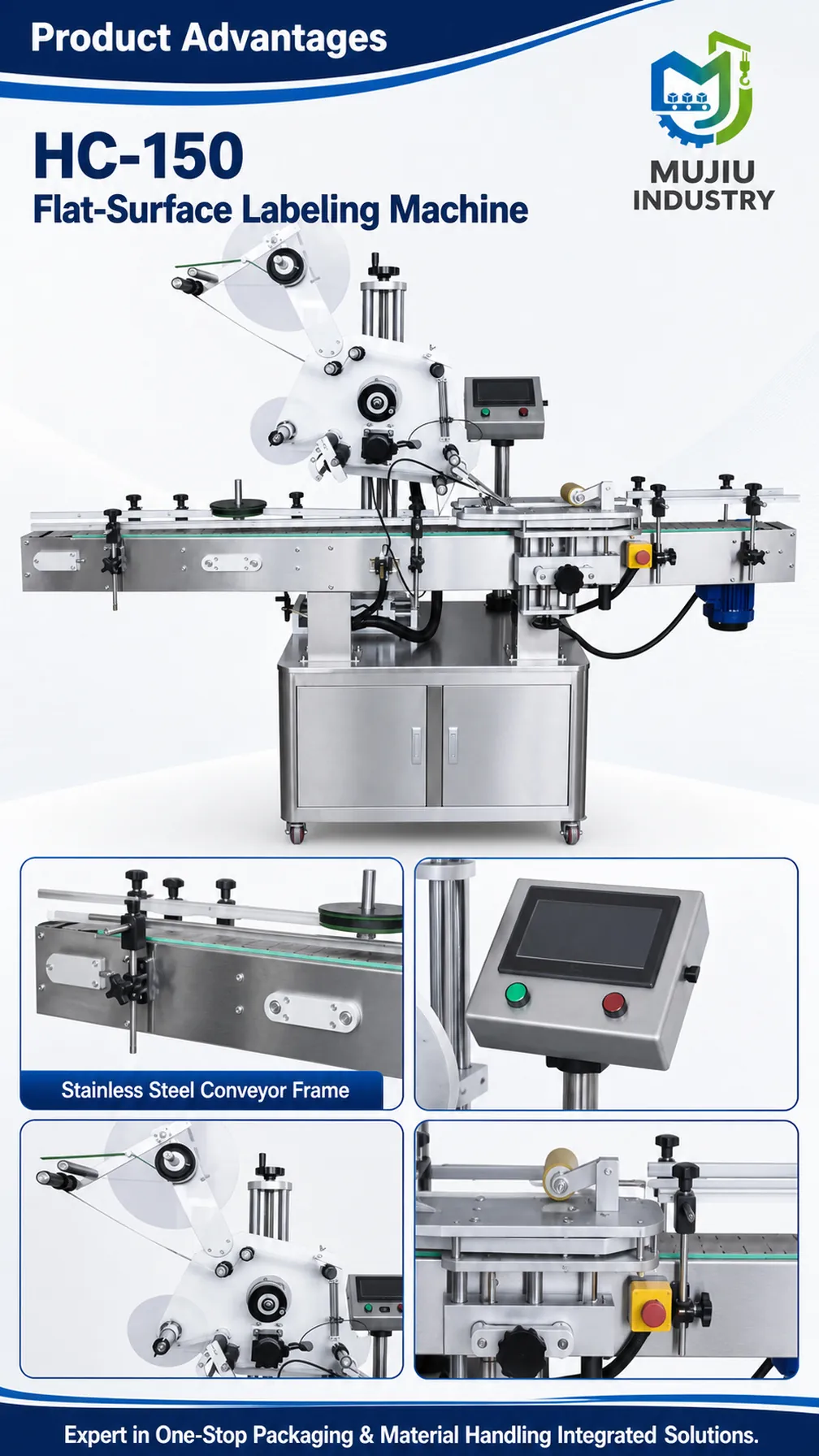

View detail photos and dimensions (6)

FAQ

Questions before you choose a configuration

Share the details below and we will use them to prepare a focused recommendation.

How does HC-150 apply labels?

The sensor finds the label on the roll and applies it to the set position as the pack passes. Send label size, roll direction, pack drawings and target speed.

What can be customized?

Applicator height, label width, wrap or front/back application, and voltage can be customized to your pack.

Can one machine cover several pack sizes?

Yes after each size is reviewed. Send the size range and we will confirm change parts and changeover time with the quotation.

Can you customize voltage and plug?

Yes. Common options include 110 V 60 Hz, 220 V 50 Hz and 230 V 50 Hz. Tell us the destination country, voltage, frequency and plug type with your inquiry.

Can you test this machine before shipment?

Yes. We can run the machine built for your order, share photos or a test video, and use your sample when it is suitable. Tell us the material and pack you want tested.

Do you supply spare parts for this model?

Yes. Wearing parts for this model, such as seals, tubes, heaters, sensors or belts, can be supplied with the machine or later. List the parts you want quoted.
