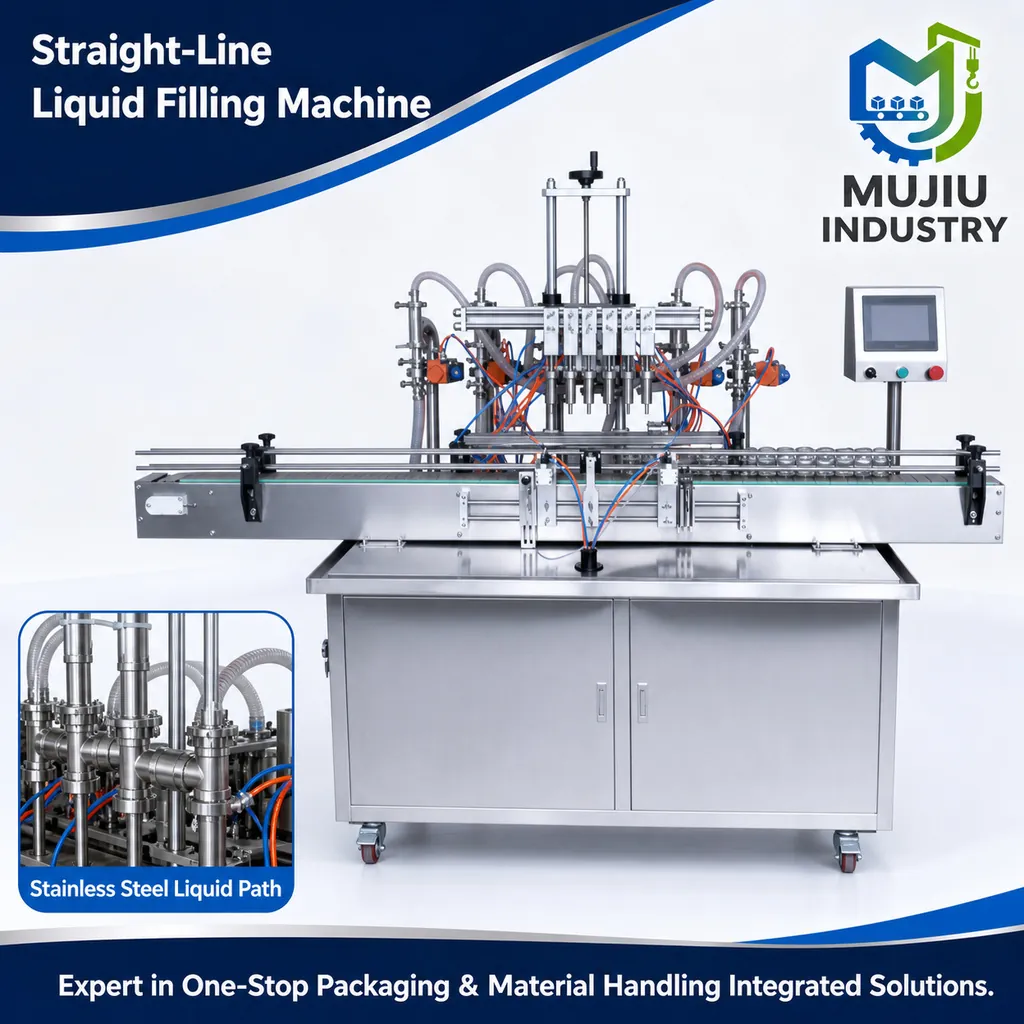

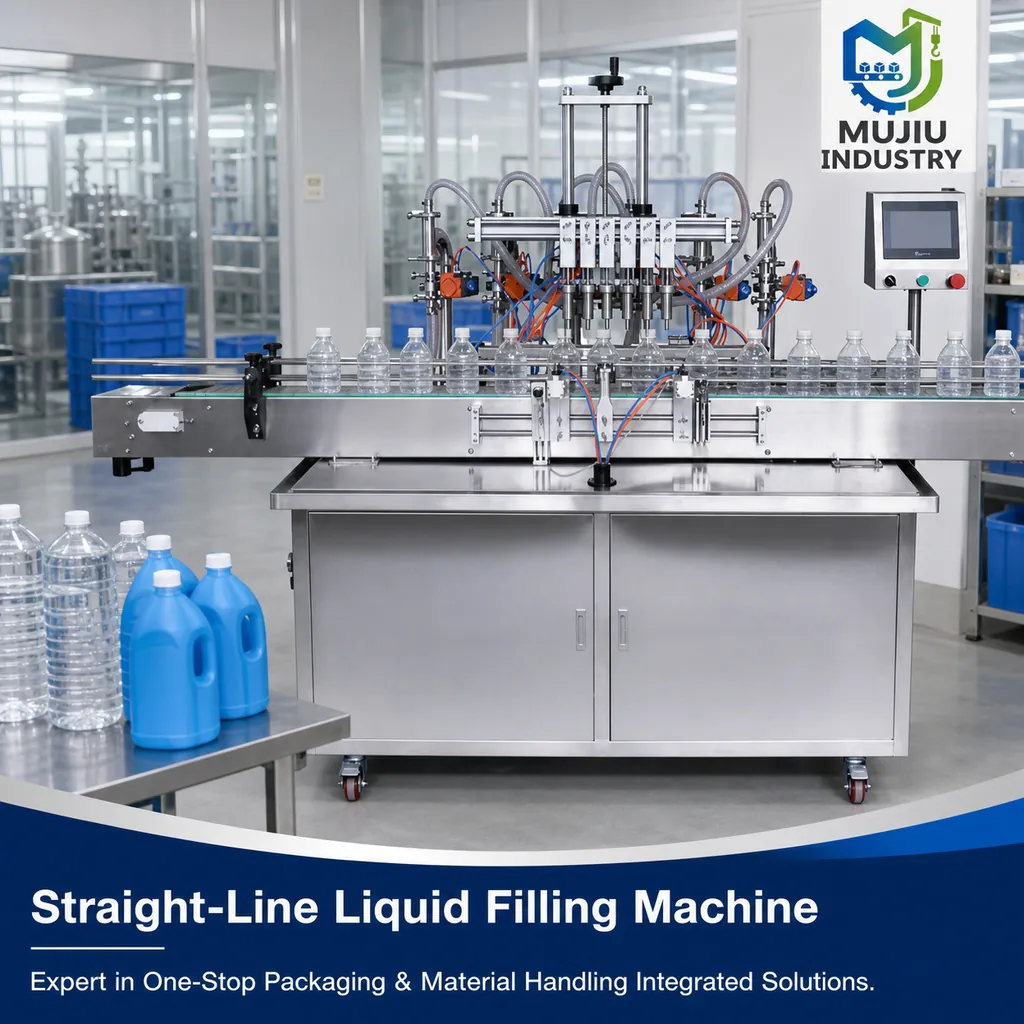

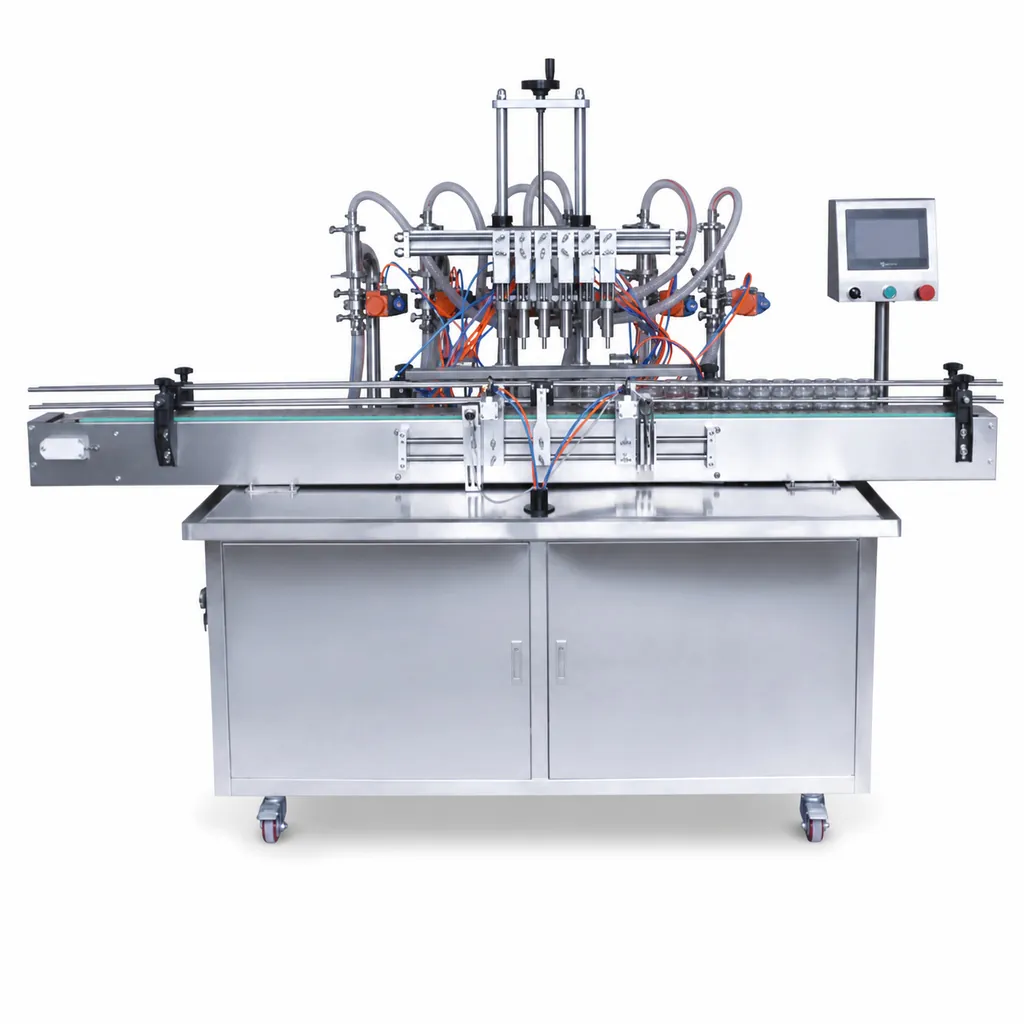

HC-009 Linear Multi-Nozzle Liquid Filling Machine

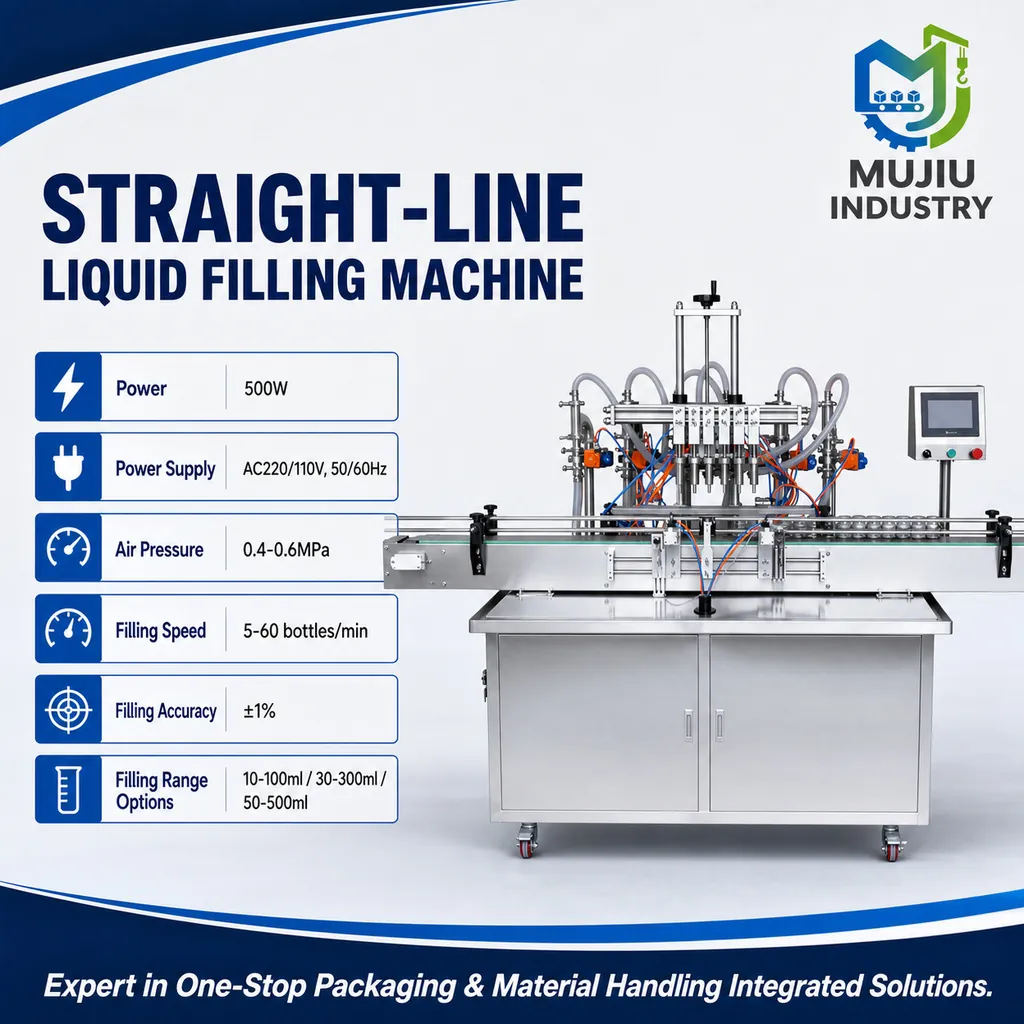

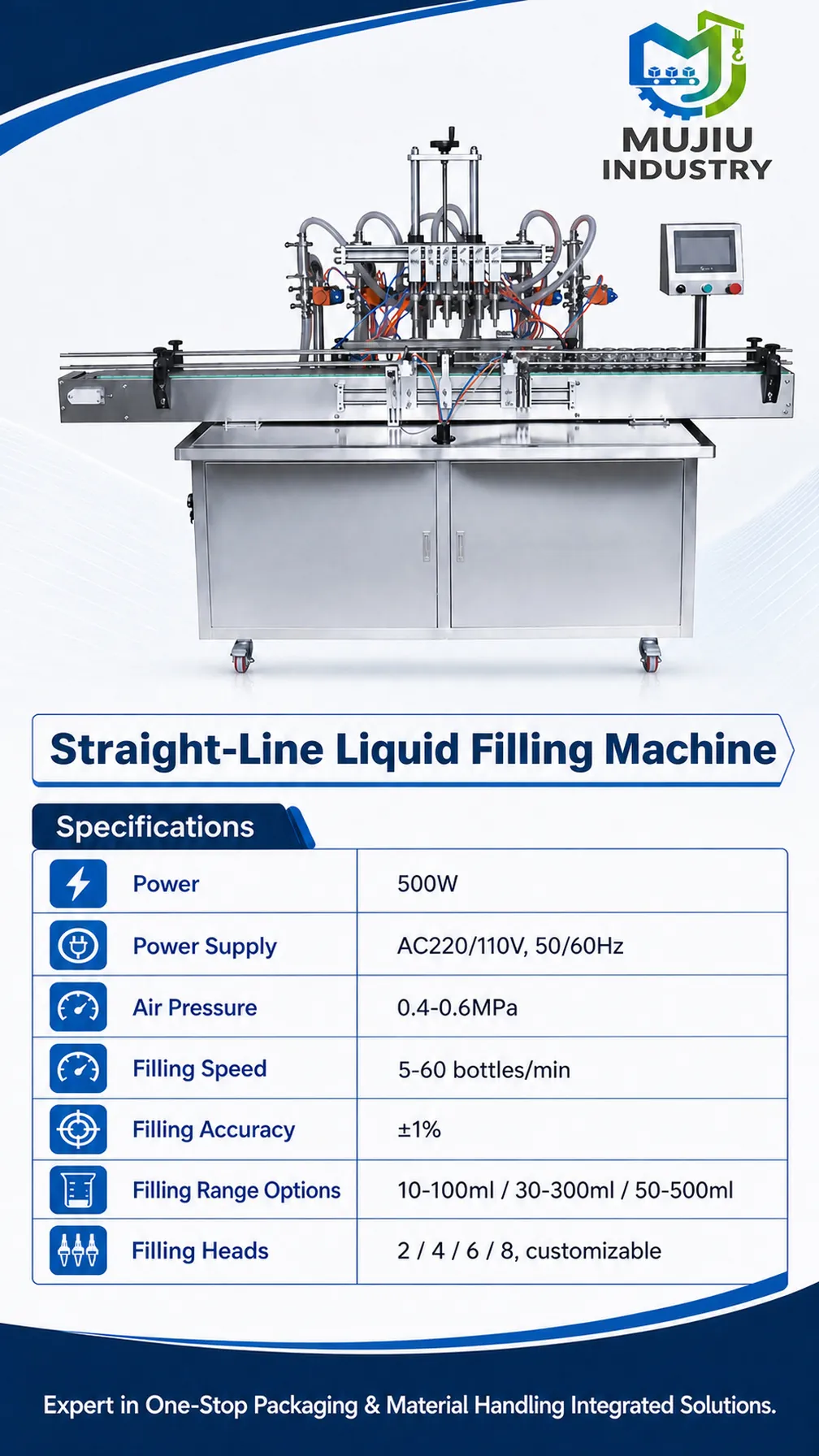

Technical Specifications

Model	HC-009
Pack format / Container	Bottle
Drive system	Pneumatic and Electric
Warranty	1 Year
Dimensions (L × W × H)	Customizable
Automation	Automatic
Container / packaging material	Glass; PET; HDPE; PP
Voltage	110 V; 220 V; Customizable
Suitable material	Water-Like Liquids; Purified Water; Beverages; Tea Drinks; Cleaning Liquids; Liquid Detergents; Other Free-Flowing Liquids
Filling accuracy	±1%
Weight (kg)	150

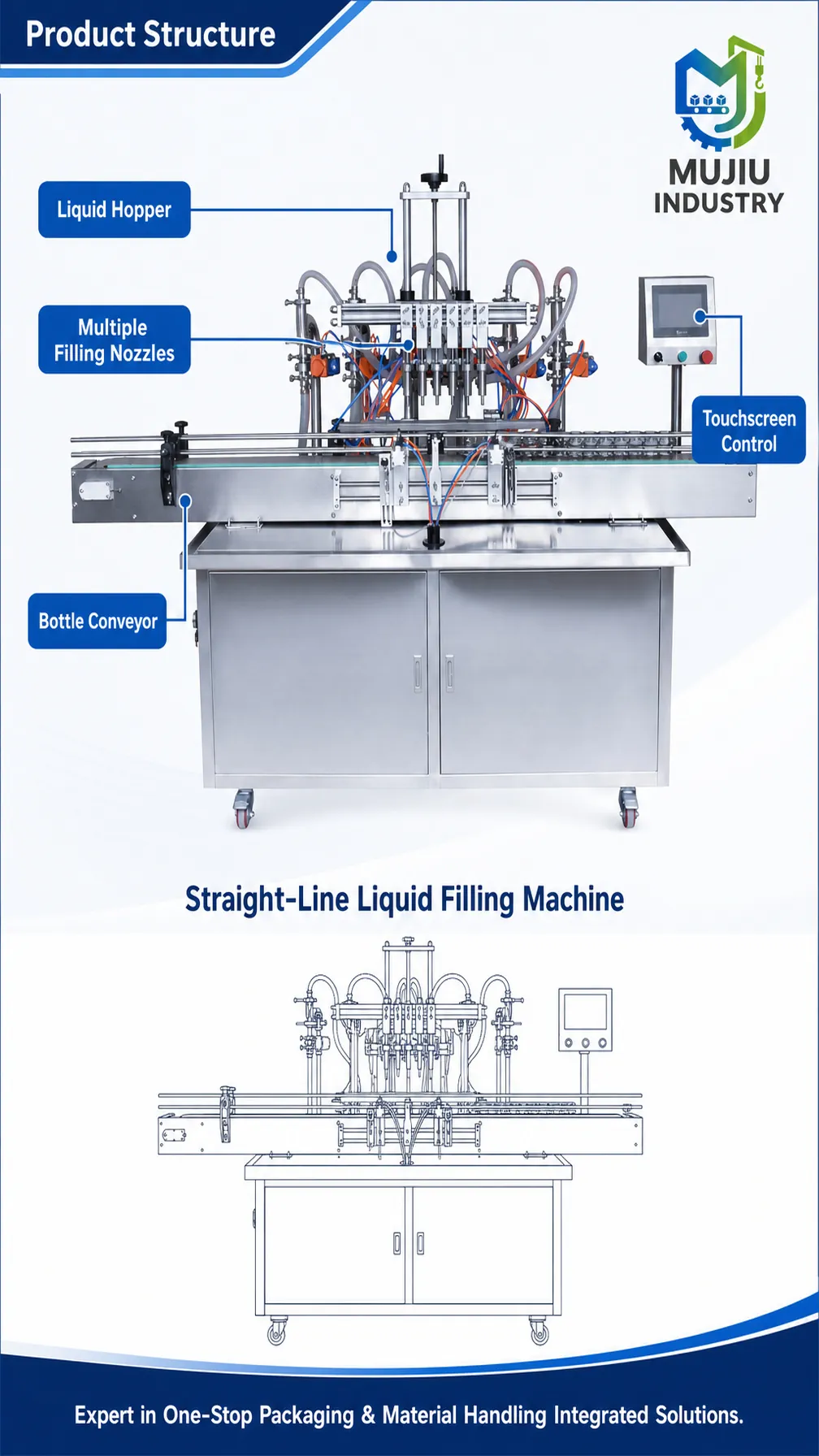

Main components	PLC Control System; Liquid Hopper; Multiple Filling Nozzles; ouchscreen and Bottle Conveyor
Filling nozzles	2; 8; 6; 4; Customizable
Filling range	10-100 ml; 30-300 ml; 50-500 ml
Rated power	500 W
Production capacity	5-60 Bottles/min
MOQ	1 unit
Lead time	10 days for 1 unit

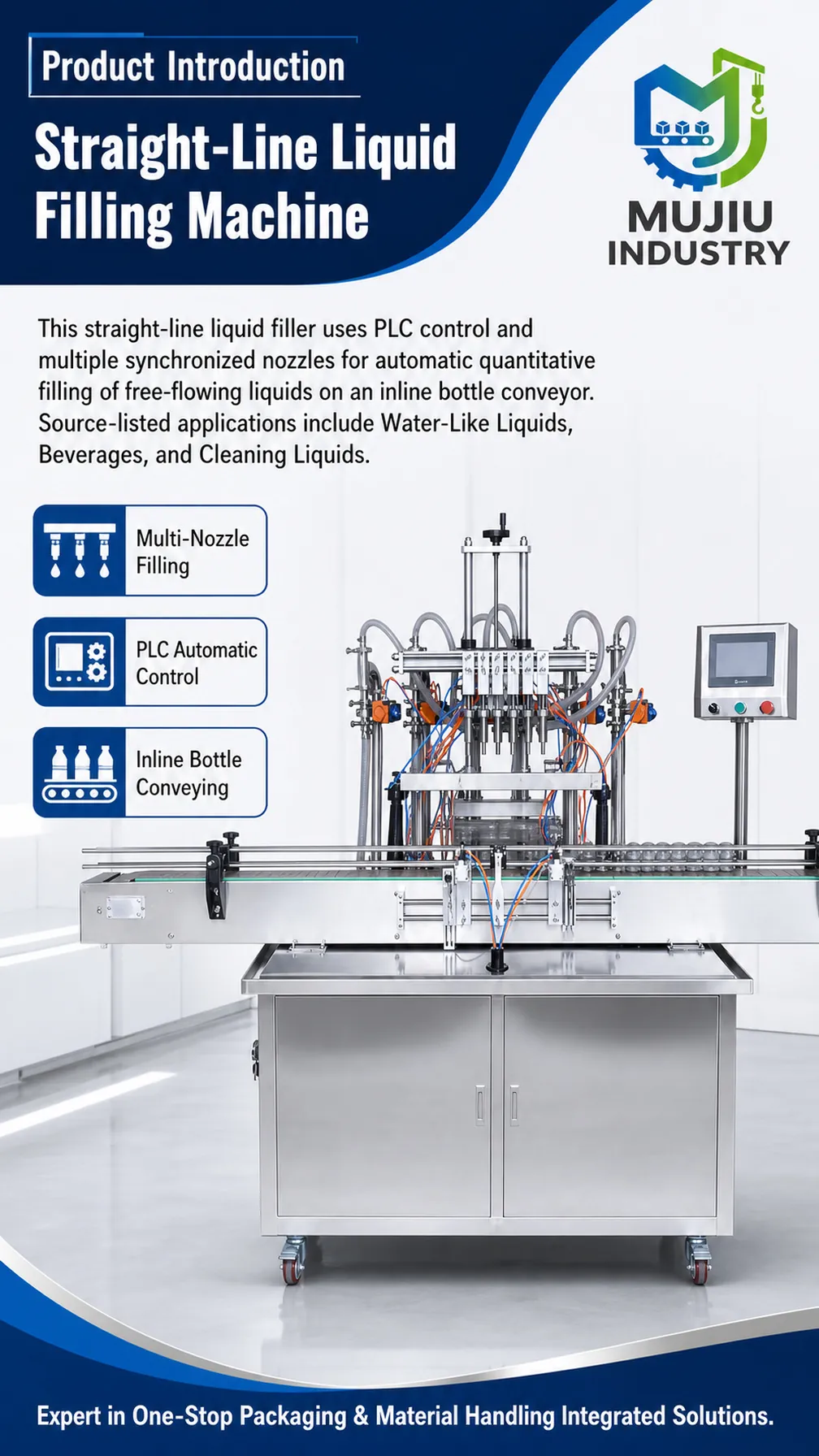

Product Overview

HC-009 is a linear multi-nozzle liquid filling machine. Suitable materials: Water-Like Liquids; Purified Water; Beverages; Tea Drinks; Cleaning Liquids; Liquid Detergents; Other Free-Flowing Liquids. Packaging: Bottle.

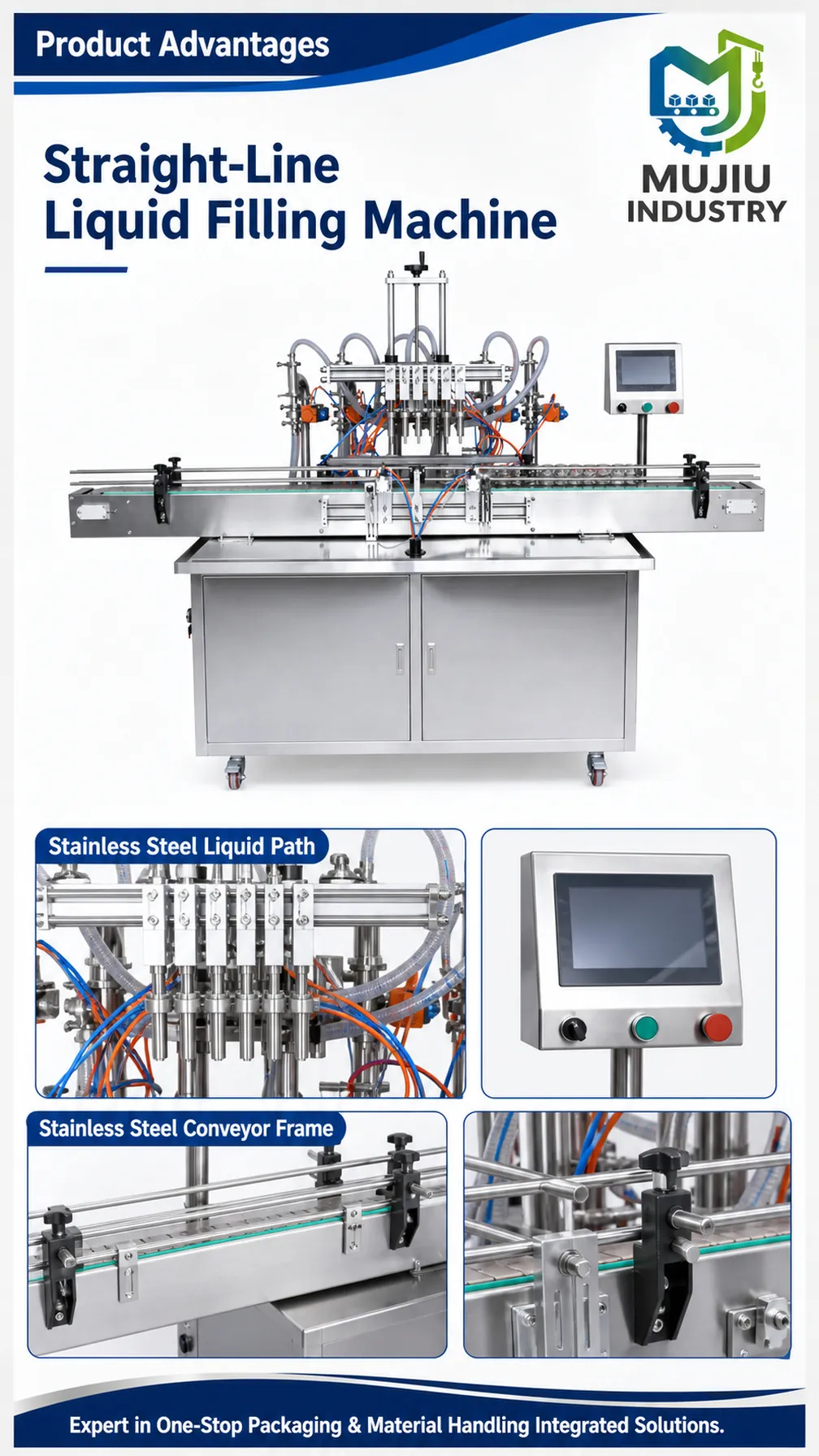

Product Highlights

Filling / dosing range: 10-100 ml; 30-300 ml; 50-500 ml
Output: 5-60 Bottles/min
Power supply: 500 W / 110 V; 220 V; Customizable
MOQ: 1 unit

Configuration Notes

Confirm the material, package format, target output, utilities and line interfaces before configuration. Final configuration depends on the confirmed material, package format, utilities and target output.

Configuration and Delivery

Standard configuration: Bottle; PLC Control System; Liquid Hopper; Multiple Filling Nozzles; ouchscreen and Bottle Conveyor; Pneumatic and Electric.

Options: Configuration options are confirmed against the selected application and machine format. Cleaning and changeover requirements are confirmed against the material and package format. Maintenance points are confirmed with the selected machine configuration.

Export packing: Export packing requirements are confirmed before shipment. Warranty: 1 Year.

Tell us your material, container dimensions and target output. We will help you choose the machine configuration. Contact us for the lead time of customized configurations.

Working process

From product feeding to the next production step.

Containers or packs enter the first station of the HC-009 line.
Filling, capping, labeling or other quoted stations run in sequence.
Each station hands the pack to the next at the agreed height and speed.
Accepted packs discharge at the end of the line.
Station combination, layout, utilities and change parts can be customized to your process.

Continue your equipment selection

Browse this product category: Liquid & Paste Filling Machines

Compare related models

HC-008 Linear Piston Paste Filling Machine
Filling range
10-100 ml; 30-300 m; 50-500 ml
Filling ranges
10-100 ml / 30-300 ml / 50-500 ml
AT-KLJ-L2 Piston Sauce Filling Machine
Filling / weighing range
100mL-1000mL
Speed
0–20 bottles/min (by product, dose and pack format)
AT-KLJ-L4 Four Head Piston Filling Machine
Filling / weighing range
100mL-1000mL
Speed
Up to 40 bottles/min (by product, dose and pack format)

Compare models by product, pack format and target output to find the right equipment for your process.

Discuss this application

Share your material, container and target output.

Requesting a quote for: HC-009

Your name * Work email Country / region * WhatsApp (email or WhatsApp is required) Product / material Container / package Target output

Provide at least one contact method: work email or WhatsApp.

For an equipment recommendation, provide at least one: product/material, container/package, or target output.

Add voltage, timing, image or notes (optional)

Company

Voltage / frequency Purchase timing

Bottle, package or material image (optional, max 8 MB) Anything else we should know?

MOQ 1 unit. Request a quote for your configuration.

Product details

Configuration, structure and application reference

View detail photos and dimensions (6)

FAQ

Questions before you choose a configuration

Share the details below and we will use them to prepare a focused recommendation.

What stations are in HC-009?

The line runs the quoted stations in sequence, such as filling, capping and labeling. Send your process list, container drawings and target output so we can confirm the layout.

What can be customized on the line?

Station combination, conveyor height, layout direction, utilities, change parts and voltage can be customized to your room and process.

How do we confirm line speed?

Share material, container, cap or label, and target packs per minute. We will recommend a configuration and the test packs to run before shipment.

Can you customize voltage and plug?

Yes. Common options include 110 V 60 Hz, 220 V 50 Hz and 230 V 50 Hz. Tell us the destination country, voltage, frequency and plug type with your inquiry.

Can you test this machine before shipment?

Yes. We can run the machine built for your order, share photos or a test video, and use your sample when it is suitable. Tell us the material and pack you want tested.

Do you supply spare parts for this model?

Yes. Wearing parts for this model, such as seals, tubes, heaters, sensors or belts, can be supplied with the machine or later. List the parts you want quoted.
