Product Highlights

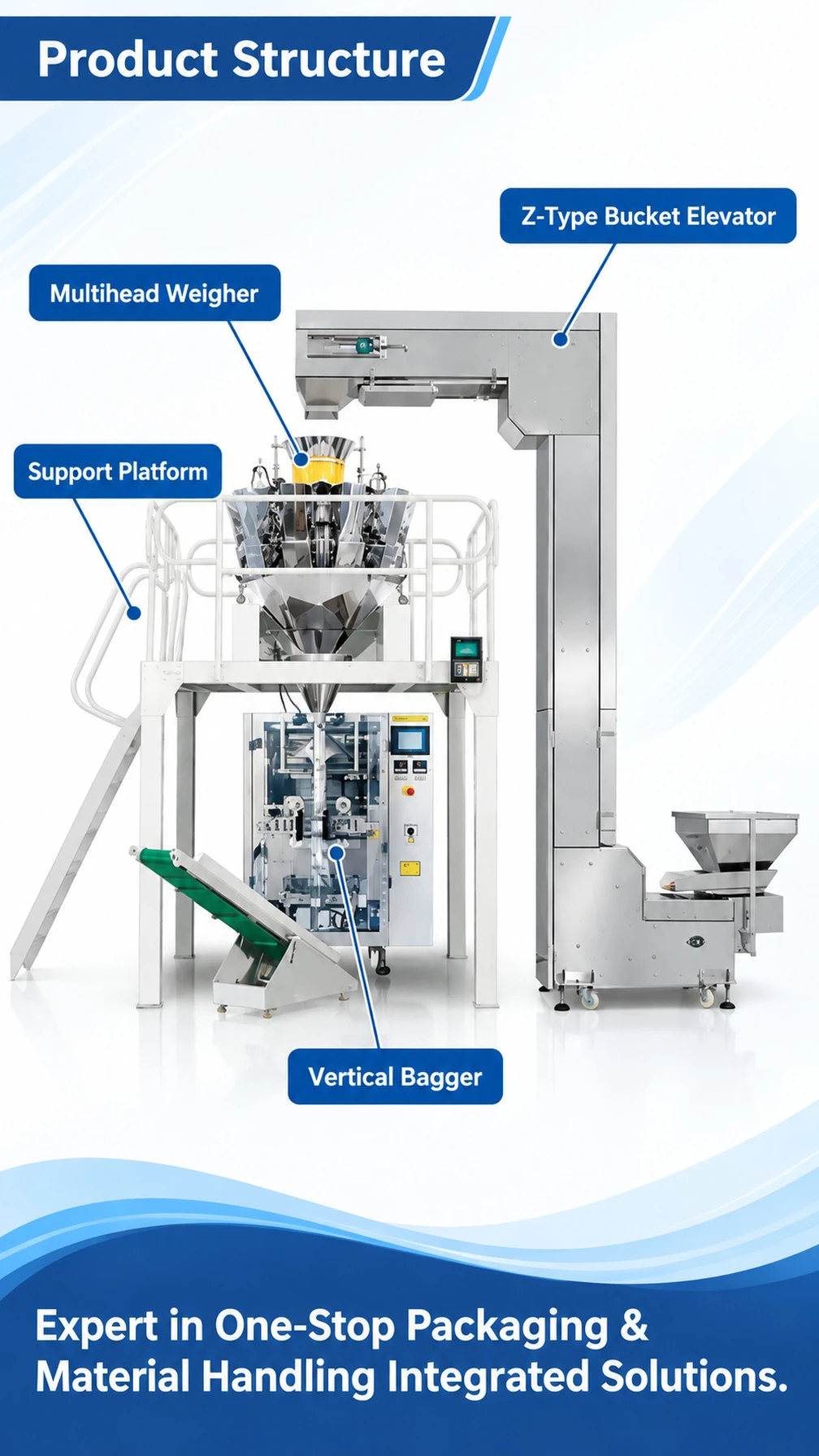

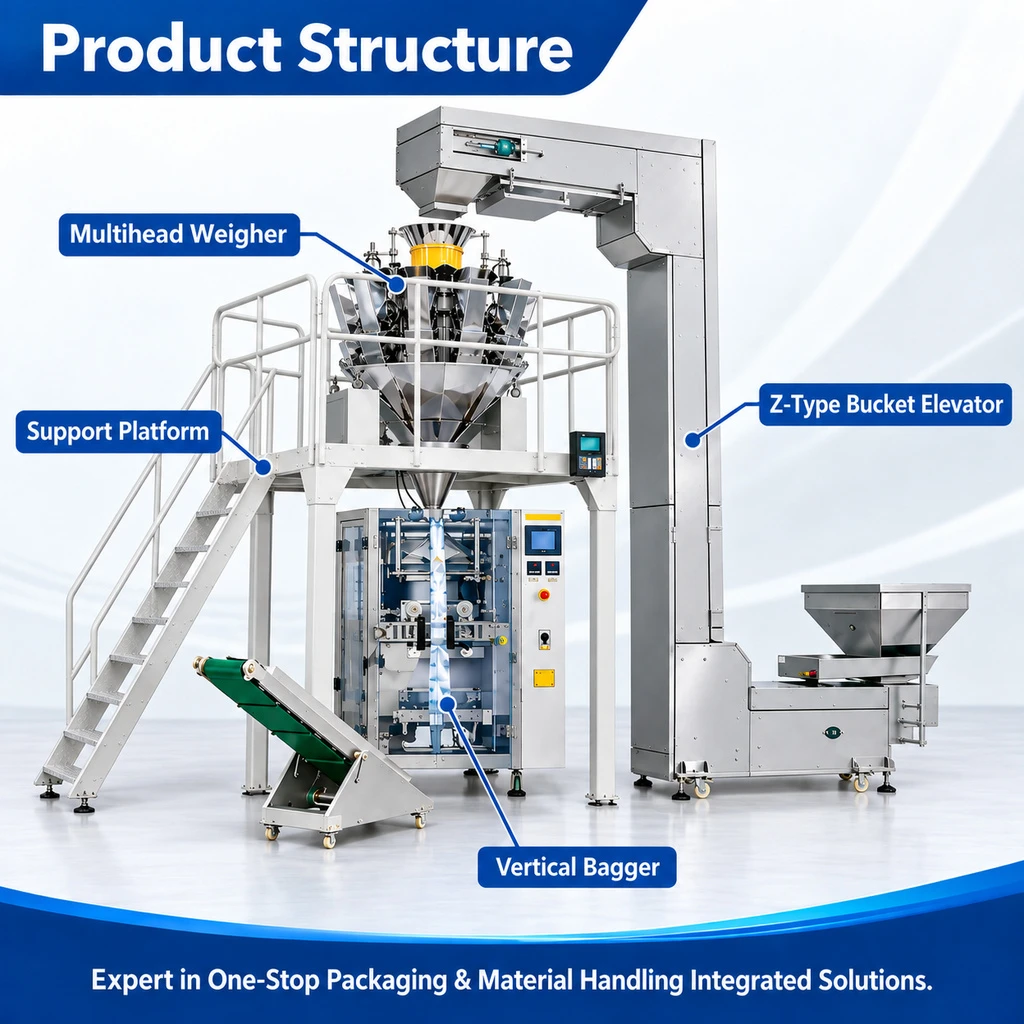

- Elevator feeding, multihead weighing, bag forming, sealing, coding and finished-bag conveyance.
- CYL-420 — host specifications: CYL-420: max film 420 mm; bag length 80-300 mm, width 60-200 mm; 5-60 bags/min; metering 150-1500 ml; film thickness 0.04-0.08 mm; 220 V, 50/60 Hz; 2.2 kW; host size 1217x1015x1343 mm; host net weight 650 kg.
- CYL-520 — host specifications: CYL-520: max film 520 mm; bag length 80-350 mm, width 50-250 mm; 5-60 bags/min; metering 150-2000 ml; film thickness 0.04-0.08 mm; 220 V, 50/60 Hz; 2.5 kW; host size 1510x1260x1600 mm; host net weight 680 kg.
Application and configuration

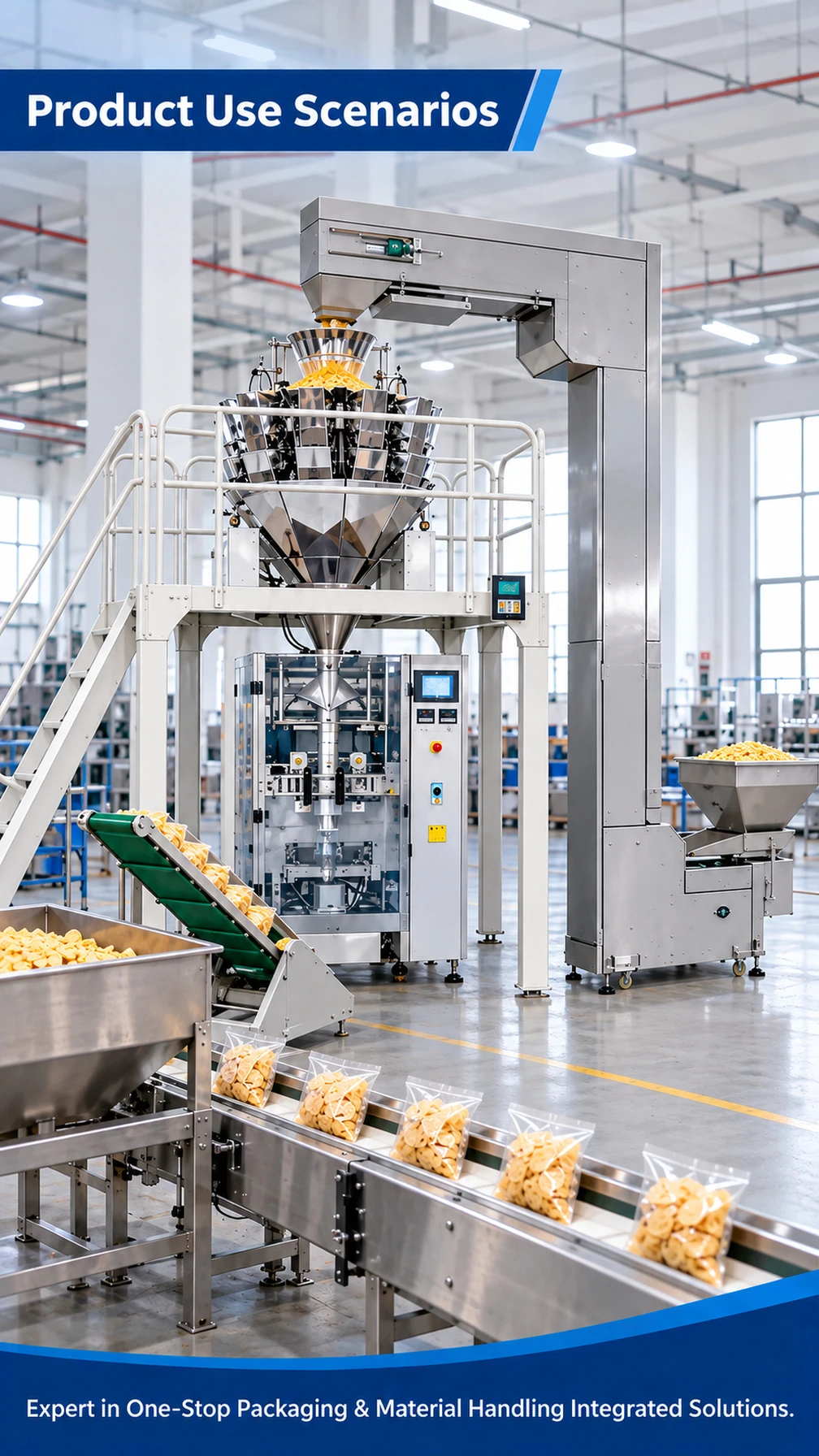

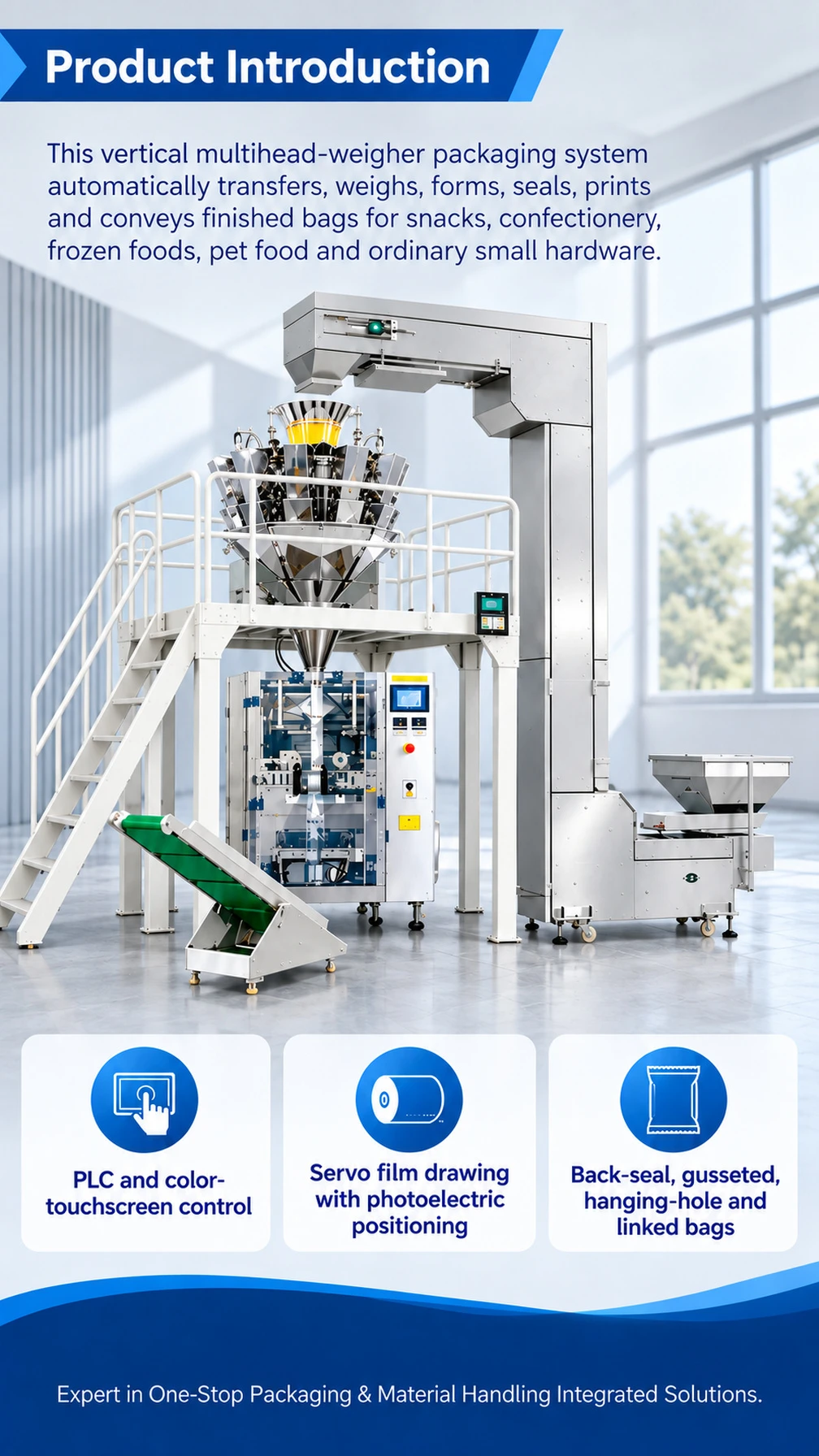

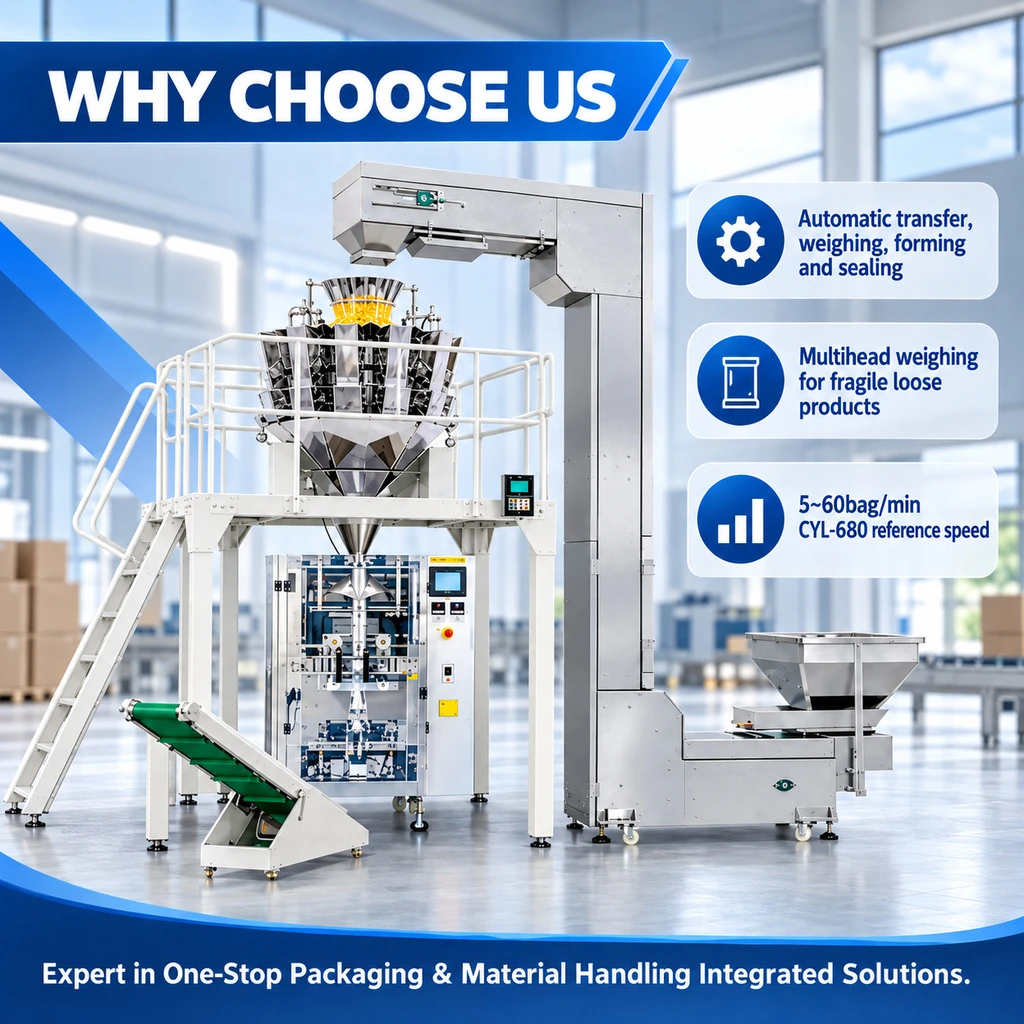

CYL Series Vertical Packaging Machine with Multihead Weigher for fragile bulk foods, candy, pet food and small hardware, using film-formed bags. Elevator feeding, multihead weighing, bag forming, sealing, coding and finished-bag conveyance.
Elevator feeding, multihead weighing, bag forming, sealing, coding and finished-bag conveyance.
Specify your product and package
Confirm the host variant, material dimensions, dose, bag size and weigher configuration. Include photos or drawings of the package and the material-contact surfaces. State the target output, available electrical supply and working area. If this machine will connect to other equipment, include the upstream and downstream machine dimensions and the conveyor height.
Specify the configuration in your inquiry so the dose, package handling and line interface can be matched together. For multiple package sizes, list each size and the expected changeover frequency. Keep the selected configuration and format requirements together in the order specification.
Working process
From product feeding to the next production step.
- Elevator feeding, multihead weighing, bag forming, sealing, coding and finished-bag conveyance.
