ModellHC-05

HC-05 4-Kopf-Granula-Wiege — Wiegen

Konfigurationsempfehlung erhalten →

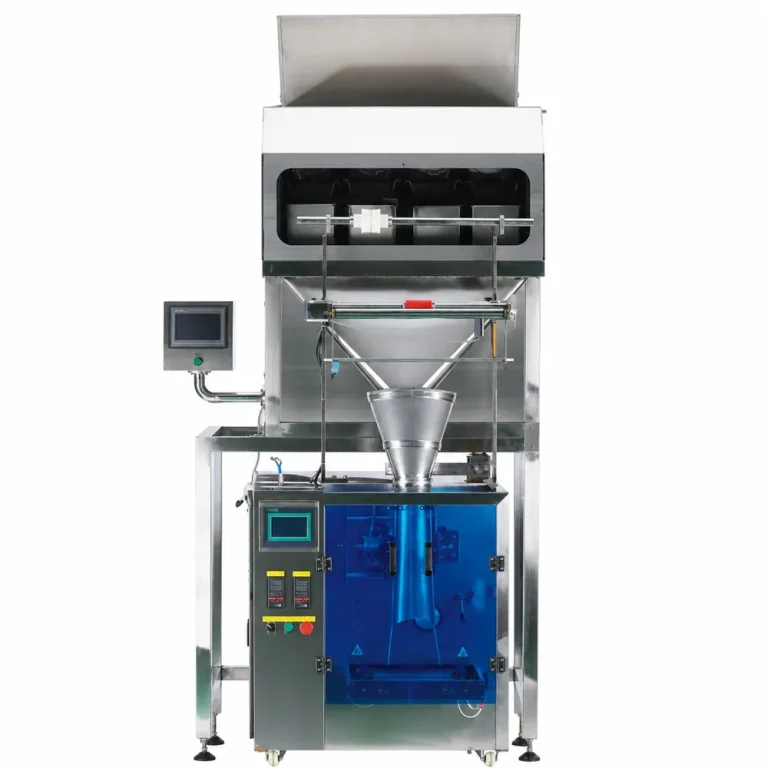

Fully Automatic Four-Head Quantitative Packing Machine 20-1000g VFFS Vertical Form Fill Seal for Granules - Main image 1

HC-05 verwendet vier Waagen, um körnige Produkte zu dosieren. Füll-/Wägebereich: 20g - 1000g.

Material
Frei fließendes Granulat, geeignet für lineares/Trichterwiegen; Stückgröße und Zerbrechlichkeit bestätigen.
Behälter
Beutel, Beutel
Leistung
10–60 bags/min (by product, dose and pack format)
Stromversorgung
, 220 V, 110 V
Mindestbestellmenge
1 unit
Lieferzeit
10 Tage
Garantie
1 Jahr
Konfigurationsempfehlung erhalten View Specifications →

Share material, package format and target output to confirm configuration.

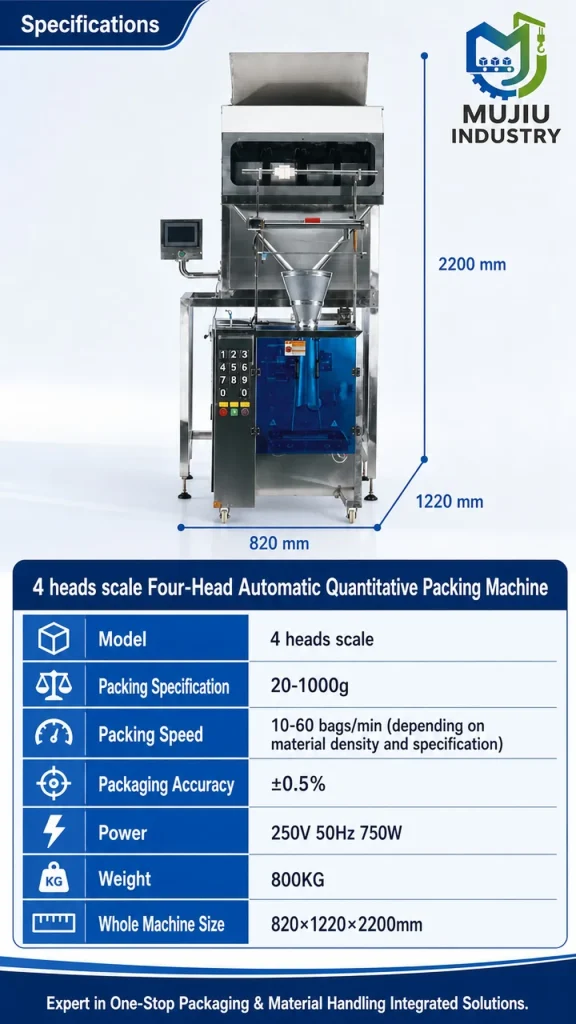

Technische Spezifikationen

MaterialFließfähiges Granulat für lineares/trichterförmiges Wiegen
Verpackungsformat/ContainerBeutel, Beutel
Füll-/Wägebereich20g - 1000g
Drehzahl10–60 Beutel/Minute (nach Produkt, Dosis und Packungsformat)
Genauigkeit±0.5%
Leistung/Spannung, 220 V, 110 V
Garantie1 Jahr
Vorlaufzeit10 Tage
MOQ1 Einheit
AutomatisierungAutomatik
Abmessungen der Maschine (L × W × H)82*122*220 cm
Maschinengewicht (kg)800

Produktübersicht

HC-05 verwendet vier Waagen, um körnige Produkte zu dosieren.

Working process

From product feeding to the next production step.

  1. Load free-flowing granules into the feed hopper of HC-05.
  2. Vibratory feeders move product into the weighing hoppers.
  3. Each hopper weighs to the target portion, then discharges into your bag or container.
  4. Reset the target weight and start the next cycle.

Product details

View detail photos and dimensions (6)

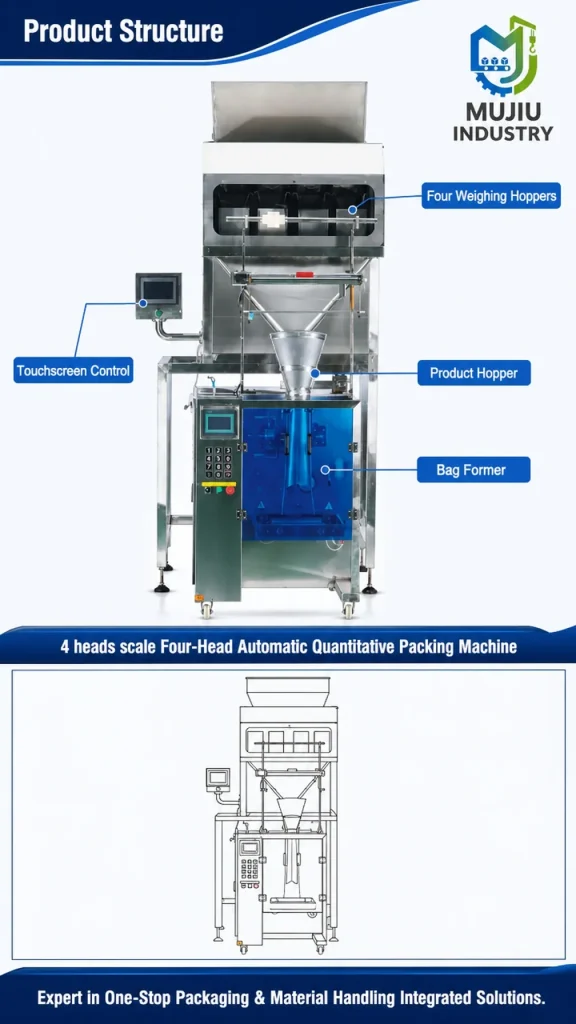

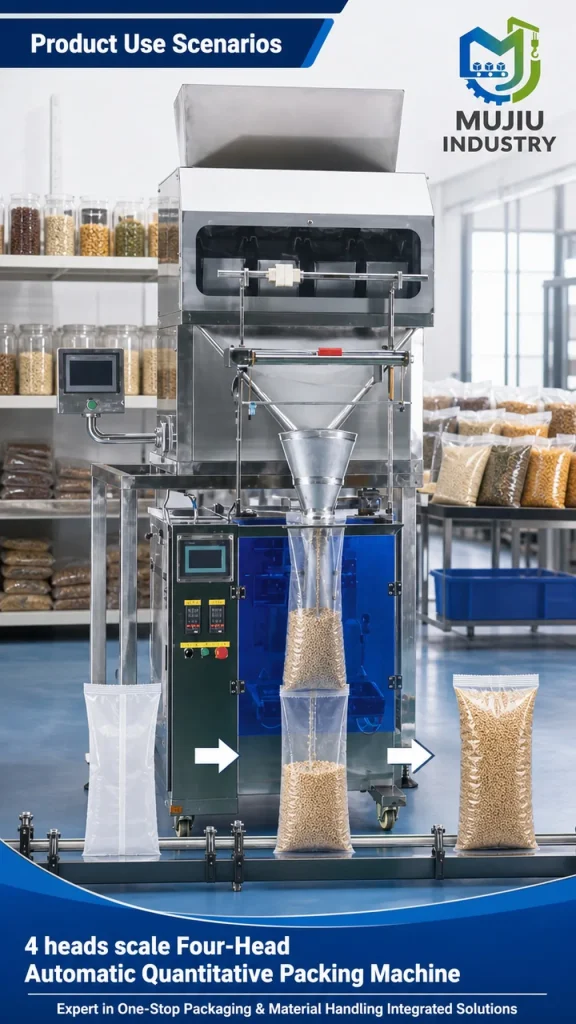

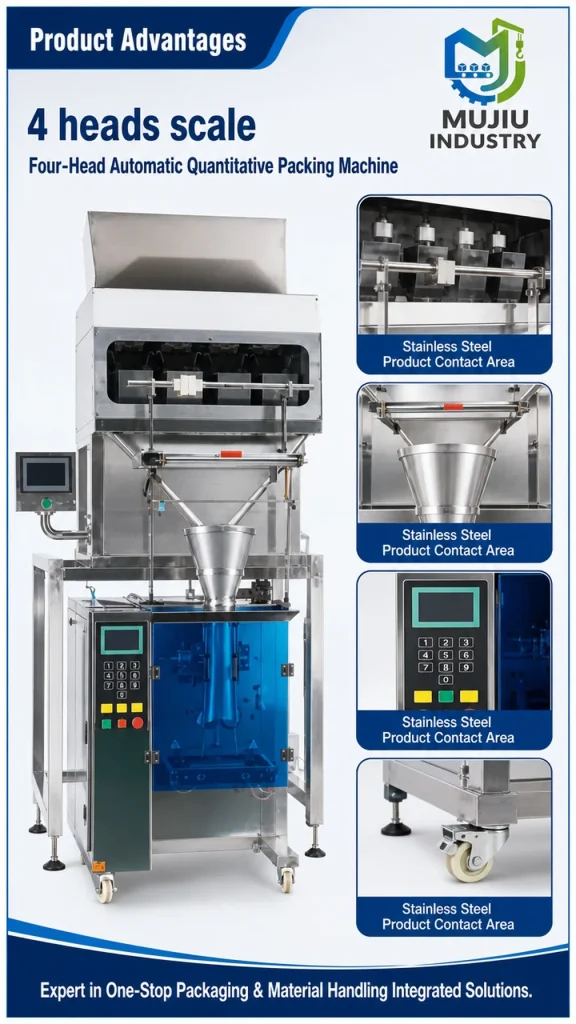

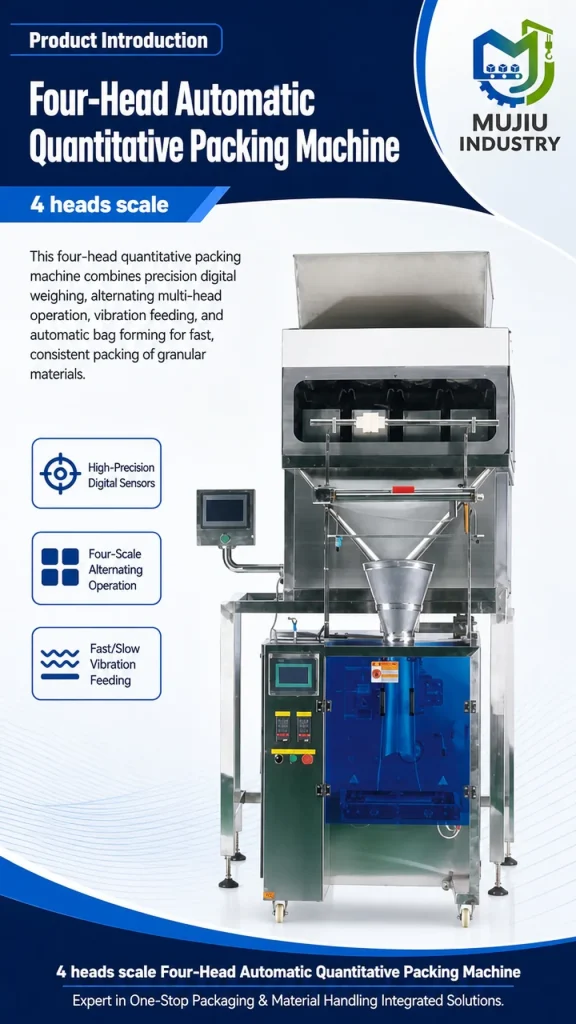

Fully Automatic Four-Head Quantitative Packing Machine 20-1000g VFFS Vertical Form Fill Seal for Granules - Detail image 1
Fully Automatic Four-Head Quantitative Packing Machine 20-1000g VFFS Vertical Form Fill Seal for Granules - Detail image 2
Fully Automatic Four-Head Quantitative Packing Machine 20-1000g VFFS Vertical Form Fill Seal for Granules - Detail image 3
Fully Automatic Four-Head Quantitative Packing Machine 20-1000g VFFS Vertical Form Fill Seal for Granules - Detail image 4
Fully Automatic Four-Head Quantitative Packing Machine 20-1000g VFFS Vertical Form Fill Seal for Granules - Detail image 5
Fully Automatic Four-Head Quantitative Packing Machine 20-1000g VFFS Vertical Form Fill Seal for Granules - Detail image 6

FAQ

Fragen vor der Auswahl einer Konfiguration

Share the details below and we will use them to prepare a focused recommendation.

What can be customized?

Send the changes you need together with your product, package and site power details. We will prepare a configuration proposal for this model.

Which products fit?

Free-flowing seeds, grains, beans, sugar and similar. Sticky/fragile need a sample.

What should I send?

Product name, piece size, weighment range, target weighs/min, destination voltage.
