ModellAT-DXDK-420

AT-DXDK-420 Granula Sachet Packmaschine — VFFS Sachet

Konfigurationsempfehlung erhalten →

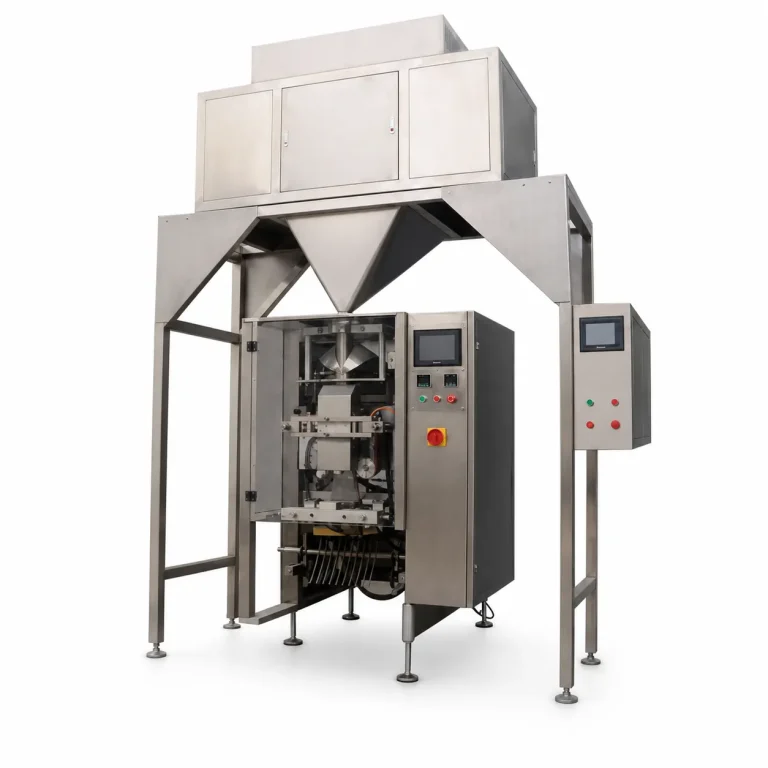

Automatic 2kg Four-Hopper Granule Packaging Machine AT-DXDK-420 VFFS Roll Film Bagging Machine for Rice Seedsxq - Main image 1

AT-DXDK-420 verwendet vier lineare Wägetrichter in einer Granulatverpackungsmaschine. Füll-/Wägebereich: 100-2000G.

Material
Fließfähiges Granulat, geeignet für Becherdosierung oder Mehrkopfwiegen; Stückgröße und Staubbildung bestätigen.
Behälter
Taschen, Beutel, Stand-up-Beutel, Woven Bag, Kraft Paper Bag
Leistung
Up to 30 bags/min (by product, dose and pack format)
Stromversorgung
110 V, 220 V
Mindestbestellmenge
1 unit
Lieferzeit
10 Tage
Garantie
1 Jahr
Konfigurationsempfehlung erhalten View Specifications →

Share material, package format and target output to confirm configuration.

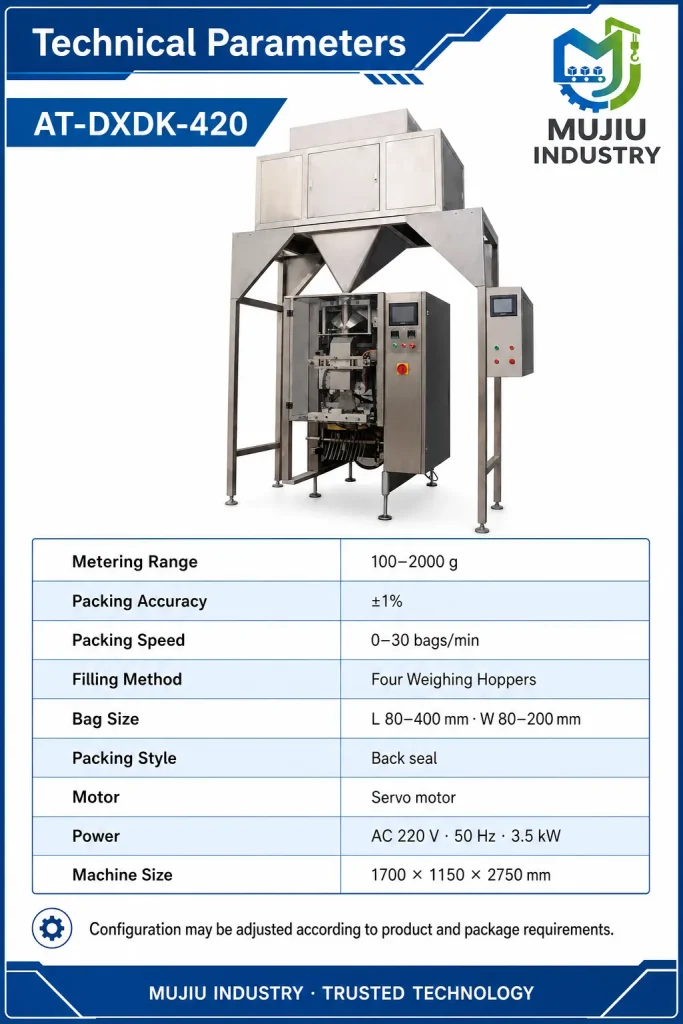

Technische Spezifikationen

MaterialFließfähiges Granulat, geeignet zur Becherdosierung oder zum Wiegen mit mehreren Köpfen
Verpackungsformat/ContainerTaschen, Beutel, Stand-up-Beutel, Woven Bag, Kraft Paper Bag
Füll-/Wägebereich100-2000G
Drehzahlbis zu 30 Beutel/Minute (nach Produkt, Dosis und Packungsformat)
Genauigkeit±1%
Leistung/Spannung110 V, 220 V
LeistungAC 220V 50Hz, 3.5kW Hochleistungs-Industriestromunterstützung
Garantie1 Jahr
Vorlaufzeit10 Tage
MOQ1 Einheit
AutomatisierungAutomatik
Abmessungen der Maschine (L × W × H)170*115*275 cm
Maschinengewicht (kg)300

Produktübersicht

AT-DXDK-420 verwendet vier lineare Wägetrichter in einer Granulatverpackungsmaschine.

Working process

From product feeding to the next production step.

  1. Film is formed into a bag on AT-DXDK-420.
  2. Four linear weighing hoppers dose granules into the formed bag.
  3. The bag is sealed and cut.
  4. Finished packs discharge for cartoning.

Product details

View detail photos and dimensions (6)

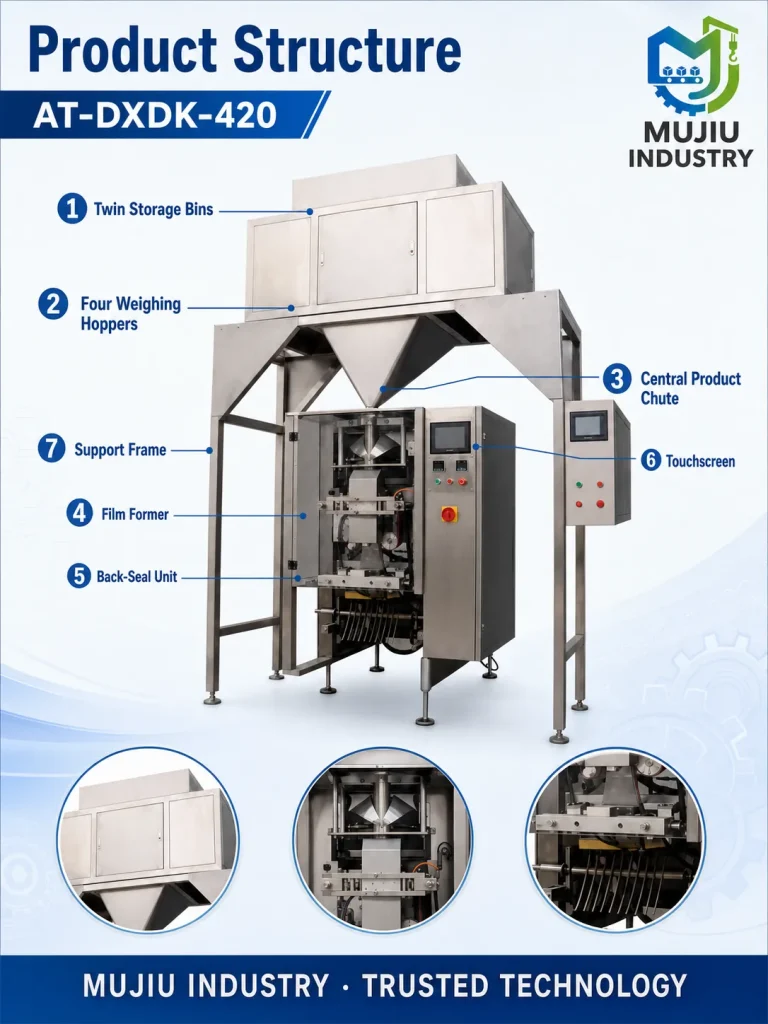

Automatic 2kg Four-Hopper Granule Packaging Machine AT-DXDK-420 VFFS Roll Film Bagging Machine for Rice Seedsxq - Detail image 1
Automatic 2kg Four-Hopper Granule Packaging Machine AT-DXDK-420 VFFS Roll Film Bagging Machine for Rice Seedsxq - Detail image 2
Automatic 2kg Four-Hopper Granule Packaging Machine AT-DXDK-420 VFFS Roll Film Bagging Machine for Rice Seedsxq - Detail image 3
Automatic 2kg Four-Hopper Granule Packaging Machine AT-DXDK-420 VFFS Roll Film Bagging Machine for Rice Seedsxq - Detail image 4
Automatic 2kg Four-Hopper Granule Packaging Machine AT-DXDK-420 VFFS Roll Film Bagging Machine for Rice Seedsxq - Detail image 5
Automatic 2kg Four-Hopper Granule Packaging Machine AT-DXDK-420 VFFS Roll Film Bagging Machine for Rice Seedsxq - Detail image 6

FAQ

Fragen vor der Auswahl einer Konfiguration

Share the details below and we will use them to prepare a focused recommendation.

What products is AT-DXDK-420 intended for?

AT-DXDK-420 is intended for Free-flowing granules suited to cup dosing or multi-head weighing; confirm piece size and dusting.. Final fit still depends on flow behavior, dose size and film/package format — send a sample or specs if the product is oily, sticky or fragile.

What package format does AT-DXDK-420 run?

Package formats: Bags, Pouch, Stand-up Pouch, Woven Bag, Kraft Paper Bag. Change parts may be required for a different bag style or cut shape.

What should we prepare before requesting a quotation for AT-DXDK-420?

Share target dose, bags per minute, film width/material, and whether you need date coding or hole punching. That is enough to confirm the working configuration for your target output.
