ModelTHB4-320AT

THB4-320AT Granule Sachet Ambalaj Makinesi – VFFS Sachet

Doldur / tarting range
1-10 g
Konfigürasyon önerisi alın →

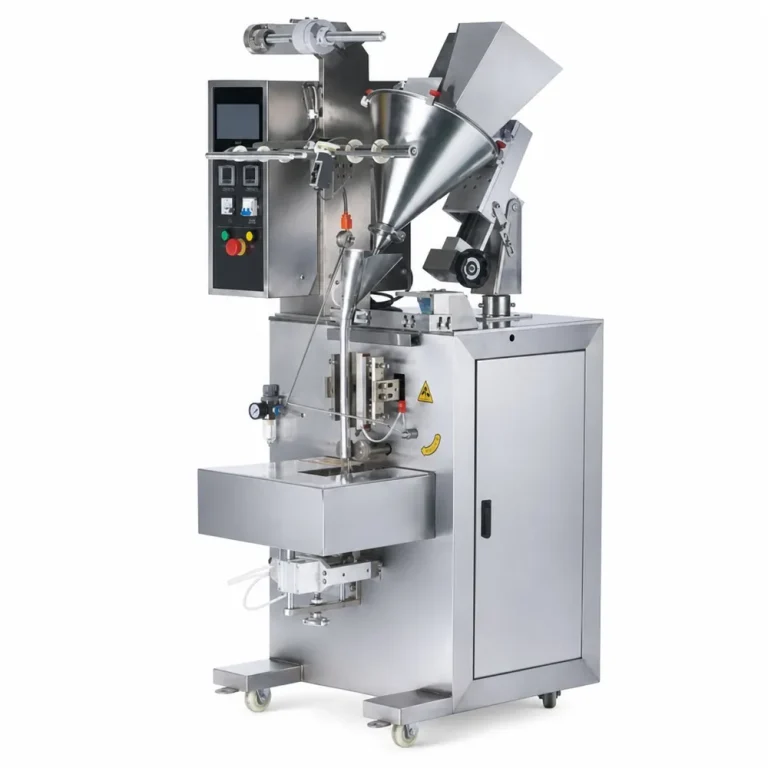

THB4-320AT Automatic Round-Corner Vertical Packing Machine for Sugar Oats Seasoning Sachet Pouch VFFS Filler - Main image 1

THB4-320AT Bir granül sachet paketleme makinesi yuvarlak-corner kesme ile. Dolgu / ağırlık aralığı: 1-10 g.

Malzeme
Dosing veya multi-head tartmak için uygun granüller; parça boyutunu ve tozlamayı doğrulayın.
Konteyner
Çanta, Sachet, Round-Corner Pouch, Back Seal Bag
Kapasite
32–72 bags/min (by product, dose and pack format)
Güç kaynağı
220 V V V
Minimum sipariş miktarı
1 unit
Teslim süresi
10 günler günler günler
Garanti
1 Yıl
Konfigürasyon önerisi alın View Specifications →

Share material, package format and target output to confirm configuration.

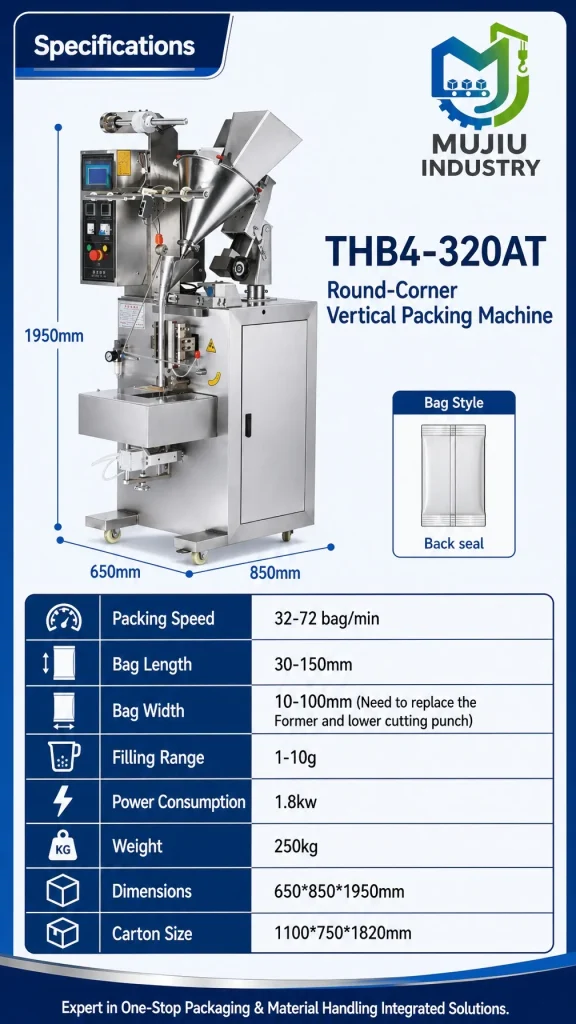

Teknik Özellikler Teknik Özellikler

Malzeme malzemesiÜcretsiz dolaşım malzemeleri fincan dosing veya multi-head tarting için uygundur
Pack format / KonteynerÇanta, Sachet, Round-Corner Pouch, Back Seal Bag
Doldur / tarting range1-10 g
Hız Hız Hız Hız32–72 bag/min (as ürün, doz ve paket formatı)
Güç / gerilim220 V V V
Garanti Garanti1 Yıl
Lead time10 günler günler günler
MOQ1 birim ünitesi ünitesi
doğruluk±1%
Ayılar1Volumetrik Cup / Auger
OtomasyonOtomatik Otomatik Otomatik Otomatik Otomatik
Makine boyutları (L × W × H)650*850*1950 mm mm mm mm
Makine ağırlığı (kg)250

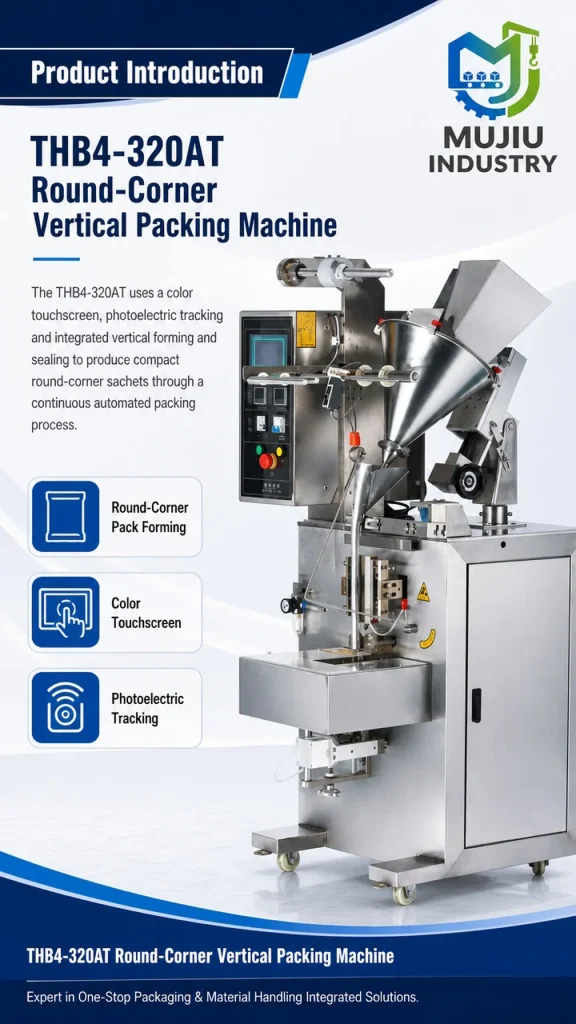

Ürün Genel Bakış

THB4-320AT Bir granül sachet paketleme makinesi yuvarlak-corner kesme ile.

Working process

From product feeding to the next production step.

  1. Film is formed into a bag on THB4-320AT.
  2. Dose the granule portion into the formed bag.
  3. The bag is sealed and cut.
  4. Finished packs discharge for cartoning.

Product details

View detail photos and dimensions (6)
THB4-320AT Automatic Round-Corner Vertical Packing Machine for Sugar Oats Seasoning Sachet Pouch VFFS Filler - Detail image 1
THB4-320AT Automatic Round-Corner Vertical Packing Machine for Sugar Oats Seasoning Sachet Pouch VFFS Filler - Detail image 2
THB4-320AT Automatic Round-Corner Vertical Packing Machine for Sugar Oats Seasoning Sachet Pouch VFFS Filler - Detail image 3
THB4-320AT Automatic Round-Corner Vertical Packing Machine for Sugar Oats Seasoning Sachet Pouch VFFS Filler - Detail image 4
THB4-320AT Automatic Round-Corner Vertical Packing Machine for Sugar Oats Seasoning Sachet Pouch VFFS Filler - Detail image 5
THB4-320AT Automatic Round-Corner Vertical Packing Machine for Sugar Oats Seasoning Sachet Pouch VFFS Filler - Detail image 6

SSS

Konfigürasyon seçmeden önce sorular

Share the details below and we will use them to prepare a focused recommendation.

What products is THB4-320AT intended for?

THB4-320AT is intended for Free-flowing granules suited to cup dosing or multi-head weighing; confirm piece size and dusting.. Final fit still depends on flow behavior, dose size and film/package format — send a sample or specs if the product is oily, sticky or fragile.

What package format does THB4-320AT run?

Package formats: Bags, Sachet, Round-Corner Pouch, Back Seal Bag. Change parts may be required for a different bag style or cut shape.

What should we prepare before requesting a quotation for THB4-320AT?

Share target dose, bags per minute, film width/material, and whether you need date coding or hole punching. That is enough to confirm the working configuration for your target output.
