ModeloHCB4-320C1-Z3D

HCB4-320C1-Z3D Máquina de embalagem Granule Sachet — VFFS Sachet

Obter recomendação de configuração →

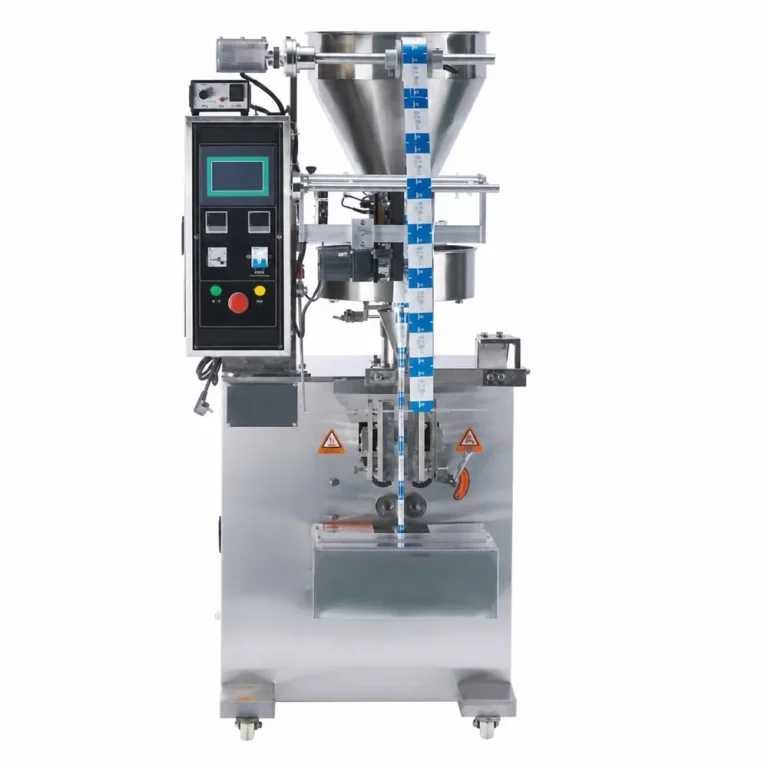

MUJIU HCB4-320C1-Z3D Automatic Particle Back-Seal Three-Side Packing Machine Rotary Cup Filling Bagging Machine - Main image 1

HCB4-320C1-Z3D usa dose de copo rotativo para embalagem de saqueta granular. Faixa de enchimento / pesagem: 22-220ml.

Material
grânulos de fluxo livre adequados para dosagem de copo ou pesagem multi-cabeça; confirmar o tamanho da peça e poeira.
Recipiente
Selo traseiro, 3-side selo, 4-side selo
Produção
Up to 100 bags/min (by product, dose and pack format)
Alimentação elétrica
220V 50Hz
Pedido mínimo
1 unit
Prazo de entrega
10 dias
Garantia
1 ano
Obter recomendação de configuração View Specifications →

Share material, package format and target output to confirm configuration.

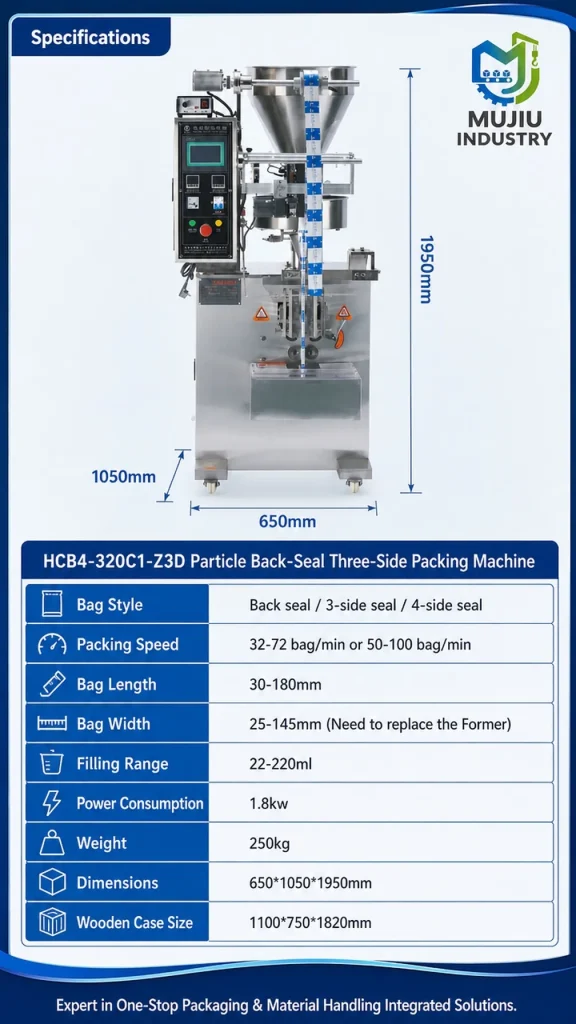

Especificações técnicas

Materialgrânulos de fluxo livre adequados para dosagem de copo ou pesagem multi-cabeça
Formato de embalagem / ContainerSelo traseiro, 3-side selo, 4-side selo
Faixa de enchimento / pesagem22-220ml
VelocidadeAté 100 sacos/min (por produto, dose e formato de embalagem)
Potência / tensão220V 50Hz
Garantia1 ano
Tempo de execução10 dias
MOQ1 unidade
Precisão±1%
Cabeças de enchimento1, Medidor Rotary Cup
AutomaçãoAutomático
Dimensões da máquina (L × W × H)650*1050*1950mm
Peso da máquina (kg)250

Visão Geral do Produto

HCB4-320C1-Z3D usa dose de copo rotativo para embalagem de saqueta granular.

Working process

From product feeding to the next production step.

  1. Film is formed into a bag on HCB4-320C1-Z3D.
  2. Rotary cups dose granules into the sachet.
  3. The bag is sealed and cut.
  4. Finished packs discharge for cartoning.

Product details

View detail photos and dimensions (6)

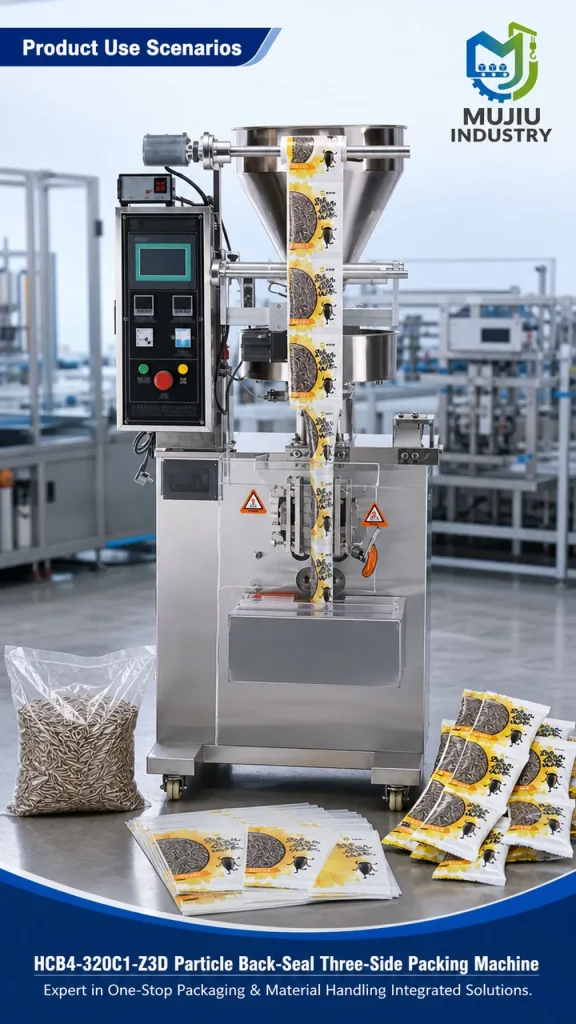

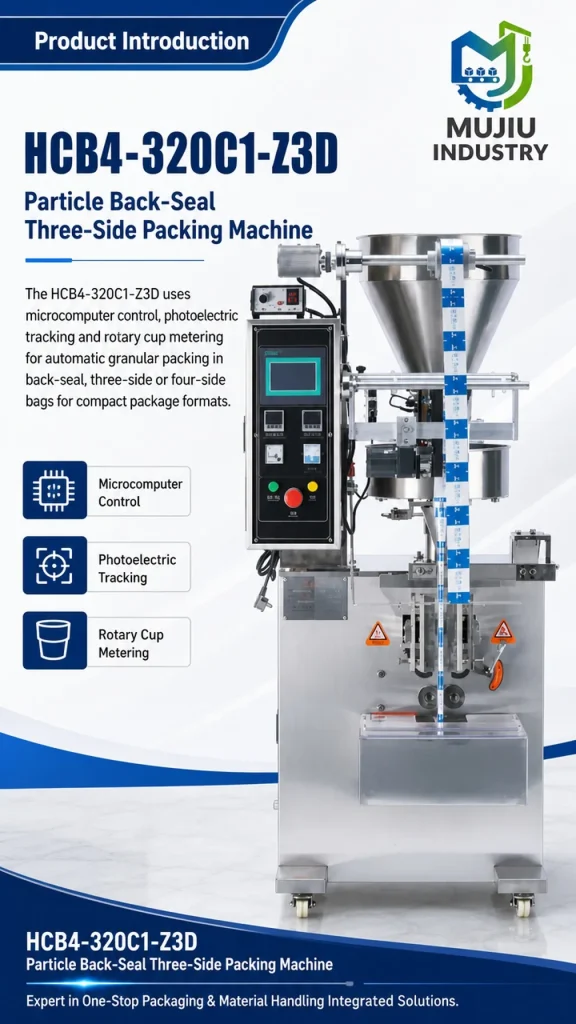

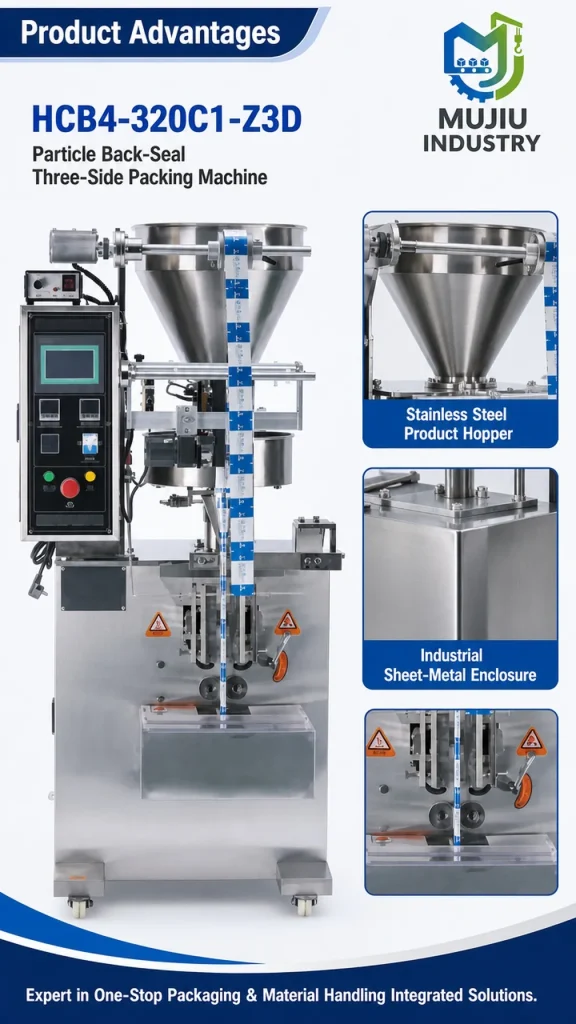

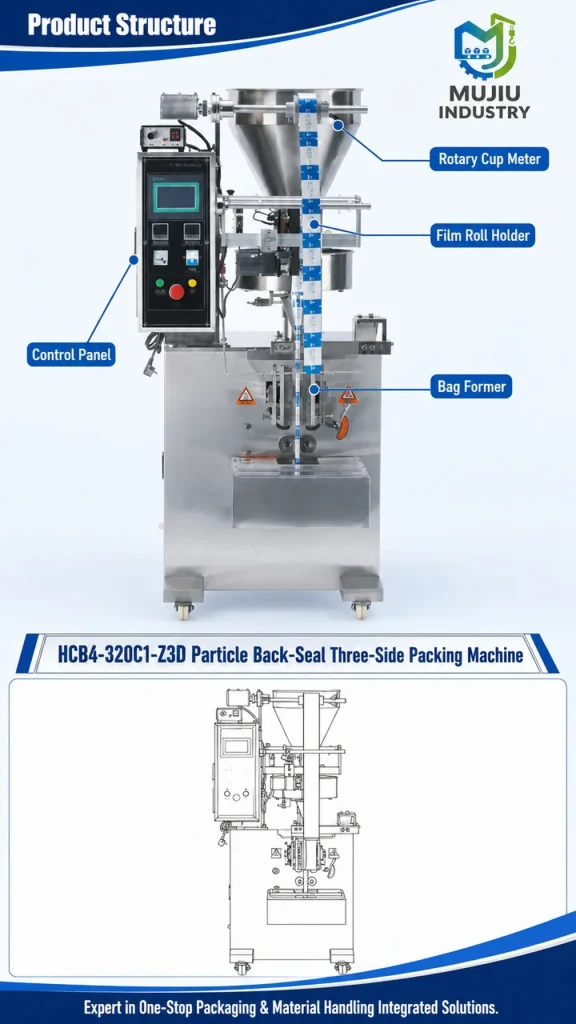

MUJIU HCB4-320C1-Z3D Automatic Particle Back-Seal Three-Side Packing Machine Rotary Cup Filling Bagging Machine - Detail image 1
MUJIU HCB4-320C1-Z3D Automatic Particle Back-Seal Three-Side Packing Machine Rotary Cup Filling Bagging Machine - Detail image 2
MUJIU HCB4-320C1-Z3D Automatic Particle Back-Seal Three-Side Packing Machine Rotary Cup Filling Bagging Machine - Detail image 3
MUJIU HCB4-320C1-Z3D Automatic Particle Back-Seal Three-Side Packing Machine Rotary Cup Filling Bagging Machine - Detail image 4
MUJIU HCB4-320C1-Z3D Automatic Particle Back-Seal Three-Side Packing Machine Rotary Cup Filling Bagging Machine - Detail image 5
MUJIU HCB4-320C1-Z3D Automatic Particle Back-Seal Three-Side Packing Machine Rotary Cup Filling Bagging Machine - Detail image 6

Perguntas frequentes

Perguntas antes de escolher uma configuração

Share the details below and we will use them to prepare a focused recommendation.

What products is HCB4-320C1-Z3D intended for?

HCB4-320C1-Z3D is intended for Free-flowing granules suited to cup dosing or multi-head weighing; confirm piece size and dusting.. Final fit still depends on flow behavior, dose size and film/package format — send a sample or specs if the product is oily, sticky or fragile.

What package format does HCB4-320C1-Z3D run?

Package formats: Back seal, 3-side seal, 4-side seal. Change parts may be required for a different bag style or cut shape.

What should we prepare before requesting a quotation for HCB4-320C1-Z3D?

Share target dose, bags per minute, film width/material, and whether you need date coding or hole punching. That is enough to confirm the working configuration for your target output.
