ModellHCB4-320B-Z2

HCB4-320B-Z2 Granula Sachet Packmaschine — VFFS Sachet

Konfigurationsempfehlung erhalten →

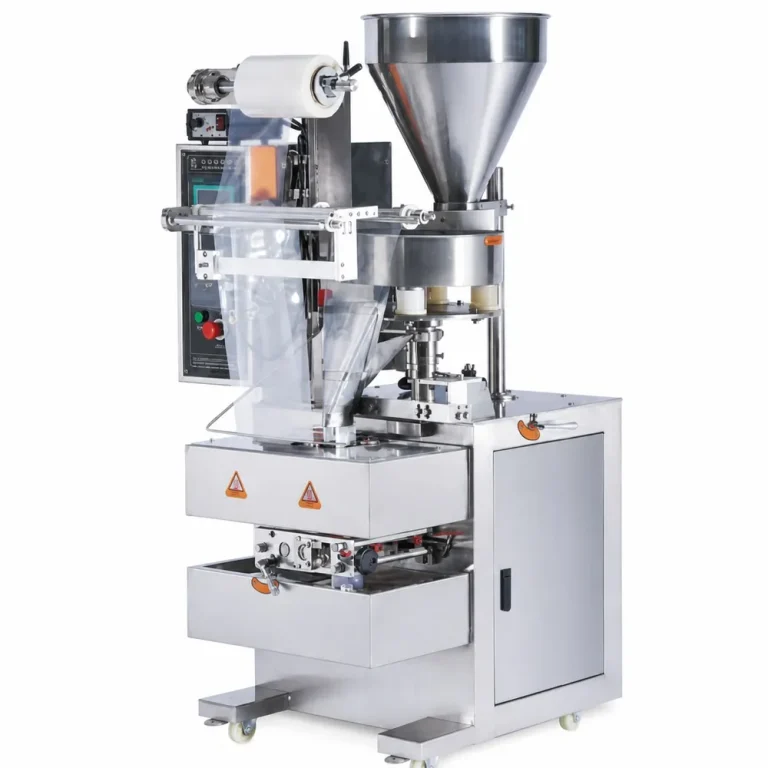

MUJIU HCB4-320B-Z2 Automatic Particle Four-Side Sealing Packing Machine Rotary Cup Dosing Sachet Filling Machine - Main image 1

HCB4-320B-Z2 verwendet volumetrische Tassendosierung für körnige Produkte in Vier-Seiten-Siegelbeuteln.

Material
Fließfähiges Granulat, geeignet für Becherdosierung oder Mehrkopfwiegen; Stückgröße und Staubbildung bestätigen.
Behälter
4-side Robben, Sachet
Leistung
Up to 100 bags/min (by product, dose and pack format)
Stromversorgung
220V 50Hz
Mindestbestellmenge
1 unit
Lieferzeit
10 Tage
Garantie
1 Jahr
Konfigurationsempfehlung erhalten View Specifications →

Share material, package format and target output to confirm configuration.

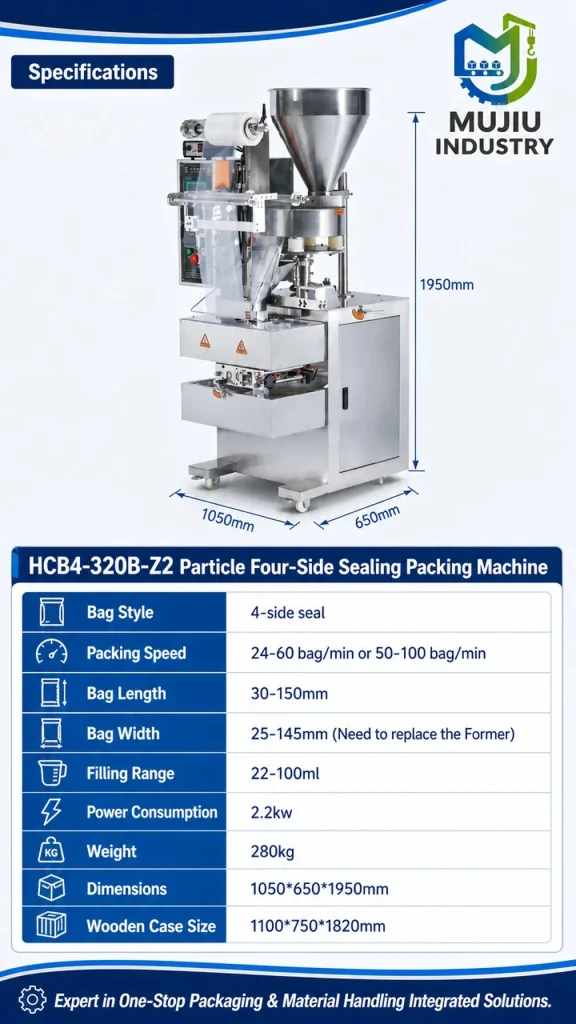

Technische Spezifikationen

MaterialFließfähiges Granulat, geeignet zur Becherdosierung oder zum Wiegen mit mehreren Köpfen
Verpackungsformat/Container4-side Robben, Sachet
Füll-/Wägebereich22-100ml
Drehzahlbis zu 100 Beutel/Minute (nach Produkt, Dosis und Packungsformat)
Leistung/Spannung220V 50Hz
Garantie1 Jahr
Vorlaufzeit10 Tage
MOQ1 Einheit
Genauigkeit±1%
FüllköpfeRotary Volumetric Cup, 1
AutomatisierungAutomatik
Abmessungen der Maschine (L × W × H)1050*650*1950mm
Maschinengewicht (kg)280

Produktübersicht

HCB4-320B-Z2 verwendet volumetrische Tassendosierung für körnige Produkte in Vier-Seiten-Siegelbeuteln.

Working process

From product feeding to the next production step.

  1. Film is formed into a bag on HCB4-320B-Z2.
  2. Volumetric cups dose granules into four-side-seal sachets.
  3. The bag is sealed and cut.
  4. Finished packs discharge for cartoning.

Product details

View detail photos and dimensions (6)

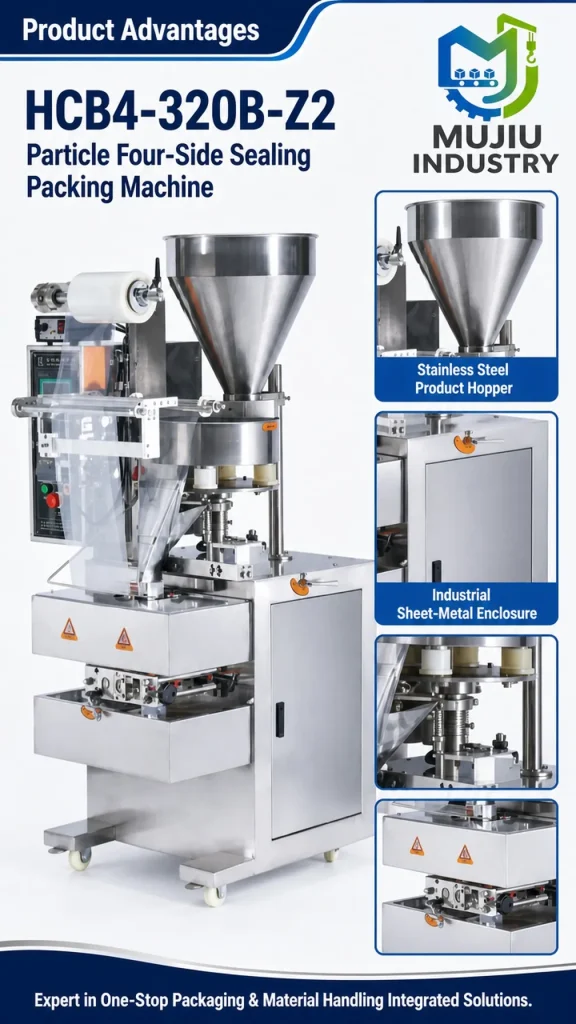

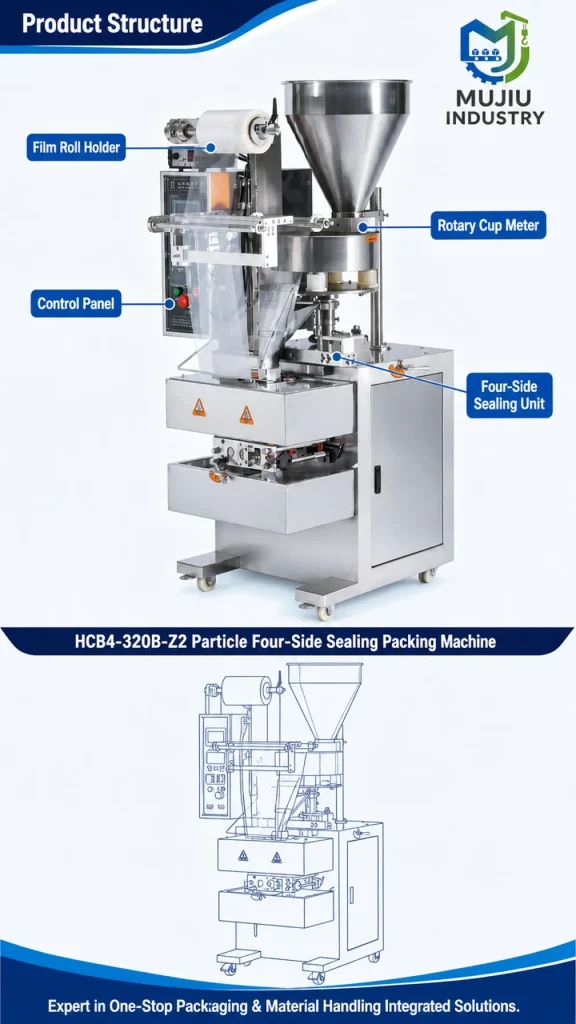

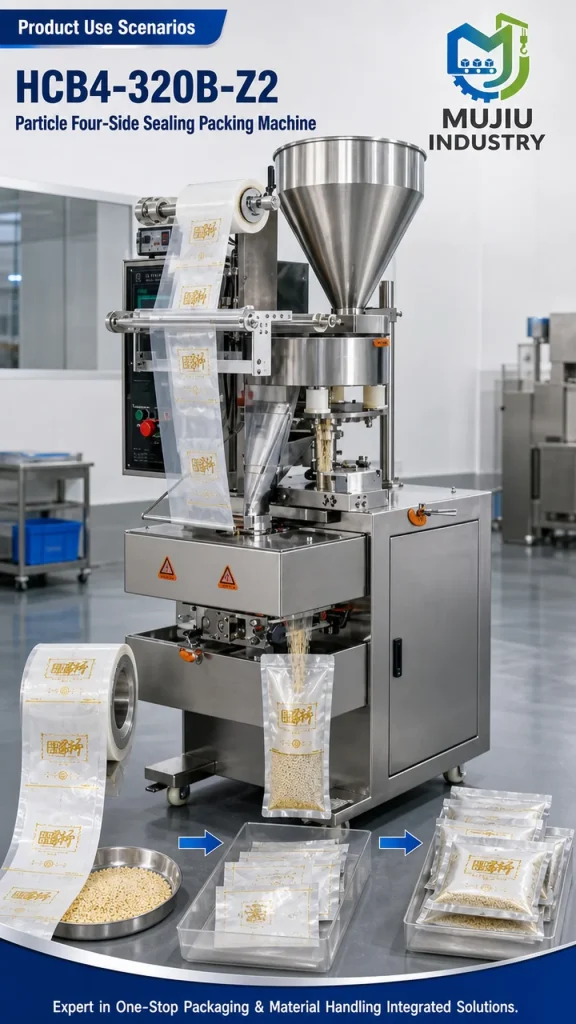

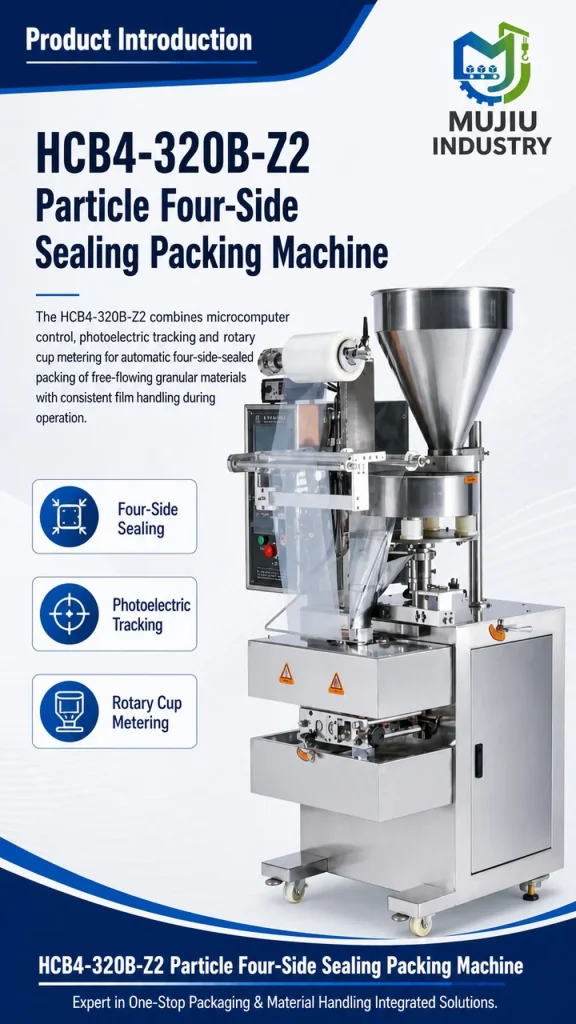

MUJIU HCB4-320B-Z2 Automatic Particle Four-Side Sealing Packing Machine Rotary Cup Dosing Sachet Filling Machine - Detail image 1
MUJIU HCB4-320B-Z2 Automatic Particle Four-Side Sealing Packing Machine Rotary Cup Dosing Sachet Filling Machine - Detail image 2
MUJIU HCB4-320B-Z2 Automatic Particle Four-Side Sealing Packing Machine Rotary Cup Dosing Sachet Filling Machine - Detail image 3
MUJIU HCB4-320B-Z2 Automatic Particle Four-Side Sealing Packing Machine Rotary Cup Dosing Sachet Filling Machine - Detail image 4
MUJIU HCB4-320B-Z2 Automatic Particle Four-Side Sealing Packing Machine Rotary Cup Dosing Sachet Filling Machine - Detail image 5
MUJIU HCB4-320B-Z2 Automatic Particle Four-Side Sealing Packing Machine Rotary Cup Dosing Sachet Filling Machine - Detail image 6

FAQ

Fragen vor der Auswahl einer Konfiguration

Share the details below and we will use them to prepare a focused recommendation.

What products is HCB4-320B-Z2 intended for?

HCB4-320B-Z2 is intended for Free-flowing granules suited to cup dosing or multi-head weighing; confirm piece size and dusting.. Final fit still depends on flow behavior, dose size and film/package format — send a sample or specs if the product is oily, sticky or fragile.

What package format does HCB4-320B-Z2 run?

Package formats: 4-side seal, Sachet. Change parts may be required for a different bag style or cut shape.

What should we prepare before requesting a quotation for HCB4-320B-Z2?

Share target dose, bags per minute, film width/material, and whether you need date coding or hole punching. That is enough to confirm the working configuration for your target output.
