ModellHCB4-320AT-L1/L2/L3

HCB4-320AT-L1/L2/L3 Pulverbeutelverpackungsmaschine — Auger

Konfigurationsempfehlung erhalten →

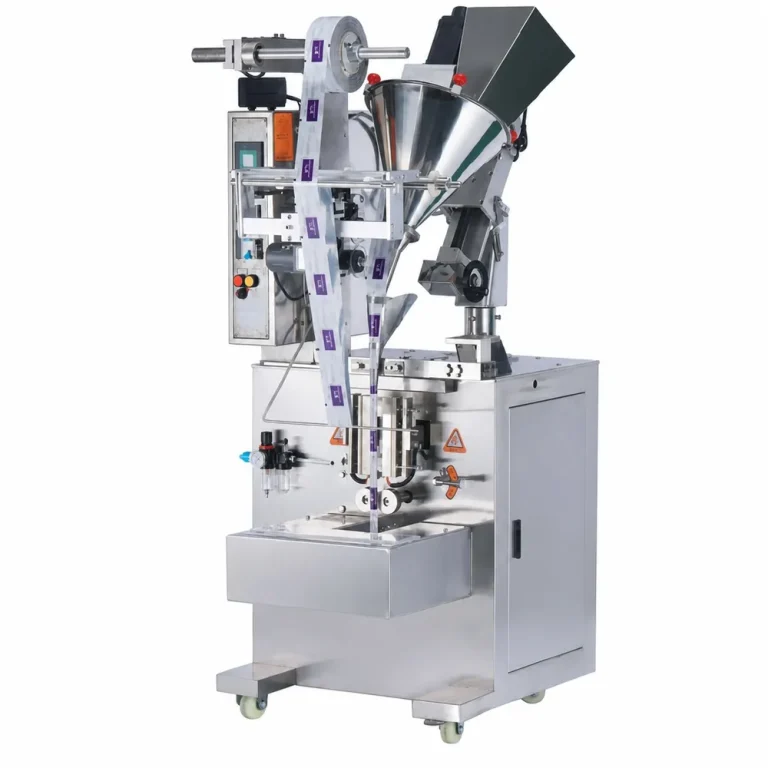

MUJIU HCB4-320AT-L1/L2/L3 Powder Screw Back-Seal Three-Side Packing Machine Automatic Small Sachet Filling Machine - Main image 1

Die HCB4-320AT L1/L2/L3 Serie verwendet Schneckendosierung für Pulverbeutelverpackung. Füll-/Wägebereich: 0.5-60ml.

Material
Frei fließende Pulver geeignet für Schnecken-VFFS; bestätigen Sie Dichte, Ölgehalt und Staub vor der Bestellung.
Behälter
Rückendichtung, 3-side Dichtung, 4-side Dichtung
Leistung
24–60 bags/min (by product, dose and pack format)
Stromversorgung
220V 50Hz
Mindestbestellmenge
1 unit
Lieferzeit
10 Tage
Garantie
1 Jahr
Konfigurationsempfehlung erhalten View Specifications →

Share material, package format and target output to confirm configuration.

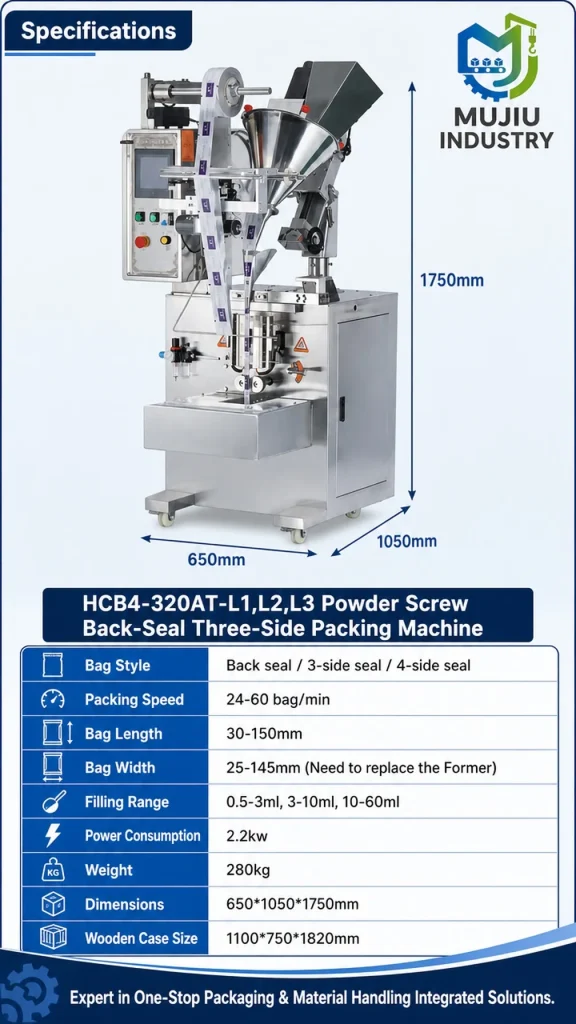

Technische Spezifikationen

MaterialFließfähiges Pulver für Schnecken-VFFS
Verpackungsformat/ContainerRückendichtung, 3-side Dichtung, 4-side Dichtung
Füll-/Wägebereich0.5-60ml
Drehzahl24–60 Beutel/Minute (nach Produkt, Dosis und Packungsformat)
Leistung/Spannung220V 50Hz
Garantie1 Jahr
Vorlaufzeit10 Tage
MOQ1 Einheit
Genauigkeit±1%
Füllköpfe1Augendosierung Hopper
AutomatisierungAutomatik
Abmessungen der Maschine (L × W × H)650*1050*1750mm
Maschinengewicht (kg)280

Produktübersicht

Die HCB4-320AT L1/L2/L3 Serie verwendet Schneckendosierung für Pulverbeutelverpackung.

Working process

From product feeding to the next production step.

  1. Film is formed into a bag on HCB4-320AT-L1/L2/L3.
  2. An auger meters powder into the formed bag.
  3. The bag is sealed and cut to length.
  4. Finished sachets discharge for packing.

Product details

View detail photos and dimensions (6)

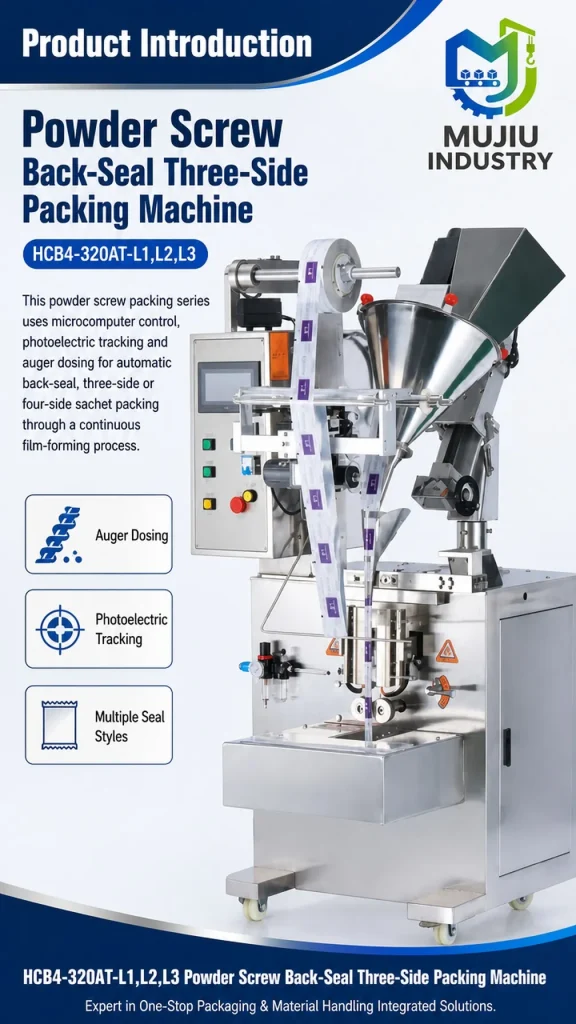

MUJIU HCB4-320AT-L1/L2/L3 Powder Screw Back-Seal Three-Side Packing Machine Automatic Small Sachet Filling Machine - Detail image 1
MUJIU HCB4-320AT-L1/L2/L3 Powder Screw Back-Seal Three-Side Packing Machine Automatic Small Sachet Filling Machine - Detail image 2

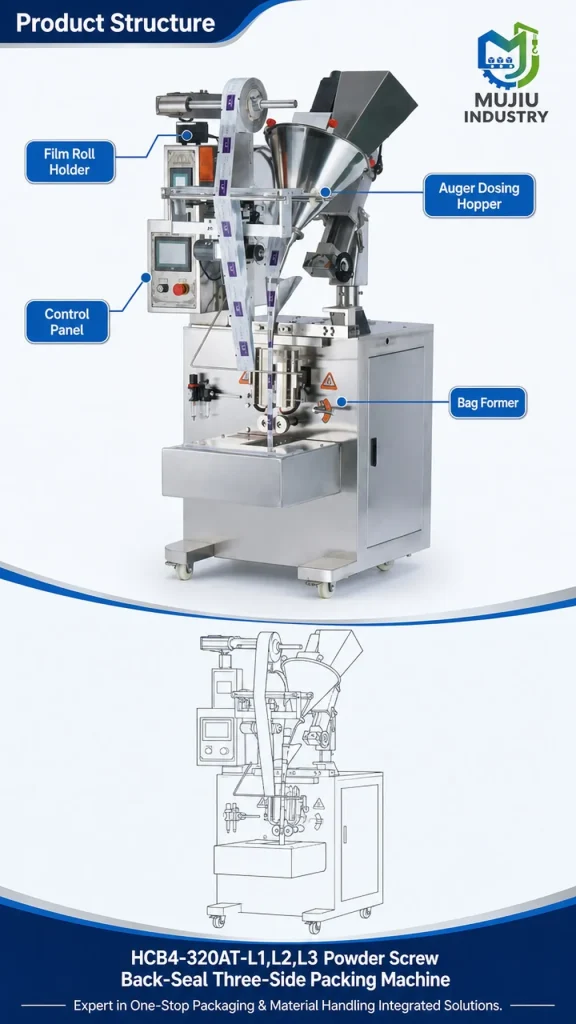

MUJIU HCB4-320AT-L1/L2/L3 Powder Screw Back-Seal Three-Side Packing Machine Automatic Small Sachet Filling Machine - Detail image 3

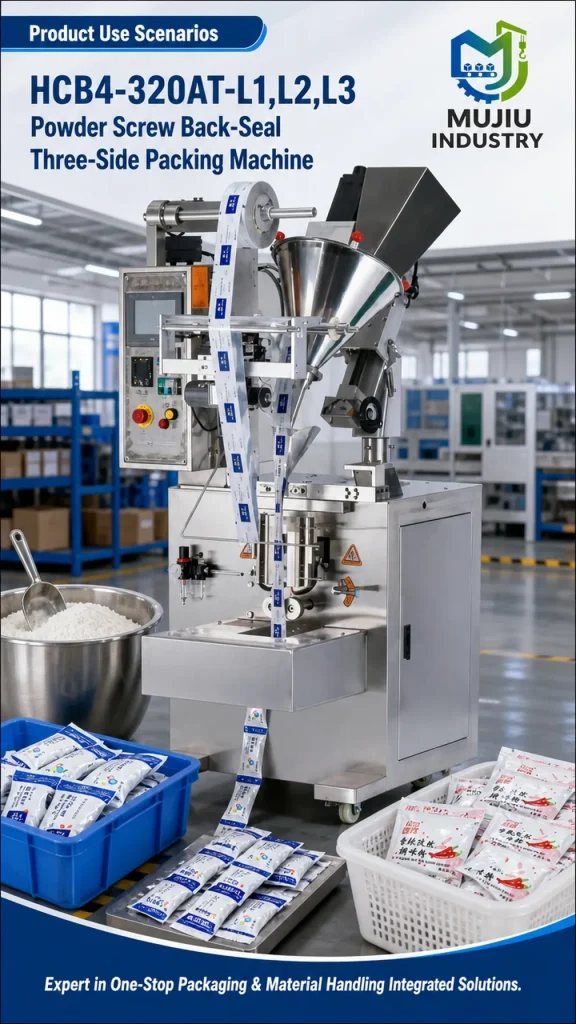

MUJIU HCB4-320AT-L1/L2/L3 Powder Screw Back-Seal Three-Side Packing Machine Automatic Small Sachet Filling Machine - Detail image 4

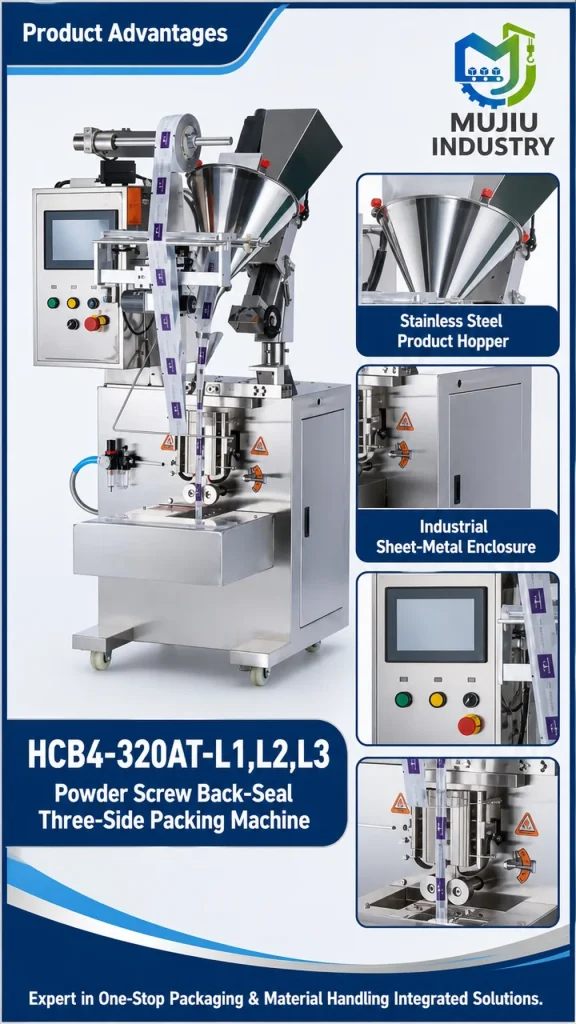

MUJIU HCB4-320AT-L1/L2/L3 Powder Screw Back-Seal Three-Side Packing Machine Automatic Small Sachet Filling Machine - Detail image 5
MUJIU HCB4-320AT-L1/L2/L3 Powder Screw Back-Seal Three-Side Packing Machine Automatic Small Sachet Filling Machine - Detail image 6

FAQ

Fragen vor der Auswahl einer Konfiguration

Share the details below and we will use them to prepare a focused recommendation.

What can be customized?

Send the changes you need together with your product, package and site power details. We will prepare a configuration proposal for this model.

What should I send?

Powder name, density, target weight, film/bag style, packs/min, destination voltage.

Is pouch forming included?

Yes on this VFFS model.
