ModellHCB3-320S

HCB3-320S Sachet Pack Machine — VFFS Sachet

Konfigurationsempfehlung erhalten →

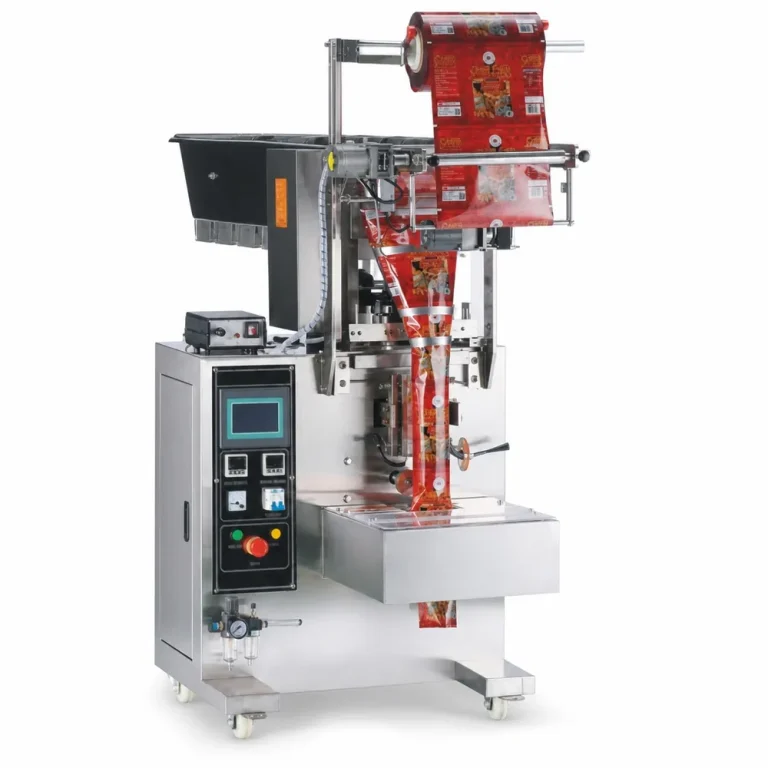

MUJIU HCB3-320S High-Speed Bucket-Type Vertical Packing Machine Automatic Back-Seal Sachet Packing Machine for Snacks - Main image 1

HCB3-320S ist eine vertikale Beutelverpackungsmaschine mit Ketteneimer für geeignete kleine Feststoffe und körnige Produkte.

Material
Feste Kleinteile und Granulate
Behälter
Kissenbeutel, Back-Seal Bag
Leistung
Up to 110 bags/min (by product, dose and pack format)
Stromversorgung
220V 50Hz
Mindestbestellmenge
1 unit
Lieferzeit
10 Tage
Garantie
1 Jahr
Konfigurationsempfehlung erhalten View Specifications →

Share material, package format and target output to confirm configuration.

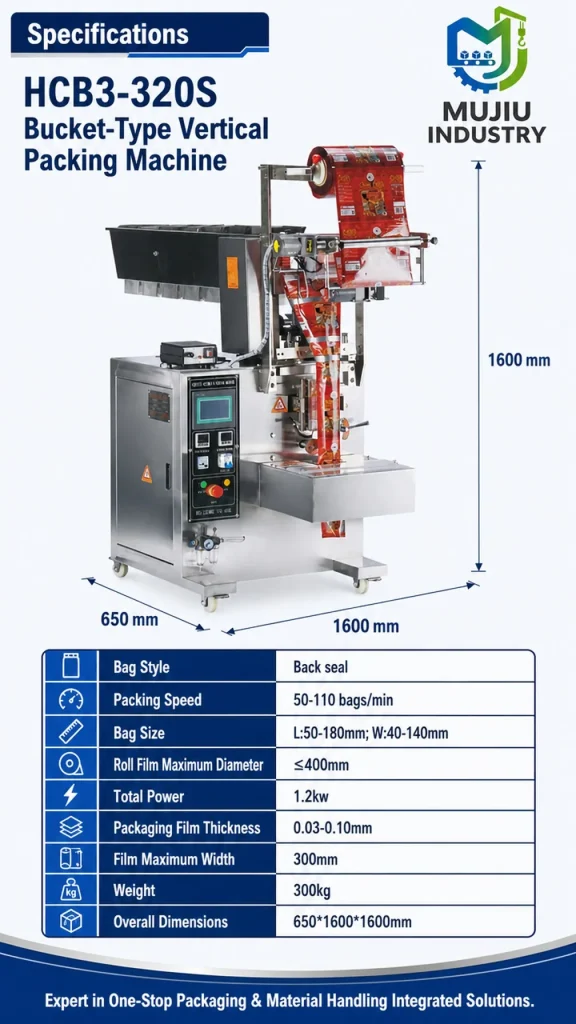

Technische Spezifikationen

MaterialFeste Kleinteile und Granulate
Verpackungsformat/ContainerKissenbeutel, Back-Seal Bag
Drehzahlbis zu 110 Beutel/Minute (nach Produkt, Dosis und Packungsformat)
Leistung/Spannung220V 50Hz
Garantie1 Jahr
Vorlaufzeit10 Tage
MOQ1 Einheit
Genauigkeit±1%
FüllköpfeBecherförderer, 1
AutomatisierungAutomatik
Abmessungen der Maschine (L × W × H)650*1600*1600mm
Maschinengewicht (kg)300

Produktübersicht

HCB3-320S ist eine vertikale Beutelverpackungsmaschine mit Ketteneimer für geeignete kleine Feststoffe und körnige Produkte.

Working process

From product feeding to the next production step.

  1. Load product into the HCB3-320S chain buckets.
  2. The buckets transfer portions to the film-forming section.
  3. Fill, seal and cut the sachets.
  4. Discharge the finished sachets.

Product details

View detail photos and dimensions (6)

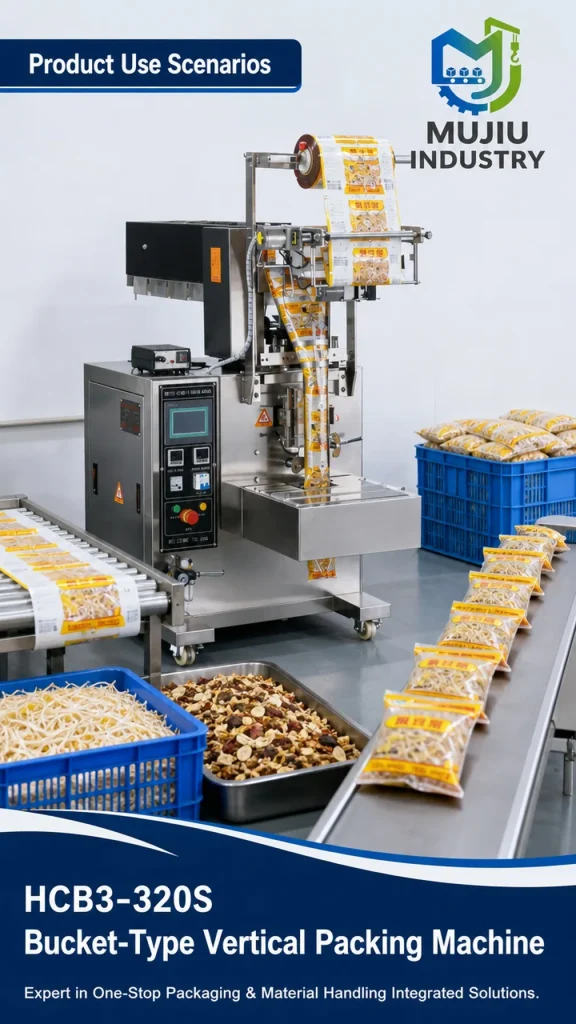

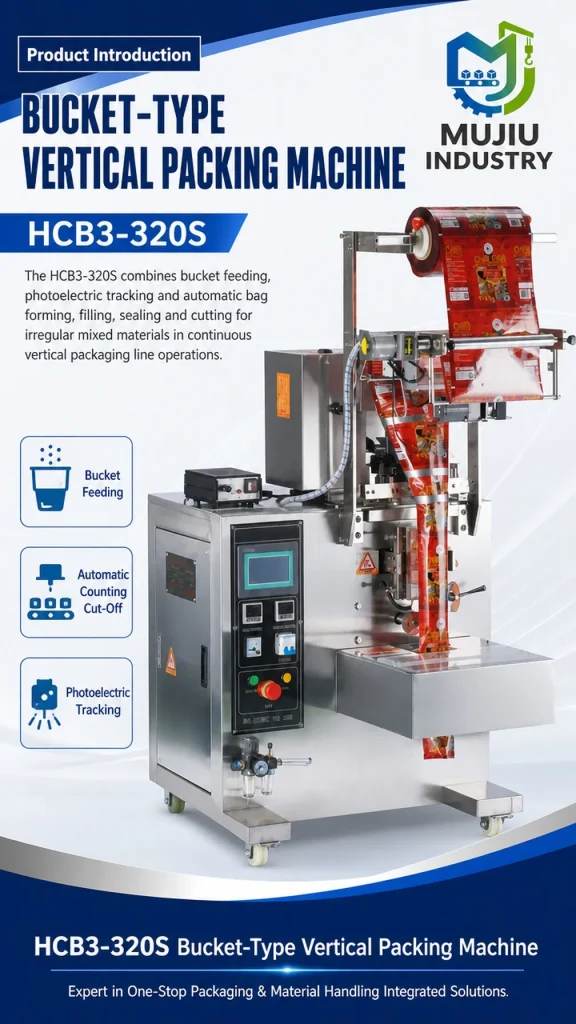

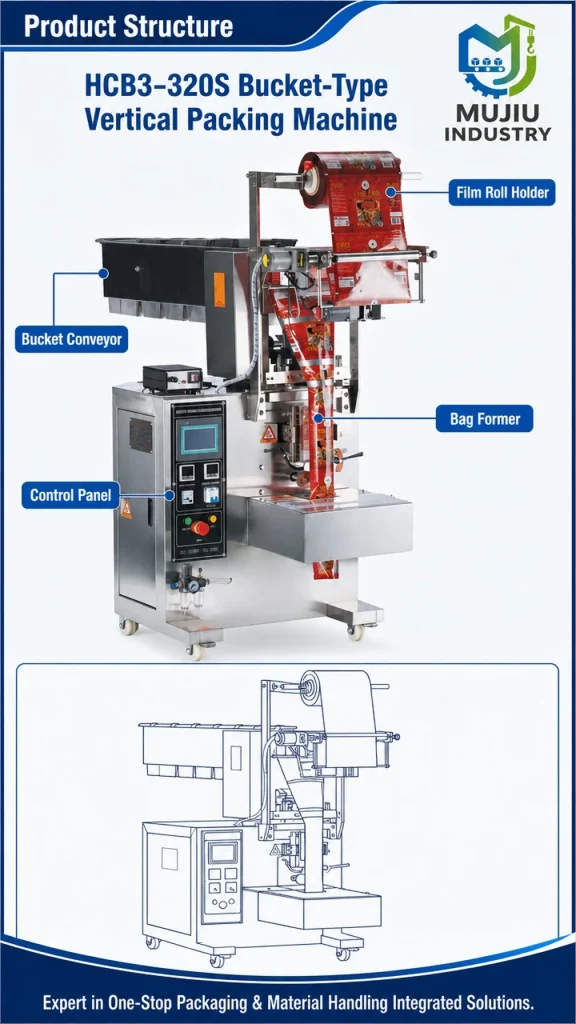

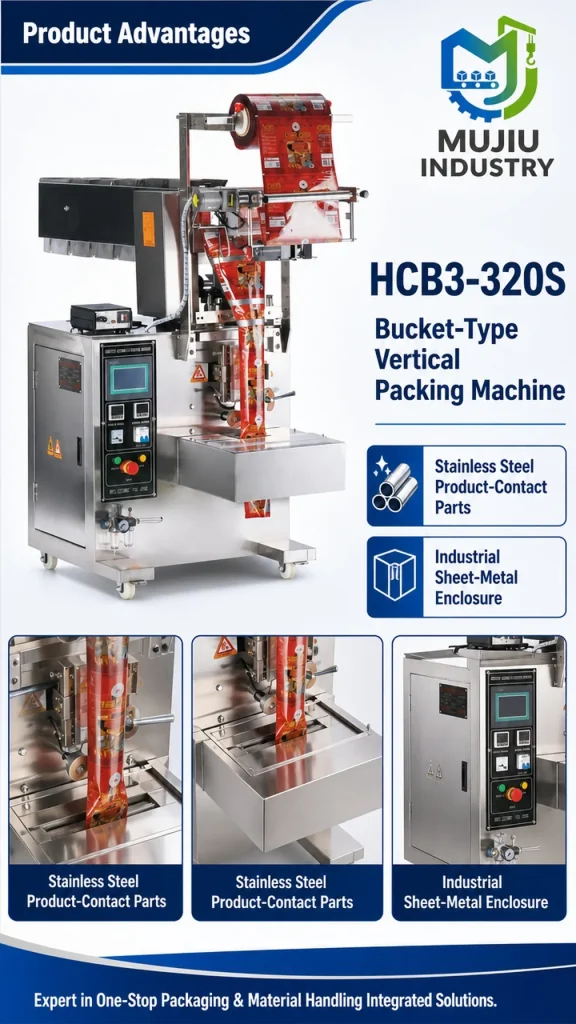

MUJIU HCB3-320S High-Speed Bucket-Type Vertical Packing Machine Automatic Back-Seal Sachet Packing Machine for Snacks - Detail image 1
MUJIU HCB3-320S High-Speed Bucket-Type Vertical Packing Machine Automatic Back-Seal Sachet Packing Machine for Snacks - Detail image 2
MUJIU HCB3-320S High-Speed Bucket-Type Vertical Packing Machine Automatic Back-Seal Sachet Packing Machine for Snacks - Detail image 3
MUJIU HCB3-320S High-Speed Bucket-Type Vertical Packing Machine Automatic Back-Seal Sachet Packing Machine for Snacks - Detail image 4
MUJIU HCB3-320S High-Speed Bucket-Type Vertical Packing Machine Automatic Back-Seal Sachet Packing Machine for Snacks - Detail image 5
MUJIU HCB3-320S High-Speed Bucket-Type Vertical Packing Machine Automatic Back-Seal Sachet Packing Machine for Snacks - Detail image 6

FAQ

Fragen vor der Auswahl einer Konfiguration

Share the details below and we will use them to prepare a focused recommendation.

What bag styles can be customized?

Send the changes you need together with your product, package and site power details. We will prepare a configuration proposal for this model.

What should I send for a quote?

Product viscosity, target fill, film/bag style, target packs/min, and destination voltage.
